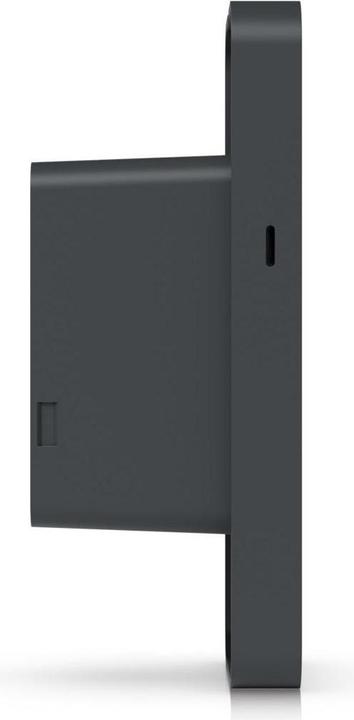

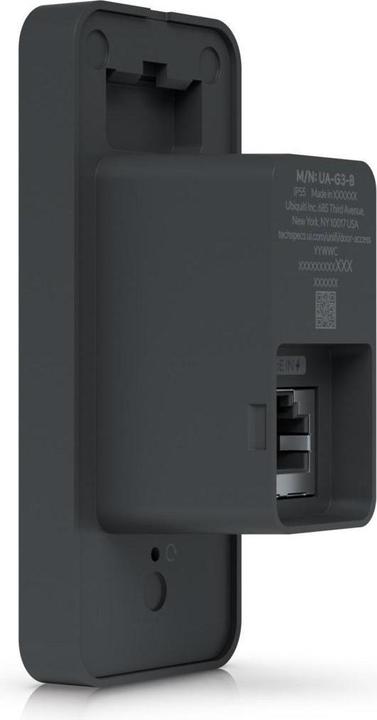

Ubiquiti UA-G3-B - G3 reader

G3 Reader - Compact third generation access reader with Apple Touch Pass support.

Overview

• Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
• NFC card and keyfob access: Yes
• Touch Pass: Yes
• Mobile unlocking: Yes
• Handwave request to exit: Yes
• Weatherproof: IP55

Mechanical

• Weight: 82 g (2.9 oz)
• Housing material: Polycarbonate, glass
• Mounting material: Aluminium alloy
• Mounting: Flush-mounted, flush-mounted box (included); junction box (optional)

Hardware

• Indoor and outdoor use: Yes
• Operating temperature: -30 to 45 °C
• Humidity: 5 to 90 % non-condensing
• Network interface: (1) 10/100 MbE RJ45 port
• Connectivity: BLE 4.1; NFC
• Power supply method: PoE; UL 294 power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Max. power consumption: 5 W
• Supported voltage range: 48V DC
• ESD/EMP protection: air: ±15kV, contact: ±8kV
• Sensors: Proximity sensor
• Speaker: Yes
• LEDs: R/G/B/W
• Button: (1) Factory reset
• NFC frequency: 13.56 MHz
• NFC read range: less than 30 mm (1.18")
• NFC technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340); MIFARE Classic / MIFARE DESFIRE; Sony FeliCa™ (ID only); NFC Forum Tags T1T, T2T, T3T, T4T and T5T; ECP 2.0
• PoE cabling requirements: Cat 5e cabling is recommended as the minimum power category. The power category used should match the transmission speed required at the installation site. The minimum allowable conductor cross-section for the connection between the PSE or power injector and the PD is 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cables.
• UL 294 Level: Destructive attack: Level I; Line safety: Level I; Durability: Level I; Standby power: Level I
• UL 294 explanation: Compliance with IEEE 802.3 specifications has not been verified under UL 294. The device shall comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power sources for Class 2 and Class 3.
