Ubiquiti U7 In-Wall

4300 Mbit/s
Ratings
tonight with flash delivery
to check if flash delivery is available to you.

Product details

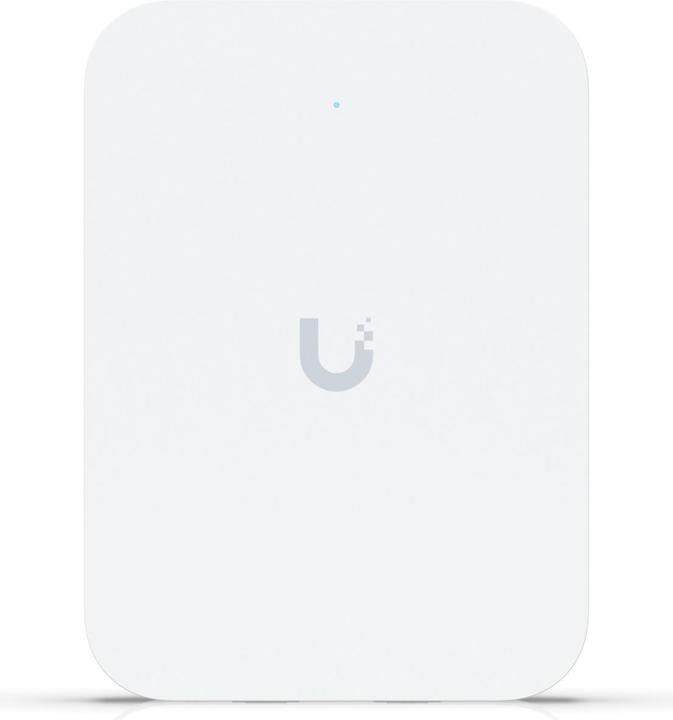

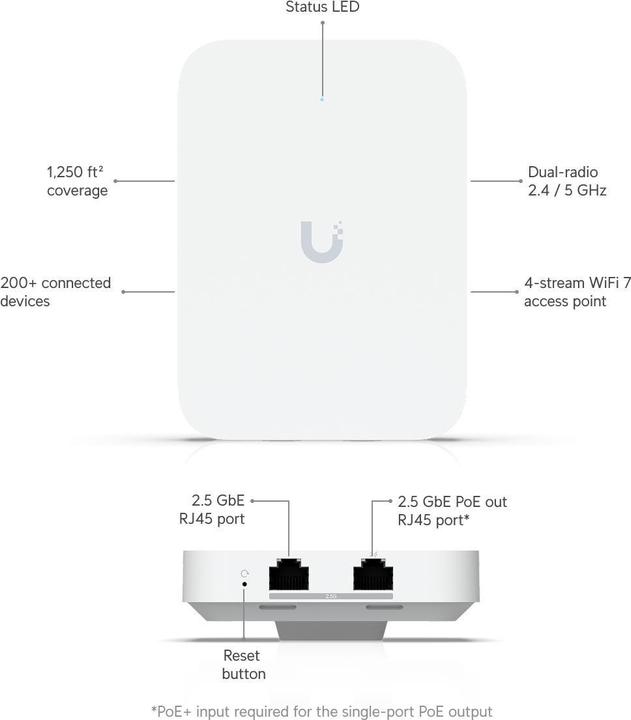

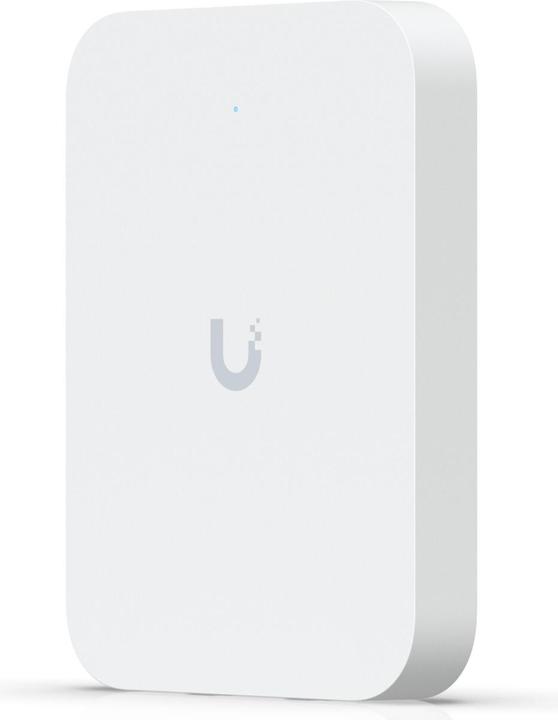

The Ubiquiti UniFi U7-IW is a powerful access point designed specifically for wall mounting. With support for Wi-Fi 7 (802.11be), it offers an impressive maximum data transfer rate of up to 4300 Mbit/s. The access point operates in dual-band mode, allowing for seamless connectivity over the 2.4 GHz and 5 GHz frequencies. Thanks to Multi-User MIMO technology and four spatial streams, the U7-IW can serve a high number of users simultaneously, making it ideal for high-traffic environments. The support for Power over Ethernet (PoE) simplifies installation, as no separate power supply is required. With coverage of up to 115 m², the U7-IW is excellent for use in offices, schools, or other indoor spaces where a reliable and fast Wi-Fi connection is needed.

  • Maximum data transfer rate of 4300 Mbit/s
  • Supports up to 200 simultaneous users
  • Multi-User MIMO with 4 spatial streams

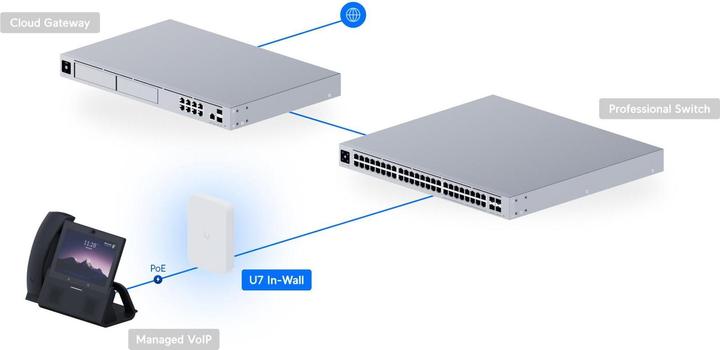

  • Power over Ethernet (PoE) for easy installation
  • VLAN support and fast roaming for improved network management.

Key specifications

Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be
Wi-Fi frequency band
Dual band
PoE Standard
802.3at (PoE+)
Operating modes
Access point
Area of application
Business, Indoor

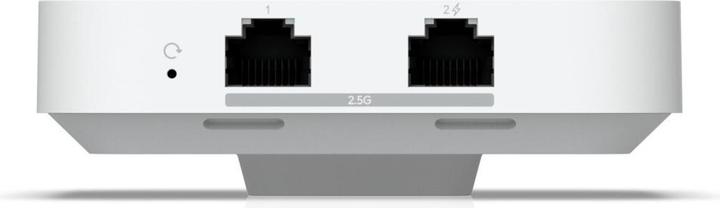

Number of RJ45/LAN ports
3
Max. port speed
2500 Mbit/s
Item number
55802982

General information

Manufacturer
Ubiquiti
Category
Access points
Manufacturer no.
U7-IW
Release date
18.3.2025
Sales rank in Category Access points
15 of 1504

Access point properties

Operating modes
Access point
Max. number of clients
200 x
Number of antennas
4 x
Antenna gain
8 dB
Long range coverage
0.12 km
Number of RJ45/LAN ports
3
Max. port speed
2500 Mbit/s
Access Point Functions
Guest access, Mesh capable, PoE capable, Seamless roaming

Wi-Fi standard

Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be
5 GHz transfer rate
4300 Mbit/s
2.4 GHz transfer rate
688 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK

Application range

Area of application
Business, Indoor

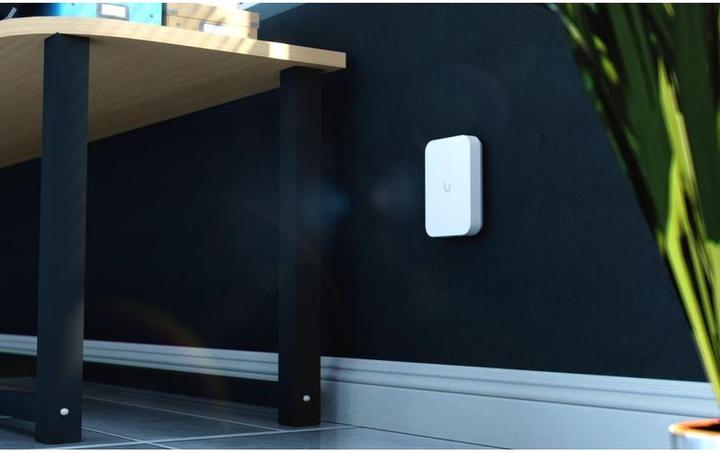

Installation place
Wall

Power supply

Power supply
PoE
PoE Standard
802.3at (PoE+)
Power consumption
13 W

Origin

Country of origin
Vietnam

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

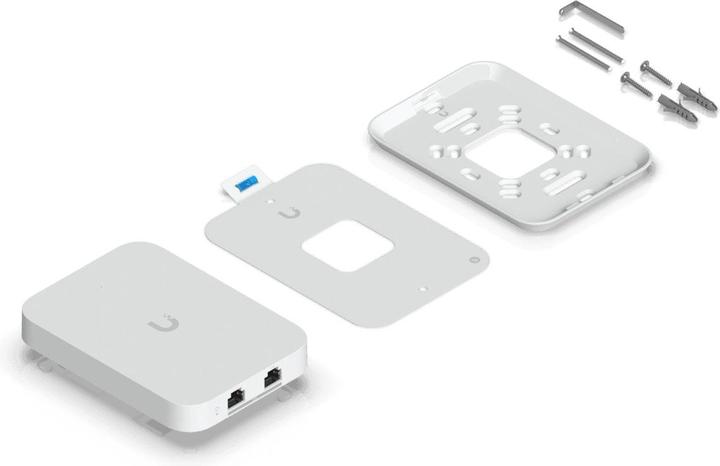

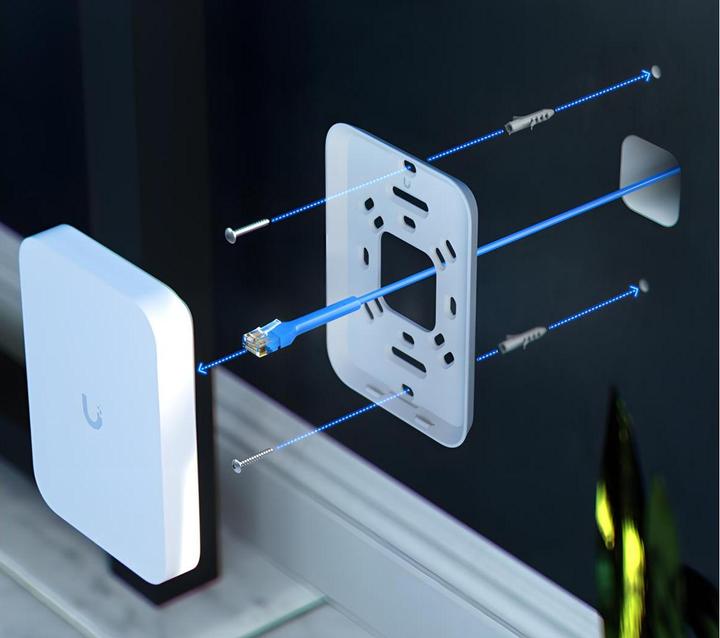

Wall bracket included in the scope of delivery

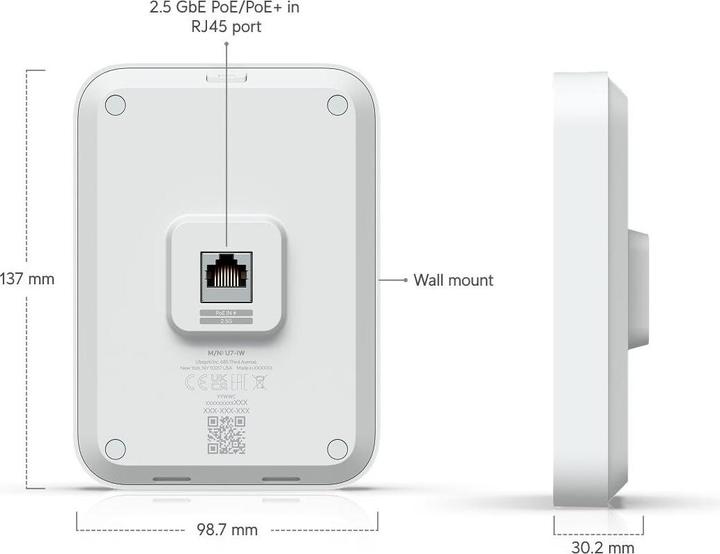

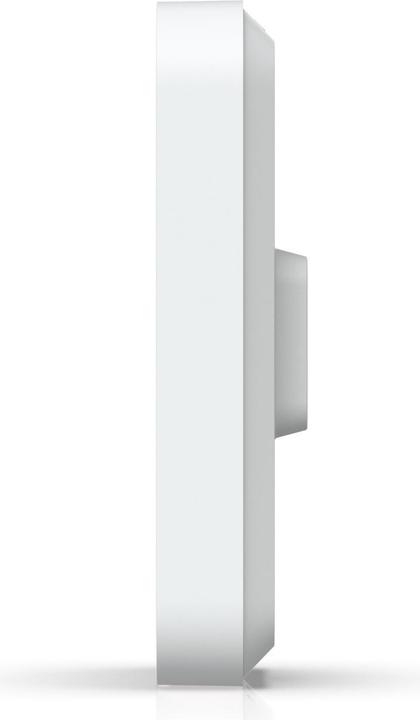

Product dimensions

Length
3.02 cm
Width
9.87 cm
Height
13.70 cm
Weight
400 g

Package dimensions

Length
20 cm
Width
15 cm
Height
7 cm
Weight
564 g
