Ubiquiti U-Cable-C6-CMP - UniFi Cable Cat. 6 CMP Rating, 305 m

U-Cable-C6-CMP - UniFi Cable Cat. 6 CMP Class, 305 m

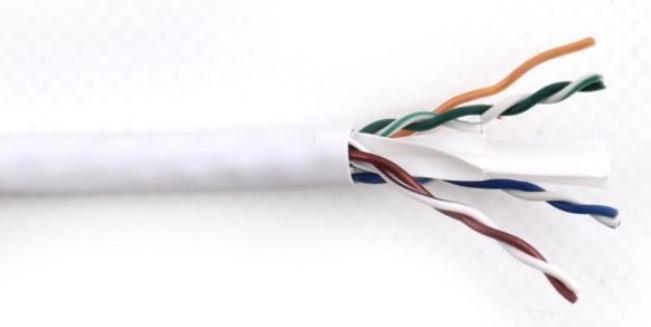

The U-Cable-C6-CMP is a Category 6 UTP cable that supports speeds of up to 1 Gbit/s with its twisted pair conductor made of solid copper with 23 AWG. The small diameter of the conductor, combined with the cable's crosstalk divider, isolates and protects signals from interference. The U-Cable-C6 is also a CMP cable with a fire-resistant jacket that ensures complete fire protection. This is particularly important in air-handling spaces where air circulates to facilitate the building's HVAC system. Category 6 Ethernet connectors are recommended to accommodate the conductor size and optimize its performance.

• Box dimensions: 474 x 346 x 458 mm
• Box weight: 14.75 kg
• Cable length: 305 m
• Cable color: White
• Cable type: Category 6
• Shielding type: UTP
• Flame rating: CMP
• Conductor wire gauge: 23 AWG
• Conductor type: Solid bare copper
• Jacket material: Low smoke flame-retardant PVC
• Jacket diameter: 5.6 +/-0.2 mm
• Bend radius: min. 22.4 mm
• Tensile strength: max. 110 N
• Storage temperature: -20°C to 75°C
• Installation temperature: 0°C to 60°C
• Operating temperature: -20°C to 60°C
• Anti-crosstalk divider: Yes
• Rip cord: Yes
• Data rate: 10/100/1000 Base-T
• Reference bandwidth: Up to 600 MHz

Standards

• Electrical transmission: ANSI/TIA-568-C.2 (2009); ISO/IEC 11801 (Edition 2.2); IEC 61156-5 (Edition 2.1)
• Flame test: NFPA 262 (CMP)
• Material and construction: UL 444; CSA 22.2 NO.214; EU Directive 2011/65/EU (RoHS2); EU Directive 2006/95/EC (LVD).
