Product details
Turck Opto Sensor Q20PDQ5
Manufacturer: Turck
Description: Opto Sensor Light Switch
Type: Q20PDQ5
Sensing Range: 250 mm
Max. Switching Distance: 250 mm
Electrical Connection Type: M12 Connector
Switch Output Type: PNP
Switch Function Type: Changeover (NO/NC)

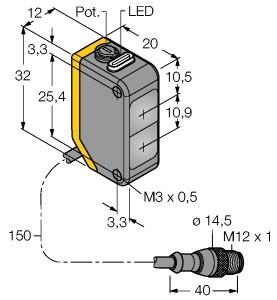

Housing Design: Rectangular
Sensor Width: 12 mm
Sensor Diameter: 0 mm
Sensor Height: 32 mm
Sensor Length: 20 mm
Material of Optical Surface: Plastic
Material of Housing: Plastic
Min. Reflector Distance: 1 mm
Response Time: 0.8 ms
Switching Frequency: 600 Hz
Sensor Wavelength: 655 nm
Light Type: Unpolarized Red Light
Cable Jacket Material: Polyvinyl Chloride (PVC)
Suitable for Safety Functions: No
Protection Class (IP): IP67
Ambient Temperature: -20..60 °C
Additional Details: Opto-sensor, reflective light switch, cable with connector, PVC, 150 mm, M12 x 1, 4-pole, protection class IP67, operating voltage: 10–30 VDC, PNP switch output, changeover, LED visible all around, sensitivity adjustment via potentiometer, max. range: 250 mm, EAN: 0662488781910.
Pushbutton + switch type | Button |
Item number | 36817323 |
Manufacturer | Turck |
Category | Buttons + Switches |
Manufacturer no. | 3078191 |
Release date | 15.1.2024 |
Pushbutton + switch type | Button |
LED colour | Red |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 150 mm, 4-pole, Cable with connector, Changer, Diffuse reflection light scanner, LED visible all round, M12 x 1, max. reach: 250 mm, Operating voltage: 10 30 VDC, Opto-sensor, PNP switching output, Protection class IP67, PVC, Sensitivity adjustment via potentiometer |
