Product details
Turck Opto Sensor QS30FF200
Manufacturer: Turck
Designation: Opto Sensor Light Switch
Type: QS30FF200
Adjustment Range: 0..200 mm
Sensing Distance: 200 mm
Triangulation: Background Suppression
Rated Switching Distance: 200 mm
Max. Switching Distance: 200 mm
Electrical Connection Type: Cable
Switch Output Type: PNP/NPN
Switch Function Type: Normally Open (NO)

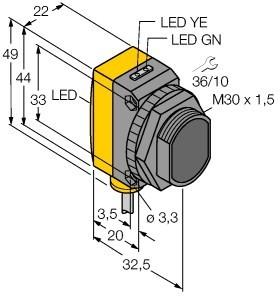

Housing Design: Rectangular
Sensor Width: 22 mm
Sensor Diameter: 30 mm
Sensor Height: 49 mm
Sensor Length: 35 mm
Material of Optical Surface: Plastic
Material of Housing: Plastic
Min. Reflector Distance: 0 mm
Ambient Temperature: -20..70 °C
Response Time: 2 ms
Switching Frequency: 250 Hz
Sensor Wavelength: 680 nm
Light Type: Unpolarized Red Light
Cable Jacket Material: Polyvinyl Chloride (PVC)
Suitable for Safety Functions: No
Protection Class (IP): IP67
Turck Opto Sensor QS30FF200: Additional Details
Opto-sensor, reflective light switch with fixed background suppression, cable, PVC, 2 m, protection class IP67, operating voltage: 10-30 VDC, bipolar switching output, light or dark switching, LED visible all around, max. range: 200 mm.
Pushbutton + switch type | Button |
Item number | 36816263 |
Manufacturer | Turck |
Category | Buttons + Switches |
Manufacturer no. | 3072546 |
Release date | 28.6.2023 |
Pushbutton + switch type | Button |
LED colour | Red |
rank | Push button |
Country of origin | USA |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 2 m, Bipolar switching output, Cable, Diffuse sensor with fixed background suppression, LED visible all round, Light or dark switching, max. reach: 200 mm, Operating voltage: 10 30 VDC, Opto-sensor, Protection class IP67, PVC |
