Turck BIM-INT-Y1X

Turck magnetic field sensor BIM-INT-Y1X

Manufacturer: Turck
Designation: Magnetic field sensor for pneumatic cylinder
Type: BIM-INT-Y1X
Pneumatic cylinder type: BIM-INT-Y1X
Number of semiconductor outputs with signaling function: 1
Type of actuation: Magnet
Type of electrical connection: Cable
Type of switching output: NAMUR

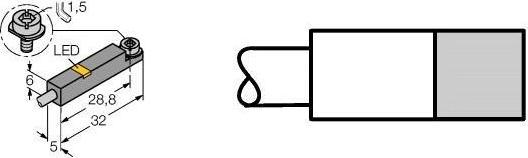

Width of sensor: 5 mm
Height of sensor: 6 mm
Length of sensor: 32 mm
Explosion protection category for gas: ATEX Gas Ex protection, Cat. 1G
Explosion protection category for dust: ATEX Dust Ex protection, Cat. 1D
Housing design: Block
Housing material: Plastic
Coating housing: Uncoated
SIL according to IEC 61508: 2
Performance level according to EN ISO 13849-1: Level c
Ambient temperature: -25 to 70 °C
Rated supply voltage at DC: 8.2 V
Voltage type: DC
Cross/short-circuit detection possible: No
With monitoring function of downstream devices: No
Suitable for safety functions: Yes
Protection class (IP): IP67

Further details: Magnetic field sensor for pneumatic cylinders, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (low demand mode) according to IEC 61508, PL c according to ISO 13849-1 for HFT0, SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 for redundant design HFT1, rectangular, height 6 mm, plastic, PA12, DC 2-wire, nominal 8.2 VDC, output in accordance with DIN EN 60947-5-6 (NAMUR), cable connection, cable length 2 m, magnetic-inductive sensor.
