Product details

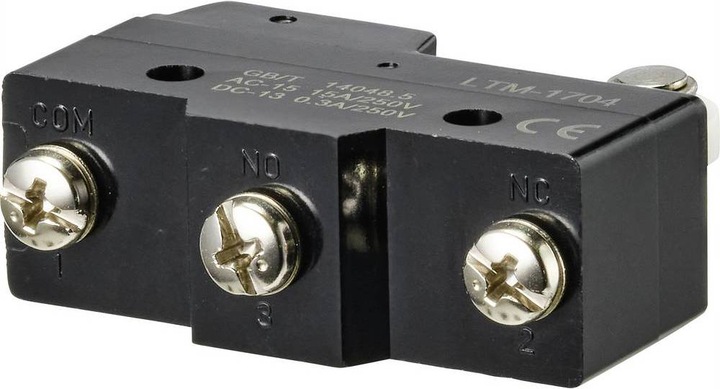

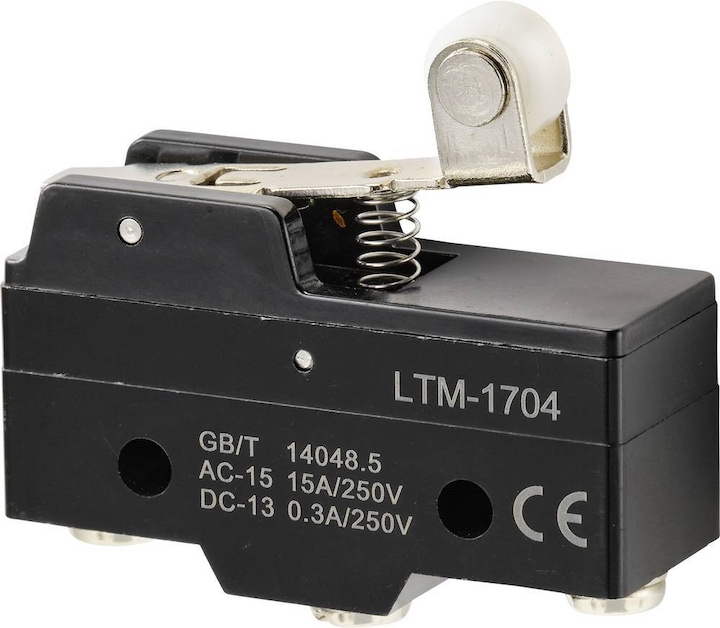

MICRO SWITCH WITH ROLLER LTM-1704. technical data: . Connection (components): Turn on Â- Actuation type: Simulated roller Â- Functions (switch/button): momentary Â- Contents: 1 pc. Â- Contact type (LOV): 1 changeover contact Â- Product type: Microswitch Â- Product dimension, width: 17.6 mm Â- Product dimension, length: 49.6 mm Â- Switching voltage: 250 V/AC Â- Switching position: 1 x On/(On) Â- Switching current (max.): 15 A Â- Temperature (max.): +80 °C Â- Temperature (min.): -10 °C Â- Type (manufacturer type): TC-9201368.
Pushbutton + switch type | Button |
Item number | 21609763 |
Manufacturer | Tru Components |
Category | Buttons + Switches |
Manufacturer no. | TC-9201368 |
Release date | 8.6.2021 |
Pushbutton + switch type | Button |
rank | Microswitch |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | 1 microswitch |
Specifications may include unverified machine translations.
