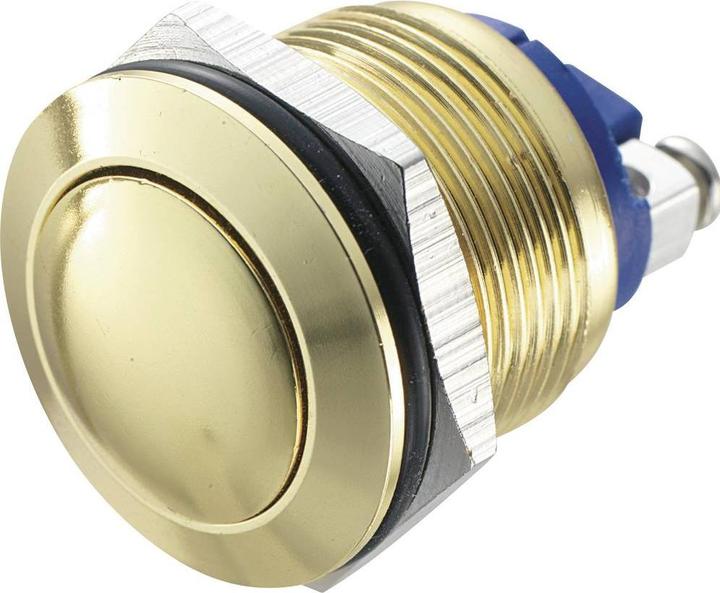

Tru Components 701262 GQ 19B-G Vandalism-protected pushbutton 48 V/DC 2 A 1

Tru Components GQ 19B-G vandalism-resistant push button 48 V/DC 2 A momentary IP65. Vandalism-resistant button 19 mm 48 V/DC 2 A. Technical specifications: Connection (components): screw terminals, illumination type: without illumination, actuation force: 5.5 N, mounting diameter: 19 mm, housing/button color: brass, functions (switch/button): momentary, quantity: 1 piece, insulation resistance: ≥ 1000 MΩ, contact resistance: ≤ 50 mΩ, contact type (LOV): 1 normally open, contact material: silver alloy, electrical lifespan: 200,000 cycles, mechanical lifespan: 1,000,000 cycles, material: brass, maximum panel thickness: 8 mm, product type: vandalism-resistant push button, RoHS compliant: yes, switch/button features: convex actuator, switching voltage: 48 V/DC, switching position: 1 x Off/(On), maximum switching current: 2 A, protection class: IP65, voltage withstand: 2000 V/AC, button type: convex, maximum temperature: +55 °C, minimum temperature: -20 °C, type (manufacturer type): GQ 19B-G. Note: In the description of the switching position, the values in parentheses indicate that it is a momentary function. Special feature: convex actuator.
