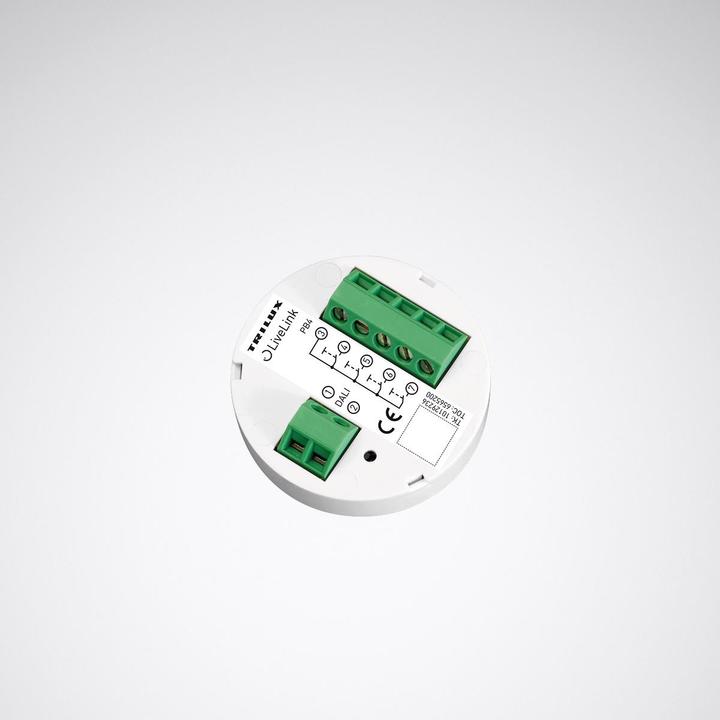

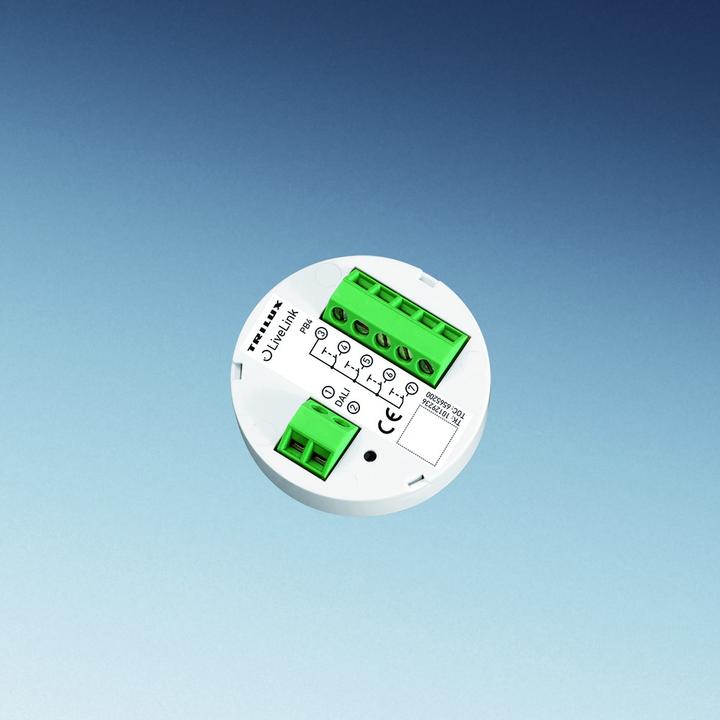

Trilux Pushbutton coupler LiveLink DALI PB4

Trilux DALI Button Coupler LiveLink DALI PB4

Manufacturer: Trilux
Designation: DALI button coupler for 4 installation buttons
Type: LiveLink DALI PB4
Execution: Push dimmer/IR control module
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

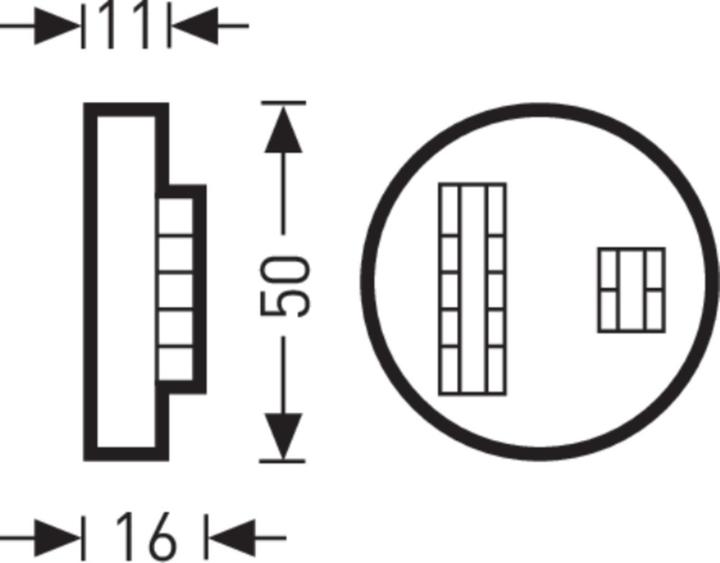

Height: 11 mm
Diameter: 50 mm

The LiveLink DALI button coupler allows the connection of up to 4 standard installation buttons via the DALI interface to a LiveLink control device. The functions of the buttons can be freely selected during commissioning: touch dimming function for one or more lighting groups as well as the recall of programmed light scenes.

It is suitable for installation behind an installation button in conjunction with a deep wall box (at least 60 mm). The connection to the LiveLink control device is made via the DALI line. The cable length between the installation button and the button coupler can be up to 25 m and should be laid in a separate sheath cable.

The number of occupied DALI participants is 1. No additional power connection is required. Commissioning is done via a secure Wi-Fi connection (WPA2 encryption) with the LiveLink control device using the LiveLink Install App and tablet PC (iOS/Android).

EAN: 4018242327591.
