Trilux Light control unit

Trilux Light Control Device LiveLink WiFi Gen2

Manufacturer: Trilux
Designation: Light control device for 16 lighting groups
Type: LiveLink WiFi Gen2
Version: Light control system set

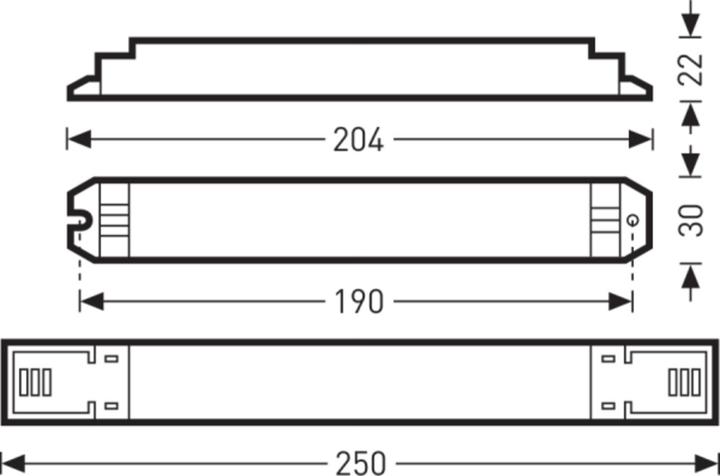

Width: 30 mm
Height: 22 mm
Depth: 204 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

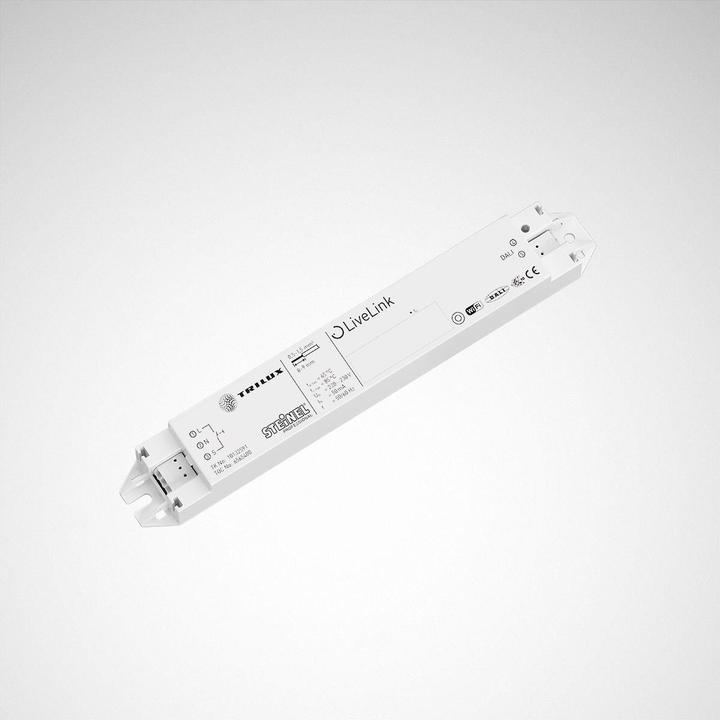

The Trilux Light Control Device LiveLink WiFi Gen2 is a DALI control device for connecting LiveLink sensor units for daylight-dependent control and presence detection, LiveLink DALI switch couplers, and DALI lights. It features an integrated Wi-Fi module for commissioning and operation. It can control up to 64 DALI participants, such as DALI lights, DALI switch couplers, and LiveLink sensor units.

The addressing of the lights and LiveLink system components is done via a graphical user interface (iOS/Android app) for tablet PCs. It offers fully automatic (automatic on/off) or semi-automatic (only automatic off) presence detection, with freely programmable switch functions.

The control device can be built into lights or mounted externally. Mounting brackets for a VDE-compliant connection in the ceiling or hollow wall are included. With separately ordered accessories, mounting on a DIN rail (TS35) is also possible.

Commissioning is done with the LiveLink Install App via a secure Wi-Fi connection (WPA2 encryption) with a tablet PC. The flat housing has a height of 22 mm and is equipped with a DALI interface that allows the connection of lights, LiveLink sensors, and switch couplers. Operation is optionally possible with a tablet PC, smartphone, or installation switch.

EAN: 4018242340361.
