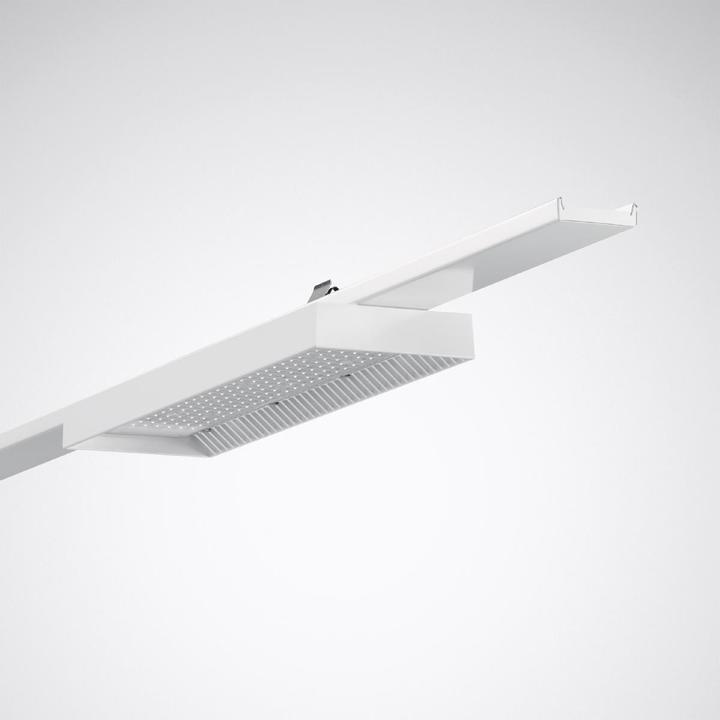

Trilux LED gear tray

Device carrier for E-Line light band system with 2 integrated LED units of the Mirona Fit high bay light. Suitable for use in HACCP, IFS, and/or BRC Global Standard Food certified companies (DIN 10500). Attachment to the support profile is done using tool-free stainless steel snap locks. The correct installation of the device carrier with the support profile is confirmed by a clicking sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after successful installation, providing theft and disassembly protection. Optical system composed of PC lens optics. With symmetrically wide light intensity distribution. Rated luminous flux 19,800 lm, rated power 121.00 W, luminaire luminous efficacy 164 lm/W. Light color neutral white, closest color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color point tolerance (initial MacAdam) = 3 SDCM. Average rated lifespan L80(tq 45 °C) = 70,000 h, average rated lifespan L85(tq 45 °C) = 50,000 h. Device carrier made of sheet steel, color white (RAL 9016). Permissible ambient temperature (ta): -20 °C - +45 °C. Weight: 3.0 kg. Automatic electrical connection via plug contacts with phase selection. Phase selection is tool-free. With electronic ballast, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed via touch function over DALI control terminals (Touch DIM). The operating device is replaceable according to eco-design requirements. The luminaire can be equipped with monitoring ready (MOR) functionality upon request. The product meets the basic requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC certified by an independent testing body.
