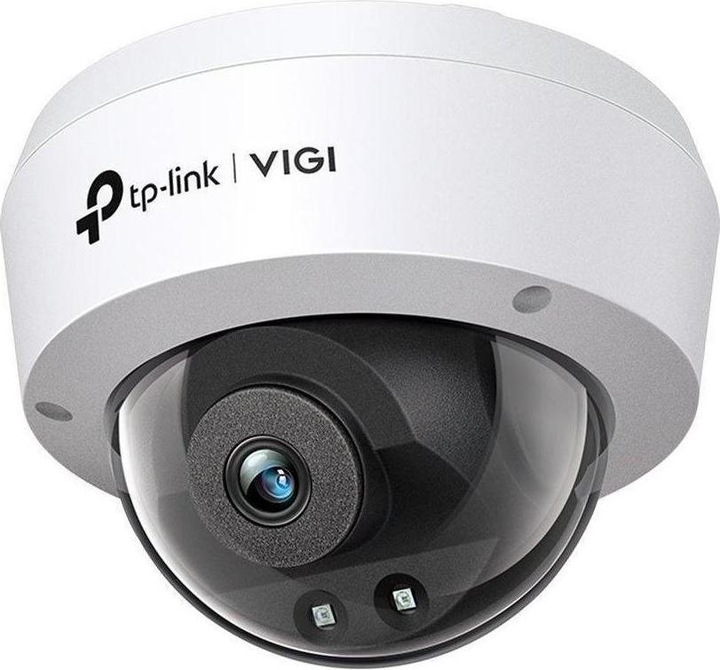

TP-Link VIGI C220I(2.8MM) - Dome camera, 2MP, 2.8mm

VIGI C220I(2.8mm) is a 2 megapixel Dome IP camera by TP-Link designed for outdoor use with fixed lens 2.8 mm, IR illuminator up to 30m distance and Ethernet port with 802.3af PoE. The camera has a max. resolution of 1920 × 1080 px (at 30 fps), viewing angle 88°, 2 independent streams, digital WDR sensor, ONVIF support, protection IP67 against water, anti-vandal protection IK10 and codec H.264(+) including H.265(+).

The camera can be powered both via a 12V DC connector and via 802.3af PoE via an Ethernet cable.

Key Features

• 2MP resolution
• Lens 2.8mm, viewing angle 88°
• IR at 30m
• DWDR and 3D DNR support
• (1) 10/100 Mbps LAN
• Protection IP67 + anti-vandal IK10
• Power supply 802.3af PoE or 12V DC jack
• Person and Vehicle Distinction: Distinguishes people and vehicles from other objects so you get more accurate event notifications
• Intelligent detection: Receive notifications and check channels when someone crosses the border, enters the set area

Package contents

• Device
• Screws

Camera

• WDR:Digital
• Lens type:Fixed
• Lens [mm]:2,8 (fixed)
• Illumination:IR
• Illumination range [m]:30
• Viewing Angle [°]:88
• Day/night mode:IR cut filter
• Minimum illumination [Lux]:0,1
• Image sensor ["]:1/3


• Resolution:4MP
• Max. resolution [pixels]:2560 x 1440 (WQHD)

Connectors and Interfaces

• LAN speed:(1) 10/100Mbps

Power

• Power over Ethernet:802.3af
• Power type:PoE, DC connector
• Power via connector/terminal:12V DC

Physical characteristics

• Protection class:IP67
• Purpose:Outdoor
• Antivandal (Impact protection):IK10
• Operating temperature [°C]:-30 up to 60
• Width [mm]:115
• Height [mm]:86
• Depth [mm]:115
• Color:White

Compression standard

• Bit rate:64Kbps ~ 4Mbps
• Number of streams:2
• Video compression:H.264, H.265

General

• Camera class:VIGI.
