Name: TL-SG1008MP POE+
Brand: TP-Link
SKU: 12090518
Price: 81.9 CHF
Availability: InStock
Rating: 4.4 (11 reviews)

productDetailPageQuery

Zurich

Lausanne

Wohlen

Basel

Kriens

Winterthur

Bern

Dietikon

St. Gallen

Geneva

TP-Link

The TL-SG1008MP is a Gigabit desktop and rack switch with 8 ports, all of which support the PoE+ standard. It provides an easy way to expand a wired network by transmitting power and data over a single Ethernet cable. With a total power budget of 153 W and up to 30 W per port, the TL-SG1008MP can power more demanding devices such as wireless access points, IP cameras, or IP phones. Additionally, the TL-SG1008MP features innovative, energy-efficient technology that reduces power consumption, making it an environmentally friendly solution for your business network.

All 8 ports of the TL-SG1008MP support the PoE+ (Power over Ethernet Plus) standard, allowing for the automatic detection and powering of all IEEE 802.3af/at compatible devices. Electrical power is transmitted along with data in a single cable, enabling network expansion when no electrical cables or outlets are available, and powering devices such as access points, IP cameras, or IP phones.

The TL-SG1008MP includes a priority feature that protects the system during overload. If the total power consumption of all PoE+ devices is greater than or equal to 153 W, a priority is established among the 8 PoE+ ports. In this case, the system will cut power to the port with the lowest priority.

The priority arrangement is as follows: Port 1 > Port 2 > Port 3 > Port 4 > Port 5 > Port 6 > Port 7 > Port 8. This feature safeguards the system in the event of a power overload. For example, if Ports 1, 2, 4, 5, and 7 each use 30 W (the maximum power per port is 30 W, with a total system power of 153 W) and an additional device using 25 W is plugged into Port 3, the system will cut power to the port with the lowest priority.

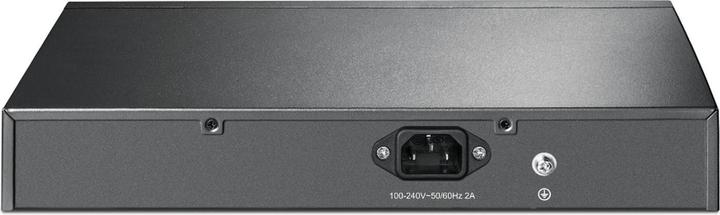

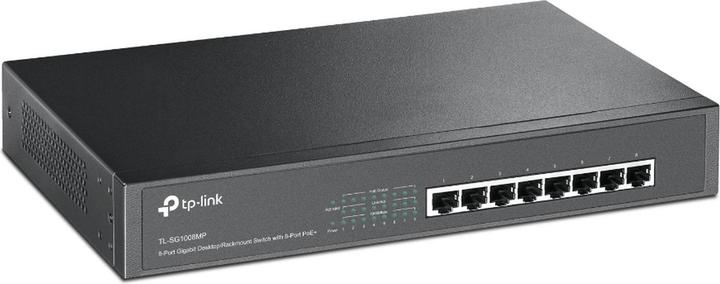

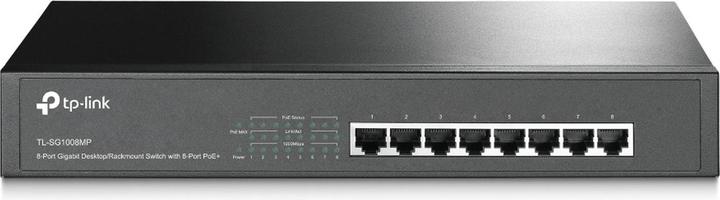

Actual product image TP-Link TL-SG1008MP POE+ (8 ports)

Key specifications

Switch type

Number of PoE ports

PoE Standard

Power over Ethernet (PoE) is a method by which network-compatible devices can be supplied with power via the 8-core Ethernet cable.

Management

Switch functions

Network connections

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

Documents

Technical data sheet.pdf

TL-SG1008MP POE+

Network switches

Network cables

Network accessories

PoE injector

30-day right of return

General information

Colour

Switch properties

Application range

Mains supply properties

Power

Origin

Voluntary climate contribution

Scope of delivery

Product dimensions

Package dimensions

All eight RJ45 ports support the PoE+ standard with a total power budget of 153 W and up to 30 W per port.

High Power-over-Ethernet performance

The switch delivers a maximum port speed of 1000 Mbps across all eight network connections.

Gigabit speed on all ports

If total power usage exceeds 153 W, an automatic prioritisation feature cuts off the power supply to the lowest-priority port.

Integrated overload protection
