Thermaltake Core X9 Snow Edition

ATX, mATX, Mini-ITX, E-ATX
Currently out of stock
Free shipping starting at 50.–

Product details

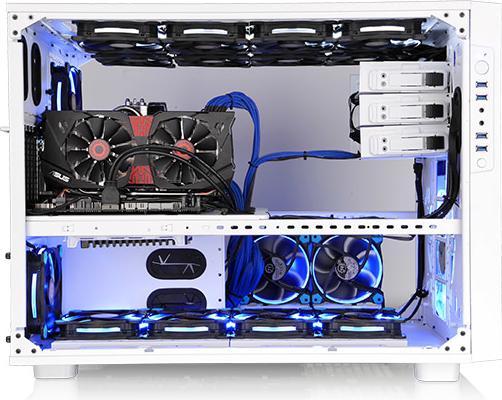

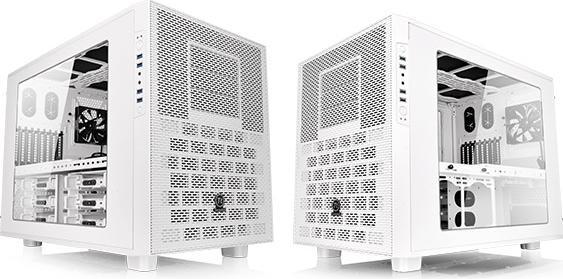

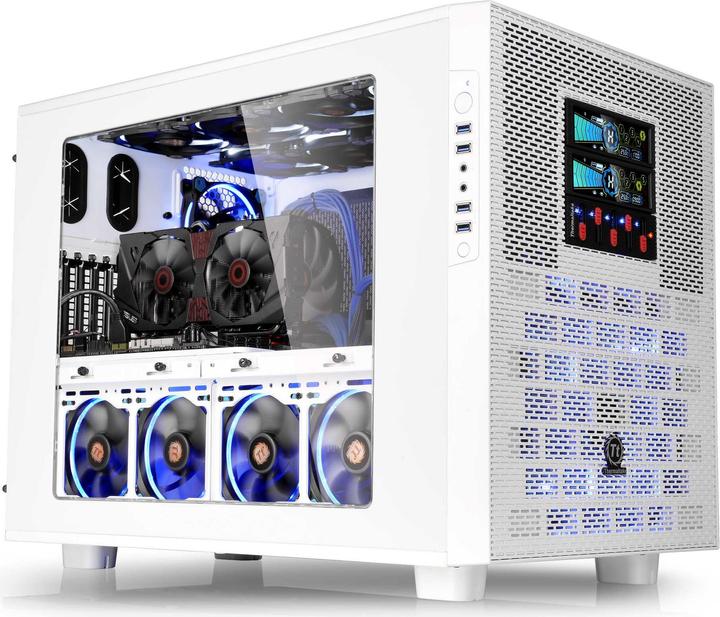

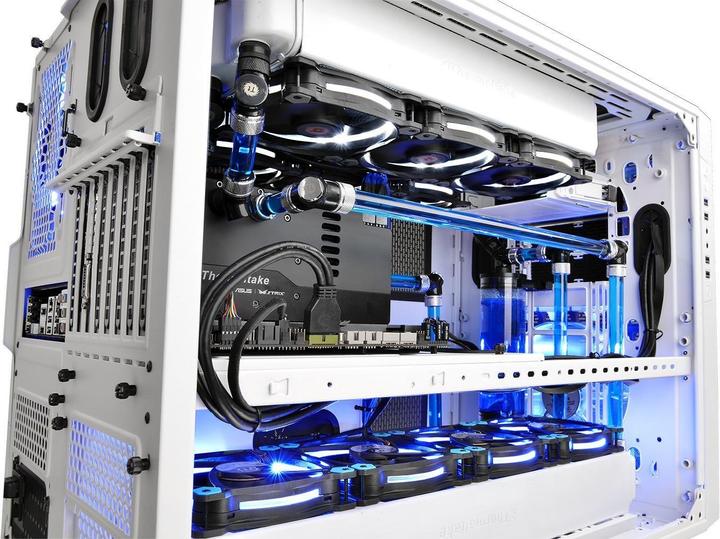

The Core X9 Snow Edition is the E-ATX case from Thermaltake's cube-shaped Core X series, offering theoretically infinite expansion possibilities thanks to its stacking feature. Stacking just two Core X9 cases provides various advantages, such as space for a massive water cooling loop or drives for a data server. The case is highly adaptable, as the side panels can be swapped out with or without windows. Additionally, the I/O panel can be repositioned. High cooling performance is a top priority for all cases in the Core series, and the Core X9 is no exception. Pre-installed fans provide good cooling performance right out of the box, but the full potential can be achieved in conjunction with additional case fans and DIY or AIO water cooling solutions. This allows overclocked systems to maintain healthy operating temperatures without any issues.

Key specifications

PC case design
Cube housing
Number of 3.5" drive slots (internal)
1 x
"Number of 5.25"" drive slots"
3 x
Max. length graphics card
590 mm
Front connectors
HeadphonesMicrophoneUSB 3.0
PC case features

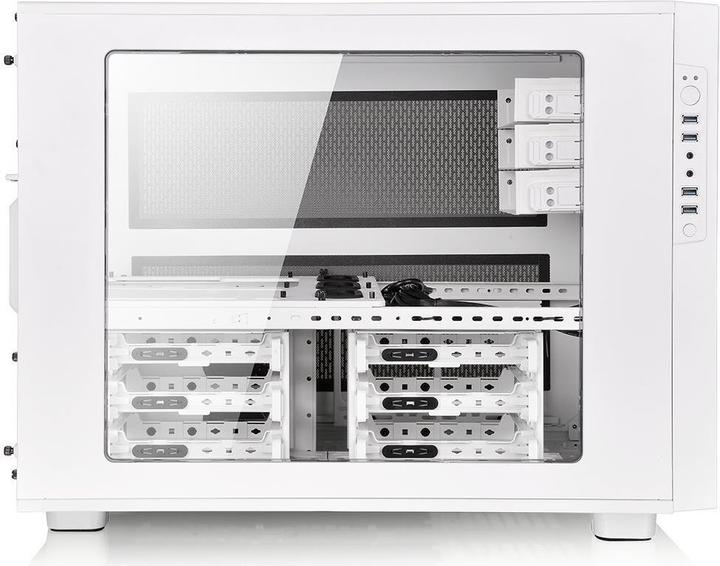

Openings for water coolingSide windows
Max. height CPU cooler
250 mm
Documents
Item number
4656678

General information

Manufacturer
Thermaltake
Category
PC case
Manufacturer no.
CA-1D8-00F6WN-00
Release date
20.4.2015

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Spcc

PC case properties

PC case design
Cube housing
Form factor
ATXE-ATXMicro ATX (mATX)Mini-ITX
"Number of 5.25"" drive slots"
3 x
Number of 3.5" drive slots (internal)
1 x
"Number of 2.5""/3.5"" combination slots"
6 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
8 x
Max. length graphics card
590 mm
Max. height CPU cooler
250 mm
Max length of power supply
220 mm
PC case features
Openings for water coolingSide windows

Connections

Front connectors
HeadphonesMicrophoneUSB 3.0

Cooling properties

Number of fans
2 x
Number of fan slots
20 x
Fan location
AspectBottom sideFront sideRear sideTop side
Number of radiator mounts
5
Radiator locations
AspectBottom sideFront sideRear sideTop side
Cooling properties
Water cooling possible

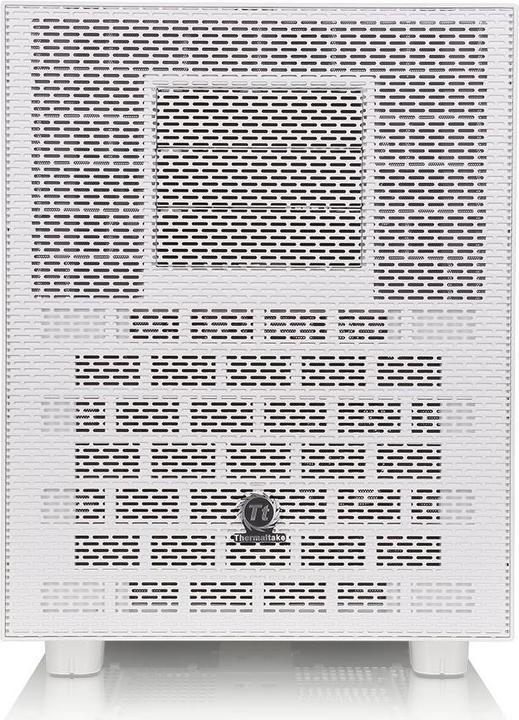

Front side

Fans included

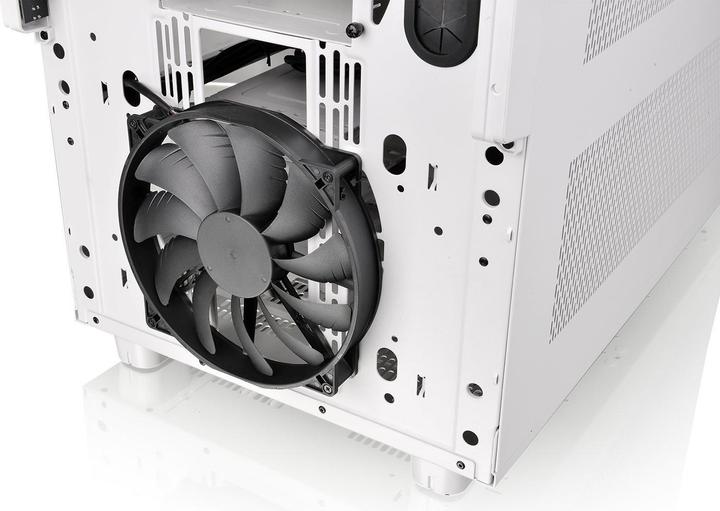

1x 200mm
Fan mount locations
2x 140mm2x 200mm3x 120mm
Radiator mount locations
1x max. 120/140mm1x max. 240/280/360mm

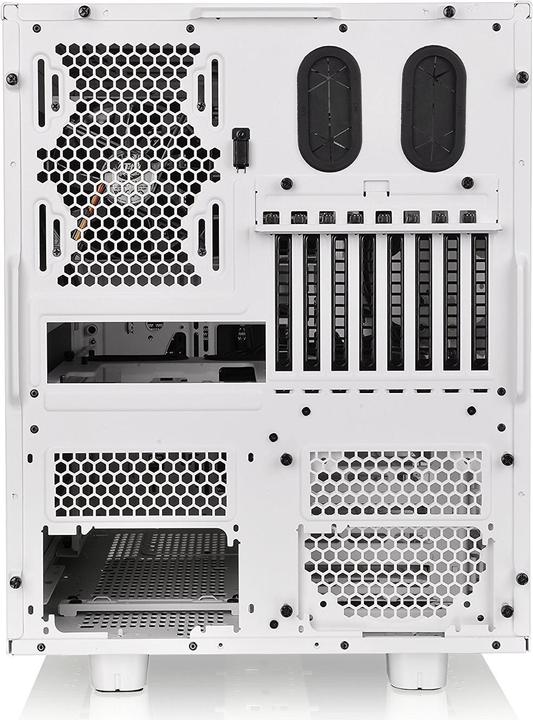

Rear side

Fans included

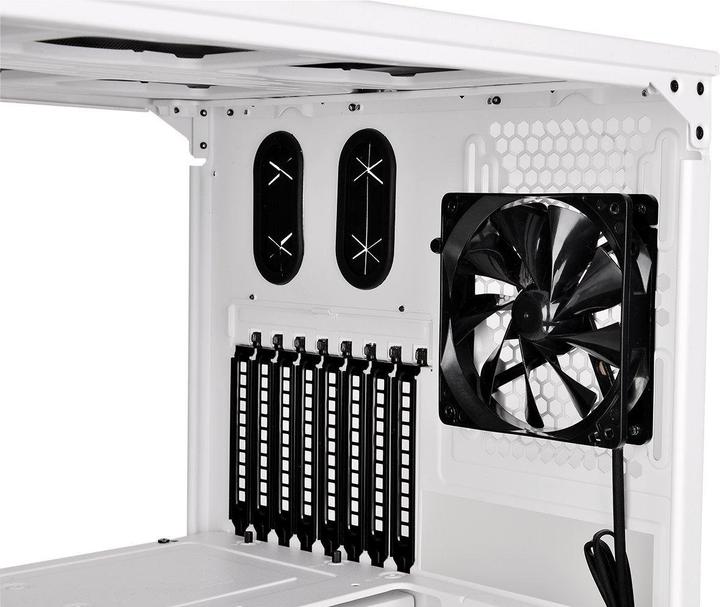

1x 120mm
Fan mount locations
2x 120mm2x 140mm
Radiator mount locations
1x max. 120/140mm

Side

Fans included
Optional fan
Fan mount locations
3x 140mm4x 120mm
Radiator mount locations
1x max. 120/140mm1x max. 240/280/360mm1x max. 420mm1x max. 480mm

Bottom side

Fans included
Optional fan
Fan mount locations
3x 120mm
Radiator mount locations
1x max. 120/140mm1x max. 240/280/360mm1x max. 420mm1x max. 480mm

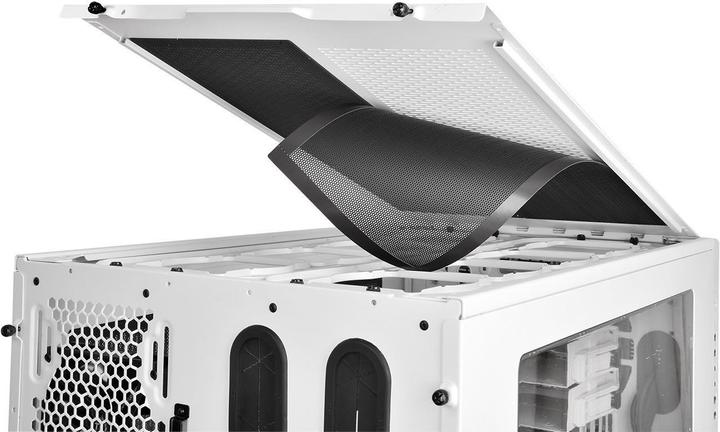

Top side

Fans included
Optional fan
Fan mount locations
2x 200mm6x 140mm8x 120mm
Radiator mount locations
2x max. 120mm2x max. 140mm2x max. 240mm2x max. 280mm2x max. 360mm2x max. 420mm2x max. 480mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
50.20 cm
Length
64 cm
Width
38 cm
Weight
17 kg

Package dimensions

Length
55.50 cm
Width
46 cm
Height
74 cm
Weight
18 kg
