Thermaltake Core W100

ATX, mATX, Mini-ITX, E-ATX, XL-ATX
6Ratings
BrandMore from Thermaltake
Currently out of stock
Free shipping starting at 50.–

Product details

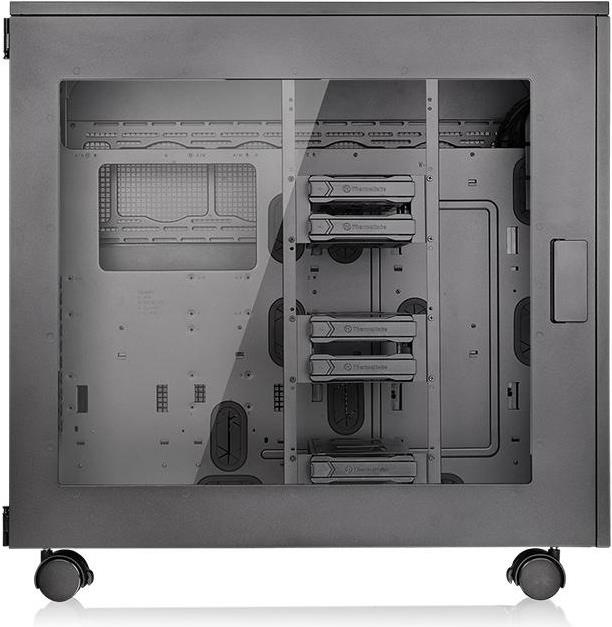

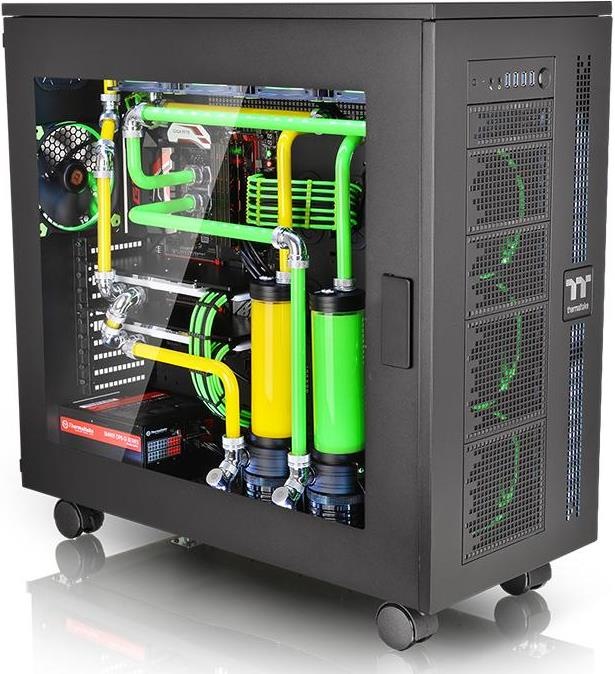

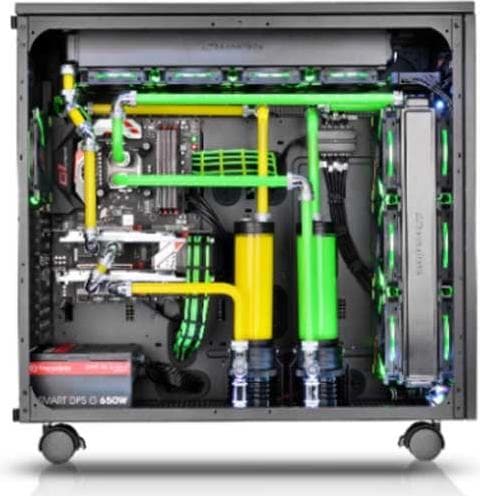

The Thermaltake Core W100 Super-Tower is a superlative big-tower case suitable for workstations, servers and high-end gaming PCs. The Core W100 has a modular design and can even be expanded with the Core P100 or combined with the Core WP100, which, among other things, allows the massive cooling options to be expanded once again. As an eye-catcher predestined for a custom water cooling system, the black Core W100 has a large window in the left side panel.

Key specifications

PC case design
Full tower
"Number of 5.25"" drive slots"
3 x
Max. length graphics card
635 mm
Front connectors
Headphones, Microphone, USB 3.0
PC case features
Modular HDD cage, Openings for water cooling, Side windows
Max. height CPU cooler
200 mm
Item number
5711387

General information

Manufacturer
Thermaltake
Category
PC case
Manufacturer no.
CA-1F2-00F1WN-00
Release date
8.3.2016

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Spcc

PC case properties

PC case design
Full tower
Form factor
ATX, E-ATX, Micro ATX (mATX), Mini-ITX, XL-ATX
"Number of 5.25"" drive slots"
3 x
Number of 3.5" drive slots (external)
3 x
"Number of 2.5""/3.5"" combination slots"
10 x
"Number of 2.5"" drive slots"
10 x
Number of expansion card slots
10 x
Max. length graphics card
635 mm
Max. height CPU cooler
200 mm
Max length of power supply
220 mm
PC case features
Modular HDD cage, Openings for water cooling, Side windows

Connections

Front connectors
Headphones, Microphone, USB 3.0

Cooling properties

Number of fan slots
19 x
Fan location
Aspect, Bottom side, Front side, Rear side, Top side
Number of radiator mounts
4
Radiator locations
Bottom side, Front side, Rear side, Top side
Cooling properties
Water cooling possible

Front side

Fans included
Optional fan
Fan mount locations
3x 120mm, 3x 140mm
Radiator mount locations
1x max. 360/420mm

Rear side

Fans included
Optional fan
Fan mount locations
1x 120mm, 1x 140mm
Radiator mount locations
1x max. 120/140mm

Side

Fans included
Optional fan
Fan mount locations
6x 200mm, 8x 120mm, 8x 140mm, on 2 fan brackets, right side part
Radiator mount locations
No mounting possible

Bottom side

Fans included
Optional fan
Fan mount locations
3x 120mm, 3x 140mm
Radiator mount locations
1x max. 140mm, 1x max. 280mm

Top side

Fans included
Optional fan
Fan mount locations
3x 200mm, 4x 120mm, 4x 140mm
Radiator mount locations
1x max. 480/560/600mm

HDD Cage

Fan mount locations
1x 140mm

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
67.70 cm
Length
67.80 cm
Width
31 cm
Weight
22.40 kg

Package dimensions

Length
67 cm
Width
72.70 cm
Height
32 cm
Weight
23.40 kg
