Thermaltake Core P7 TG
ATX, mATX, Mini-ITX, E-ATXProduct details

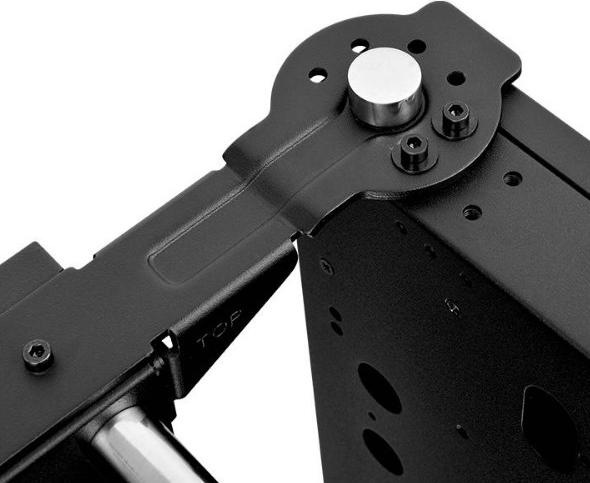

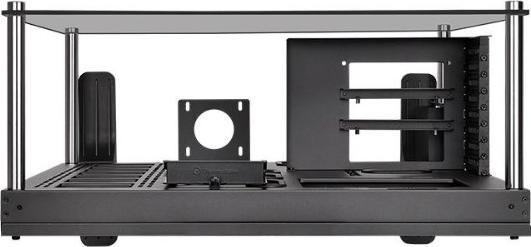

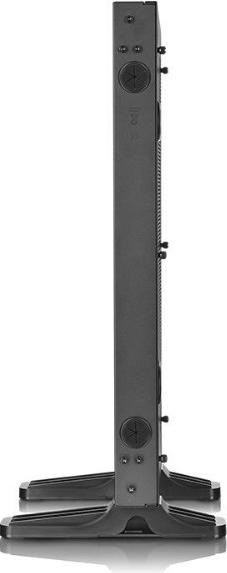

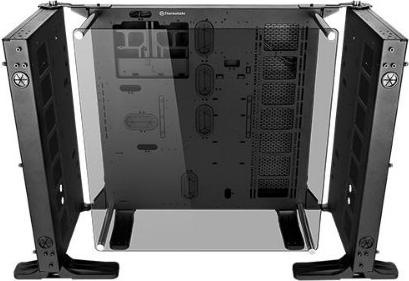

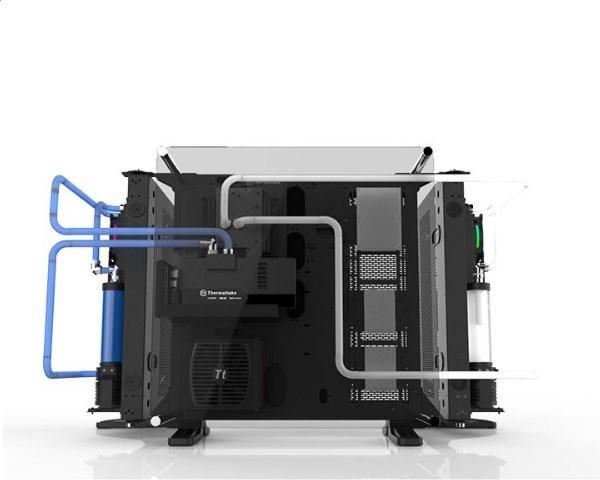

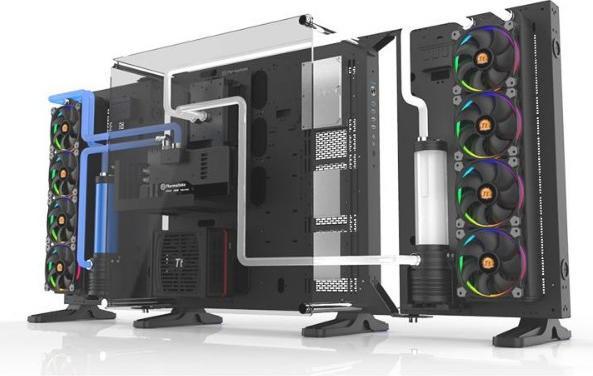

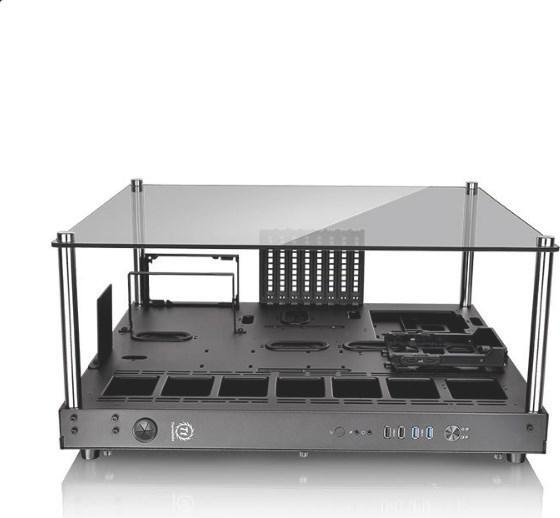

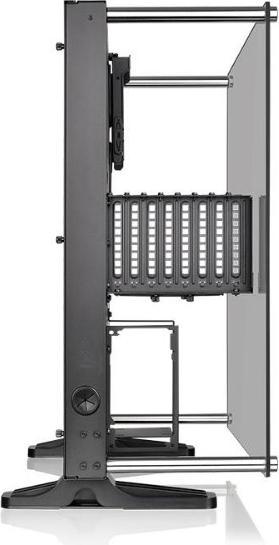

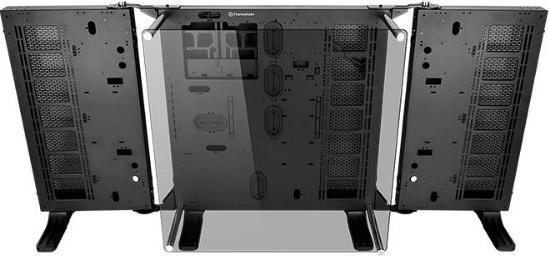

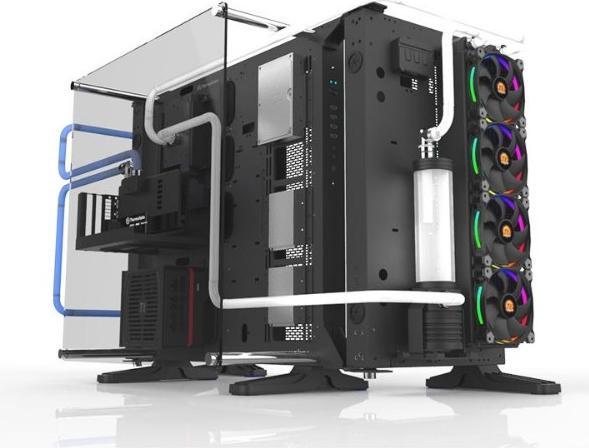

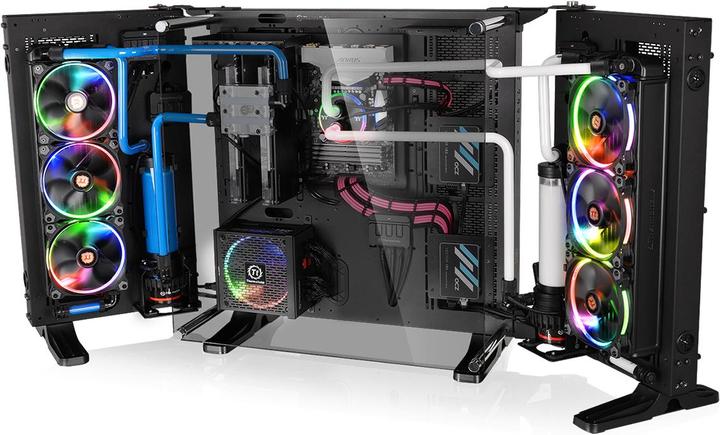

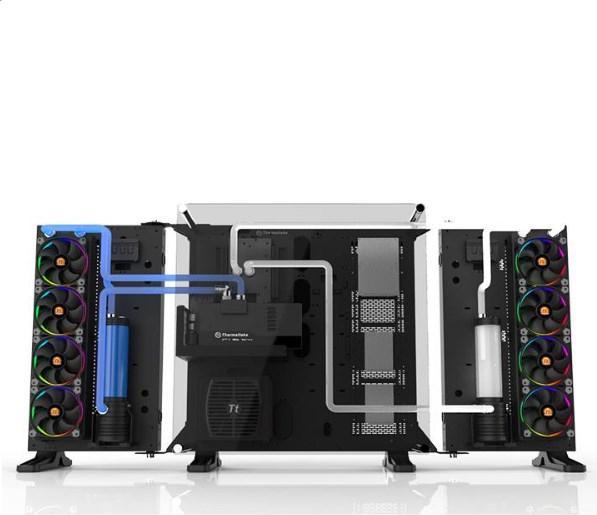

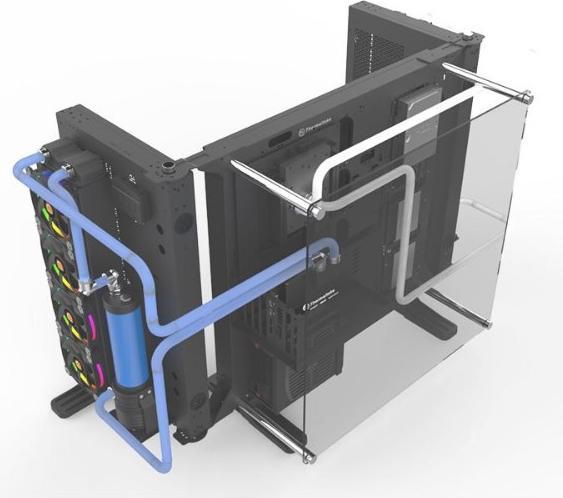

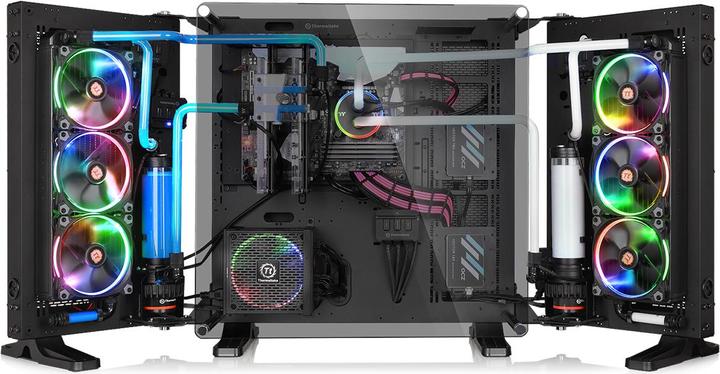

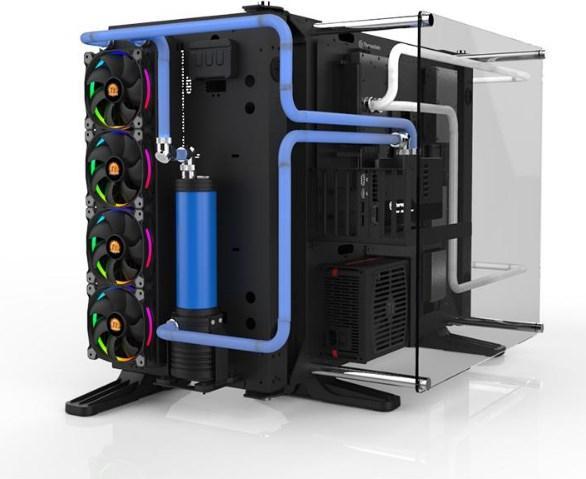

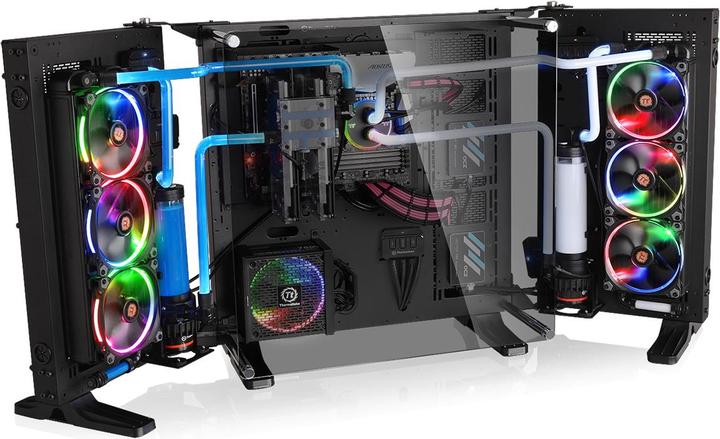

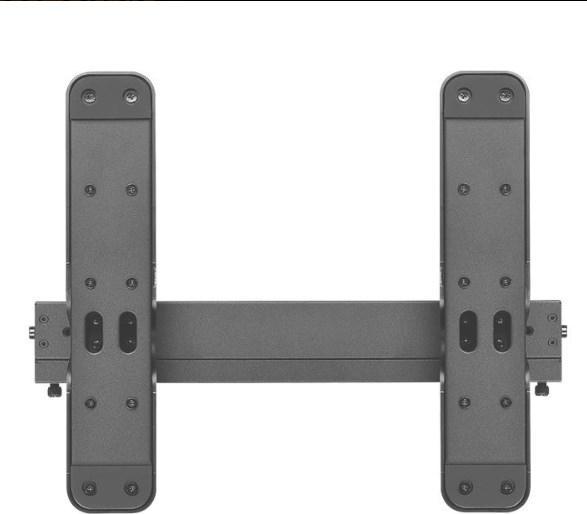

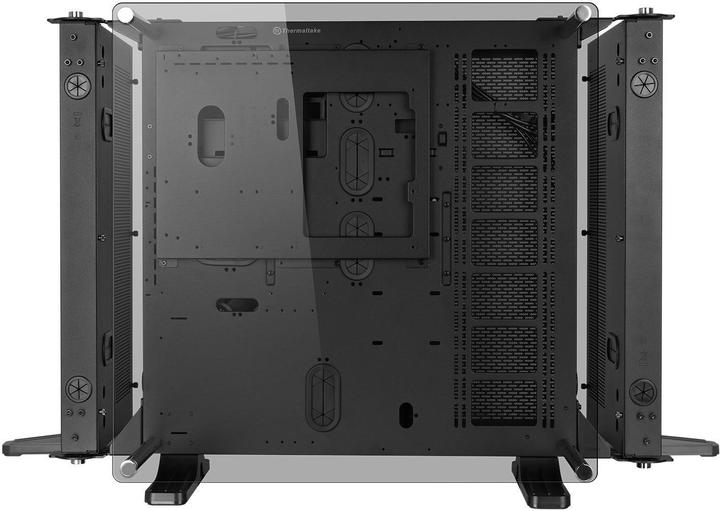

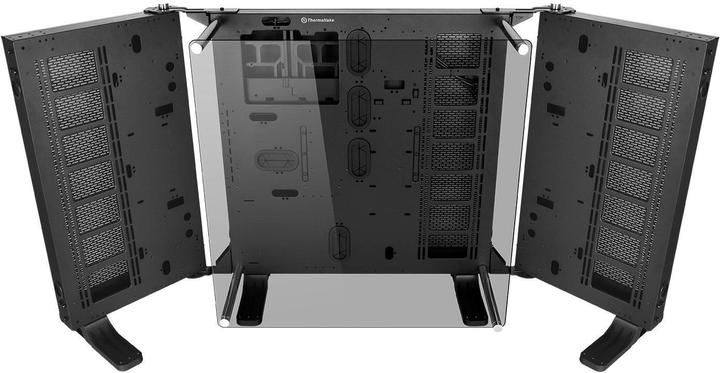

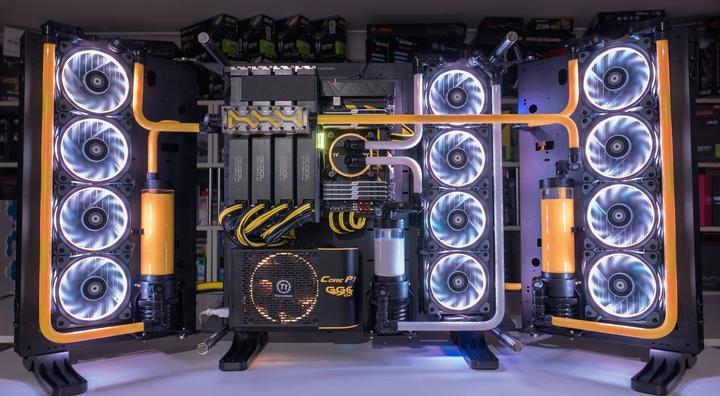

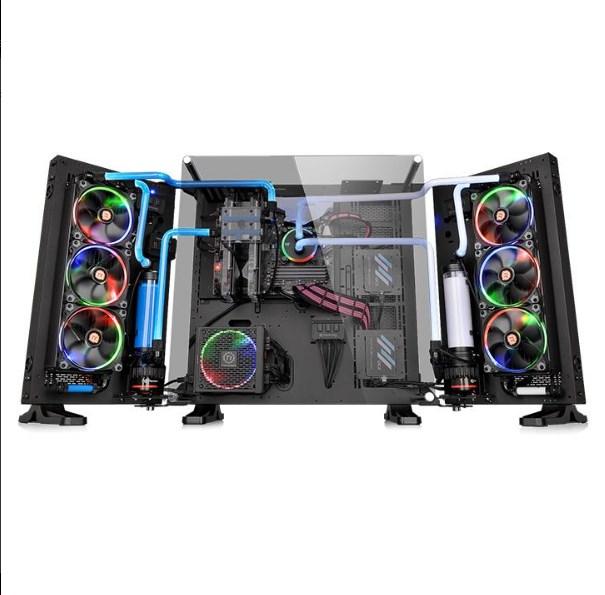

Thermaltake expands the boundaries of full towers for wall mounting with the launch of the Core P7 Tempered Glass Edition. This model features an enlarged 5 mm thick tempered glass window and, like the first in the industry, offers four extended mounting positions. This allows users to mount the extended chassis at angles of 45°, 90°, 180°, or 270° to the front or back of the main chassis. Additionally, it includes 3-way positioning layouts (wall-mountable, horizontally laid out, and vertically standing) as well as full mounting capacity and expandability for an ultimate air or liquid cooling system. The Core P7 TG provides users with limitless possibilities for configuring their systems.

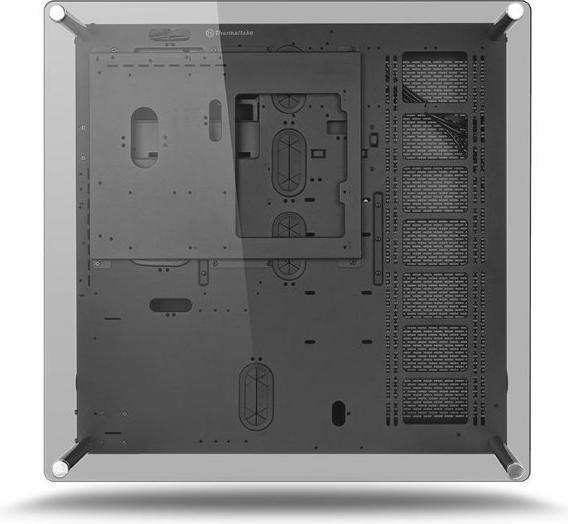

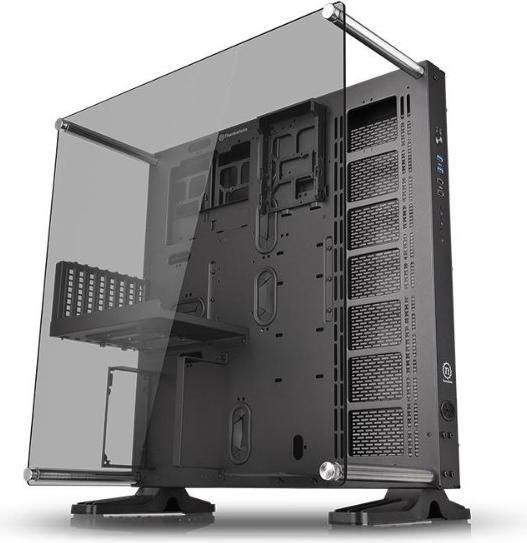

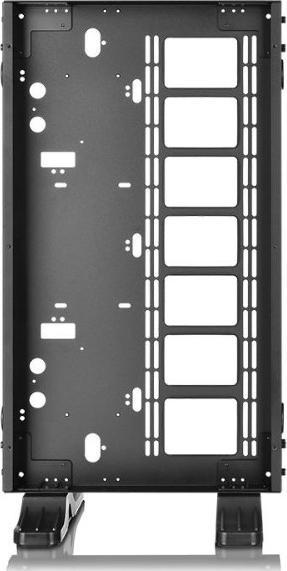

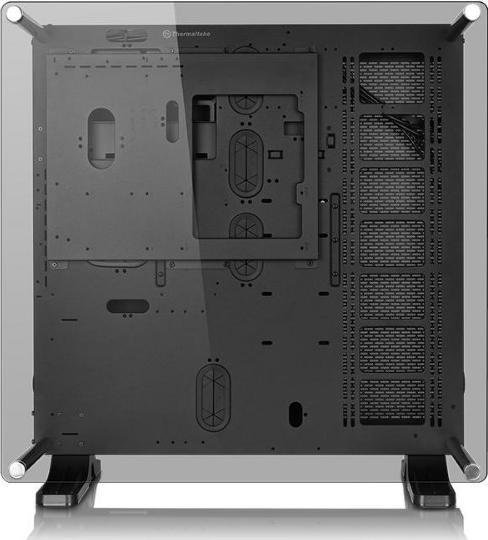

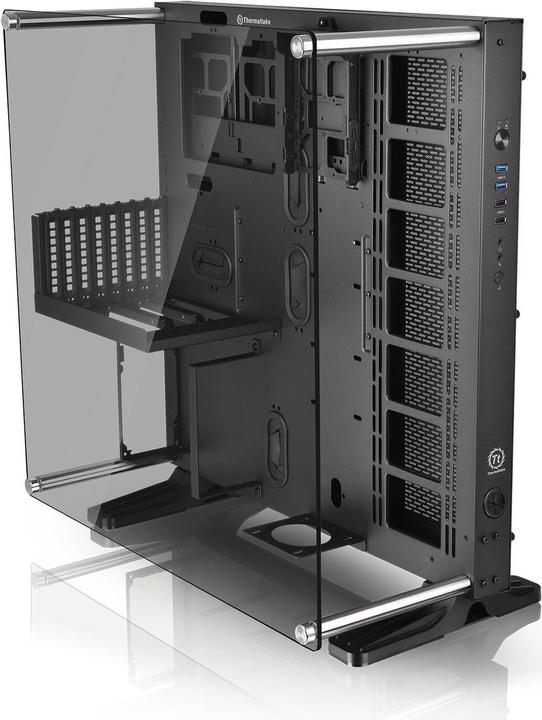

The case is a true open frame design, allowing full visibility of both the front and back. The tempered glass panel is 5 mm thick and meets the highest industry standards. Furthermore, the enlarged glass window allows users to showcase every internal component of the system like few others on the market, demonstrating their commitment and skills.
PC case design | Full tower |
Max. length graphics card | 570 mm |
Front connectors | Headphones, Microphone, USB 2.0, USB 3.0 |
Max. height CPU cooler | 180 mm |
Documents | |
Item number | 6317406 |
Manufacturer | Thermaltake |
Category | PC case |
Manufacturer no. | CA-1I2-00F1WN-00 |
Release date | 18.5.2017 |
Colour | Black |
Exact colour description | Black |
Material group | Glass, Metal |
Material | Glass, Steel |
PC case design | Full tower |
Form factor | ATX, E-ATX, Micro ATX (mATX), Mini-ITX |
Number of 3.5" drive slots (external) | 3 x |
"Number of 2.5""/3.5"" combination slots" | 4 x |
"Number of 2.5"" drive slots" | 4 x |
Number of expansion card slots | 8 x |
Max. length graphics card | 570 mm |
Max. height CPU cooler | 180 mm |
Max length of power supply | 200 mm |
Front connectors | Headphones, Microphone, USB 2.0, USB 3.0 |
Number of fan slots | 2 x |
Fan location | Aspect, Front side |
Number of radiator mounts | 2 |
Radiator locations | Aspect, Front side |
Fans included | Optional fan |
Fan mount locations | 3x 140mm, 4x 120mm |
Radiator mount locations | 1x max. 420mm, 1x max. 480mm |
Fans included | Optional fan |
Fan mount locations | 4x 120mm |
Radiator mount locations | 1x max. 420mm, 1x max. 480mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Height | 62.70 cm |
Length | 135 cm |
Width | 33.30 cm |
Weight | 25.50 kg |
Length | 77 cm |
Width | 64.50 cm |
Height | 36 cm |
Weight | 29.20 kg |
