Theben Rme 4 I Knx

Switch actuator
Delivered between Wed, 1.10. and Fri, 17.10.
free shipping

Product details

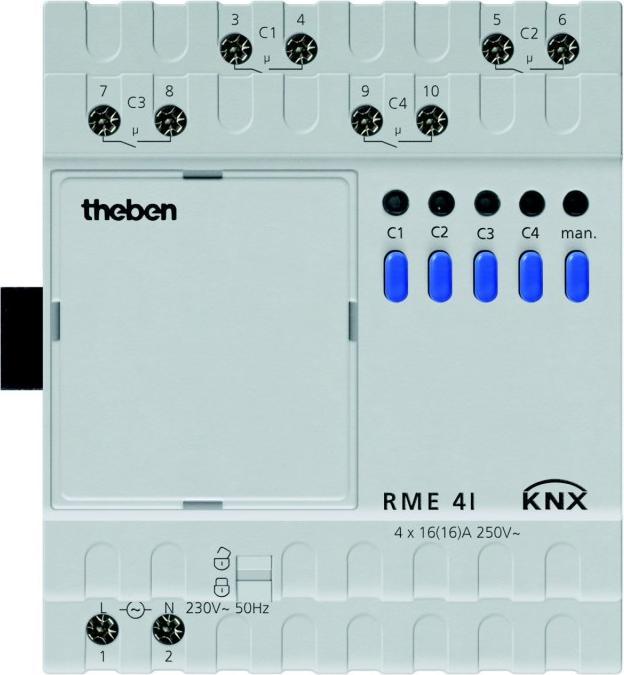

The Theben RME 4 I KNX is a versatile shutter actuator designed as a 4-fold extension module for KNX systems. With its relay outputs, it allows for the control of up to four switching channels and can be expanded to up to 12 channels by combining with additional modules. The actuator is suitable for mounting on a DIN rail and offers a wide range of functions, including switching, delayed switching operations, and pulse functions. The integrated LED display indicates the switching status of each channel, while the manual switches can also be used without bus voltage. The RME 4 I KNX supports central control commands and enables the storage and retrieval of scenes, making it a flexible solution for modern building automation.

  • Expandable to up to 12 channels by combining with RME 4 I
  • Supports logical connections such as AND, OR, and blocking
  • Adjustable behavior during bus failure and recovery
  • Feedback object for each channel for status monitoring
  • Central objects with and without priority for flexible control.

Key specifications

Actuator type
Switch actuator
mounting style
Top-hat rail
Items per sales unit
1 x
Documents
Item number
32456242

General information

Manufacturer
Theben
Category
Actuator
Manufacturer no.
4930215
Release date
16.1.2023

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
3680 W
rated current
16 A
Operating voltage
230 V
Number of switching outputs
4 x
mounting style
Top-hat rail
Protection type (IP code)
IP20

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Width
4000 mm
