Theben Dmg 2 T Knx

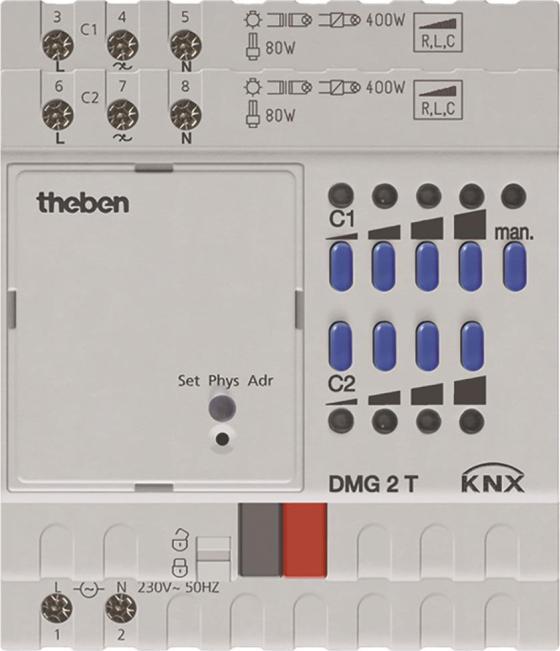

Theben universal dimmer DMG 2 T KNX

Manufacturer: Theben
Designation: Universal dimmer 2-channel, basic module
Type: DMG 2 T KNX
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Bidirectional radio: No
Version: Dimming actuator
Mounting type: DRA
Width in subdivision units: 4
With bus coupling: Yes
Removable bus module: Yes
Local/manual operation: Yes
With LED display: Yes
Number of outputs: 2
Output power: 5-400 W
Additional power can be used: Yes
Load type: Universal and LED retrofit
Voltage: 230 V
Parallel operation possible: No
Frequency: 50 Hz
Protection class (IP): IP20

Further details:
KNX universal dimming actuator 2-fold, basic device, 2 dimming outputs per module, expandable with DME 2 T up to 6 channels, expandable with up to any 2 MIX expansion devices, DIN rail installation housing, width 4 TE, dimming range 0-100%, maximum load: 2x400 W/VA or 1x800 W/VA. When using the channels as a control output, up to 5 DMB 1 T dimming boosters with a maximum of 5x400 W/VA power per channel can be controlled. Suitable for dimming incandescent lamps, low-voltage and high-voltage halogen lamps, dimmable energy-saving lamps, and dimmable LED retrofit lamps. Different dimming curves enable stepless dimming of all types of lamps, also suitable for controlling many fans. Automatic load detection (selectable), manual operation at 0, 25, 50, 75, and 100%. Device and KNX bus module can be replaced independently of each other.
