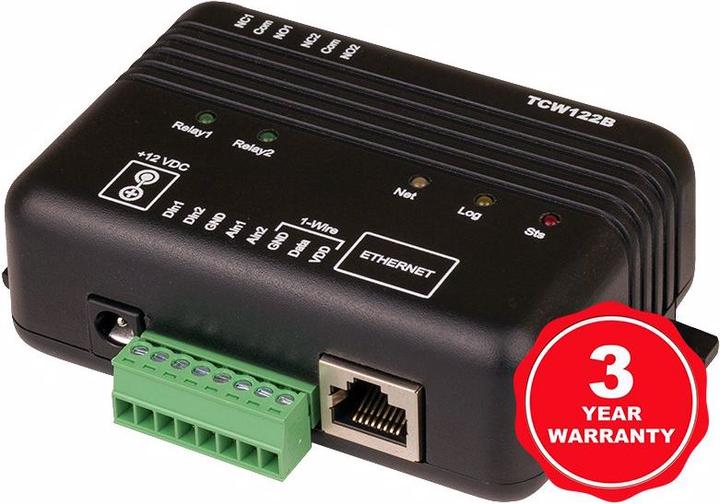

Teracom Network IP Remote IO module TCW122B-CM

The TCW122B-CM IP Remote IO Module from Teracom is a versatile solution for industrial automation. It enables the integration of analog and digital signals into an Ethernet-based network. With its two digital inputs, which can operate both as potential-free and logic level, it offers flexibility for various applications. The analog inputs support voltages from 0 to 60 V DC, covering a wide range of sensors and devices. Additionally, the module features two relay outputs that can be configured as either normally open or normally closed contacts to meet different control requirements. The capability for email alarms and support for protocols such as SMTP, SNMP, HTTP, and XML API allow for easy integration into existing systems and effective monitoring. Another notable feature is the ability for remote firmware updates, ensuring simple maintenance and updates of the module.

• Email alarms via SMTP, SNMP, HTTP, and XML API
• Two digital inputs for flexible signal processing
• Remote firmware update for easy maintenance
• Two analog inputs with a range of 0 - 60 V DC
• Two relay outputs with normally open and normally closed contacts.
