Teltonika TFT100TSRAB0 - TFT100 - E-Forklift/E-Scooter Tracker Plus, RS485 Interface

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

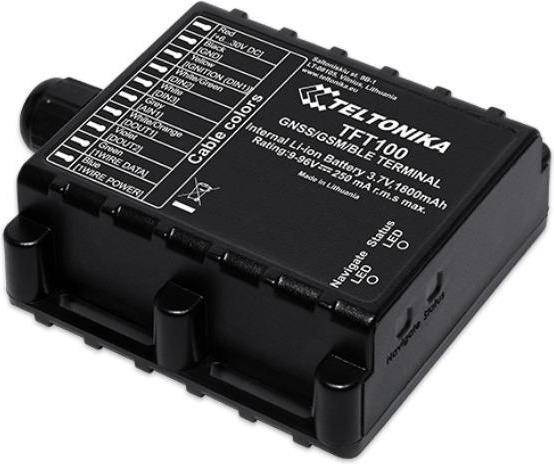

TFT100 - E-Forklift/E-Scooter Tracker Plus, RS485 Interface

The Teltonika TFT100 is a device designed for electric forklift tracking and management. It provides enhanced voltage capabilities along with real-time tracking and a 1-wire interface for monitoring temperature data and RFID/iButton tags. With a power supply range of 10-97 V, the device is suitable for equipment that requires high voltage support.

Hardware
Module name: TM2500
Technology: GSM/GPRS/GNSS/Bluetooth (4.0 + LE)
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channels
Tracking sensitivity: -165 dBm
Accuracy: GNSS receiver start times: Hot
Cellular technology: GSM
2G bands: Quad-band GSM 850/900/1800/1900 MHz, GPRS Multi-Slot Class 12 (up to 440 kbps); GPRS Mobile Station Class B
Data support: SMS (text/data)
Power supply: 10-97 V DC
Internal batteries: 1800 mAh Li-Ion battery 3.7 V (6.66 Wh) internal back-up battery

Interface
RS485 modification: 1x RS485 (RS485-A - RS485-B), 1x AIN1/DIN1, 1x AIN2/DIN2, 1x DOUT1/DIN3, 1x DOUT2/DIN4, 1x 1-Wire, micro-USB, 2x status LED lights
GNSS antenna: Internal high-gain
GSM antenna: Internal high-gain
Sensors: Accelerometer
Interface: 2.0 Micro-USB, Micro-SIM with eSIM possibility, 128 MB internal flash memory (220000 records)

Software
Configuration and firmware update: FOTA WEB (cloud-based solution), Teltonika Configurator (USB, Bluetooth)
Scenarios: Eco/green driving, over speeding, jamming, excessive idling, fall down, towing detection, crash detection, auto geofence, manual geofence, trip, immobilizer, iButton, DOUT control via call, DOUT control via ignition
Sleep modes: GPS sleep, online deep sleep, deep sleep, ultra deep sleep
Protocols: UDP/TCP/SMS
Data sending: Main, duplicate and backup servers
Security: Configuration password, SMS login and password, authorized GSM numbers list
Time Synchronization: GNSS, NITZ, NTP
Supported peripherals: Temperature and humidity sensor, universal BLE sensors.

Key specifications

GPS accessory type
GPS logger/tracker
Item number
21794240

General information

Manufacturer
Teltonika
Category
GPS navigation accessories
Manufacturer no.
TFT100TSRAB0
Release date
17.8.2022

GPS accessory properties

GPS accessory type
GPS logger/tracker

Battery properties

Battery
Chargers without battery
Battery type
Li-ion
Voltage
97 V
Capacity
1.80 Ah

Voluntary climate contribution

CO₂-Emission
Climate contribution
