Televes Optical

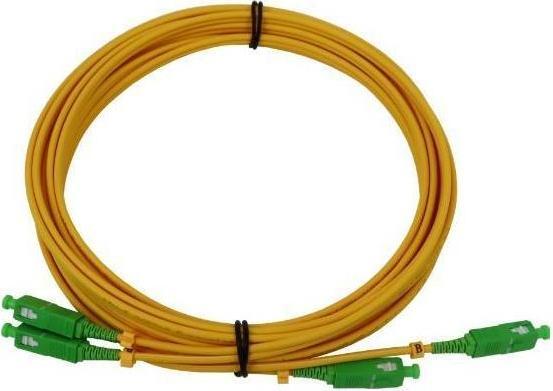

Pre-assembled optical patch cables for connecting network elements via single-mode fiber optic cables. As these are duplex patch cables, they are ideal for fiber optic networks where the same element is used for both upload and download. With SC/APC connectors, the cables can also be used in optical modules of T0X headends. The jacket is LSFH and is recommended for indoor installation.

The cable is equipped with a short sleeve at both ends, which facilitates installation in flush-mounted connection boxes and prevents increased attenuation due to unwanted bending. Additionally, the short sleeve makes it easier to insert the patch cable into conduits, reduces the space required for the connection, and results in a smaller bending radius.

Highlights

• Low attenuation and high reliability

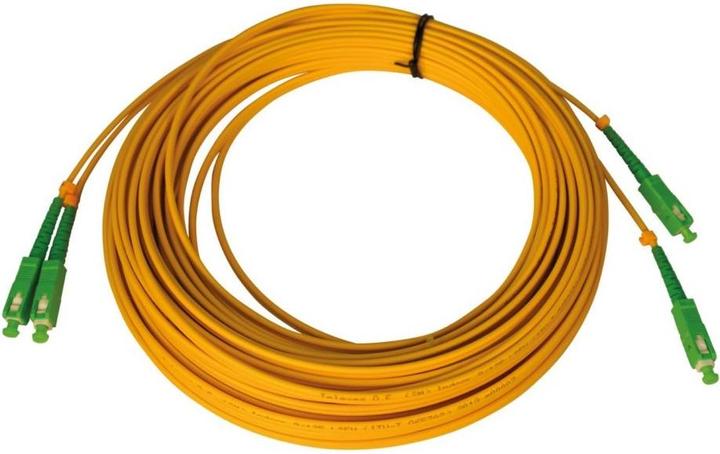

• Offset connectors at one end to facilitate passage through cable ducts
• Short sleeve at both ends: allows for a smaller bending radius and optimal fit in the connection area
• Labels for identifying the optical cables are included
• Euroclass Dca-s2,d2,a1
• Fiber type: ITU-T G.657.A2
• Duplex patch cable: two fiber optic cables
• LSFH jacket, color orange
• SC/APC connectors
• Available in various lengths

Technical Data
Euroclass - Dca
Euroclass: Smoke development - s2
Euroclass: Dripping of particles - d2
Euroclass: Acidity - a1
Fiber types - Single-mode (ITU-T-G.657A2)
Fiber type category - OS2
Fiber core diameter - μm 9
Fiber coating diameter - μm 125
Sheath diameter at fiber - μm 250
Cable structure - Solid core
Fiber structure diameter - mm 0.85
Outer jacket diameter - mm 3
Outer jacket material - LSFH
Gel for protection - No
Attenuation 1310nm - dB/km < 0.8
Attenuation 1490nm - dB/km < 0.8
Attenuation 1550nm - dB/km < 0.8
Insertion loss connector 1 - dB < 0.5
Insertion loss connector 2 - dB...
