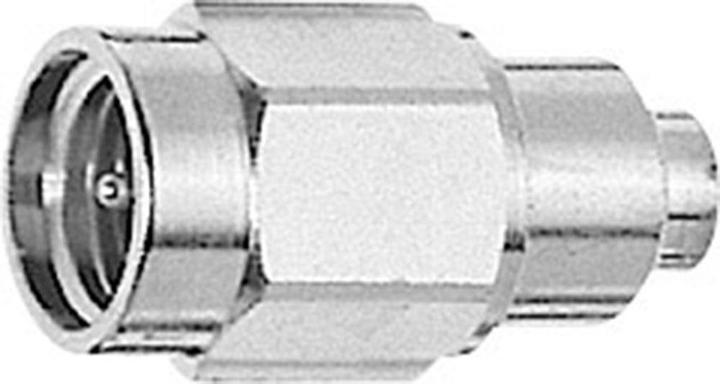

Telegärtner Terminating resistor J01152R0011 Gold 1 pc.

Ratings
Delivered between Tue, 1.7. and Thu, 3.7.
7 items in stock at third-party supplier
Supplied by
JACOB DE
Free shipping starting at 50.–

Product details

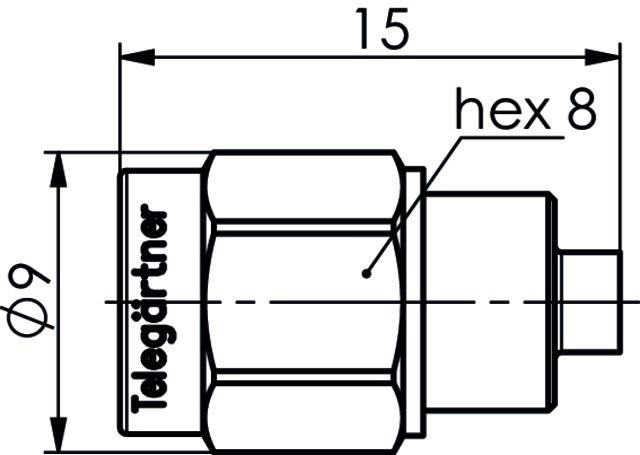

Telegärtner R-SMA Termination Resistor 100024788

Manufacturer: Telegärtner
Description: R-SMA Termination Resistor (M) AU, 1W, 23dB/6GHz
Type: 100024788
Connection Type: Coax (IEC)
Application: Antenna/SAT Technology
DC Isolation: no
Resistance: 6 Ohm

Termination resistors are used to prevent reflections by connecting them as loads to an open signal output or an RF line. They are available with a characteristic impedance of 50 Ohm. Typical applications for termination resistors include open ports in transmission systems and during the calibration of RF measuring devices.

Fire Protection Class: Not relevant
Dripping Burning: Not relevant
Smoke Development: Not relevant
Acid Development: Not relevant
Design: m
Max Frequency: 6 GHz
Max Power: 1 W
Surface: Gold

Return Loss:
typ.:
1 GHz: -38 dB
2 GHz: -34 dB
3 GHz: -28 dB
6 GHz: -23 dB

EAN: 4018359296834.

Key specifications

Plug type
SMA
Cable + connector type
Cords
Item number
14263785

General information

Manufacturer
Telegärtner
Category
Cables + Plugs
Manufacturer no.
J01152R0011
Release date
14.11.2020
External links
Manufacturer's site (de)

Colour

Colour
Gold

Material

Material group
Metal
Material
Gold

Cable + Connector Features

Cable + connector type
Cords
Plug type
SMA
Manufacturer Type
100024788

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Terminating resistor J01152R0011 Gold 1 pc.

30-day right of return
24 Months Warranty (Bring-in)
