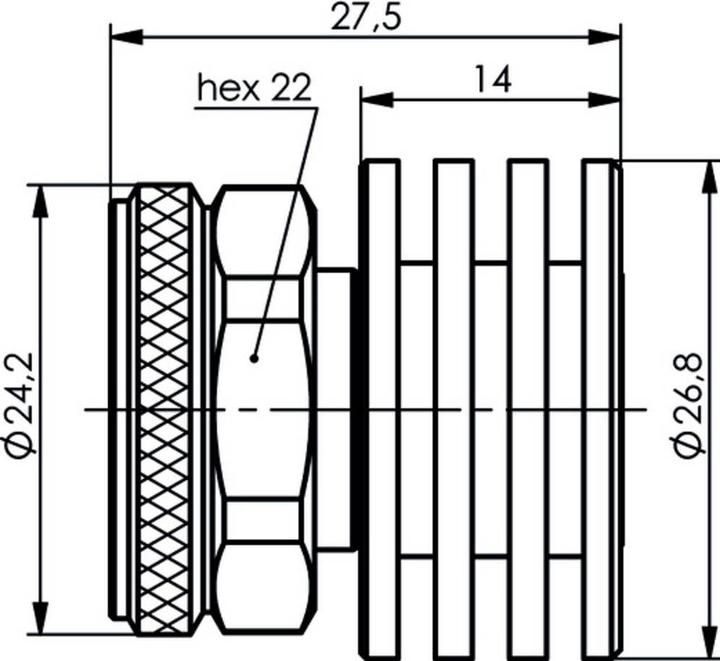

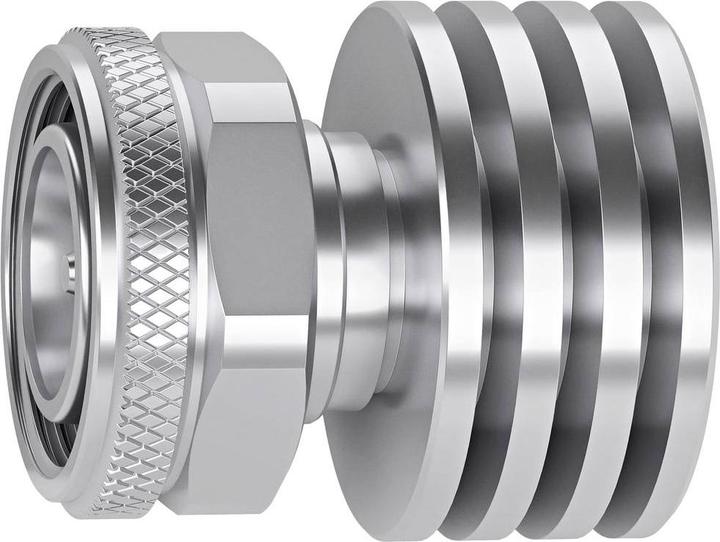

Telegärtner Terminating resistor

The compact, installation-friendly 4.3-10 connector series has been developed to meet the increasing demands of mobile communication applications. Its small size and weight cater to the miniaturization of mobile network elements. Nevertheless, it achieves excellent values regarding return loss and passive intermodulation (PIM). The new connector series is also highly versatile, as three connector variants fit onto a universal socket. All connectors in the 4.3-10 series comply with the IP68 protection class requirements and can be used in a temperature range of -40 °C to +85 °C due to their outstanding material properties. In addition to the standard range, custom designs for higher temperature ranges are available upon request. The screw-type version is mechanically more robust due to the secure screw connection and, despite using high-quality materials, is a more cost-effective solution due to its simpler design. 4.3-10 connectors are used in outdoor telecommunications applications, in mobile communications, in industry, as well as in messaging and radar technology. Notes: IP67 version: mS Max. frequency: 6 GHz Max. power: 1 W Return loss: typical: 1 GHz: -40 dB, 2.5 GHz: -35 dB, 6 GHz: -27 dB.
