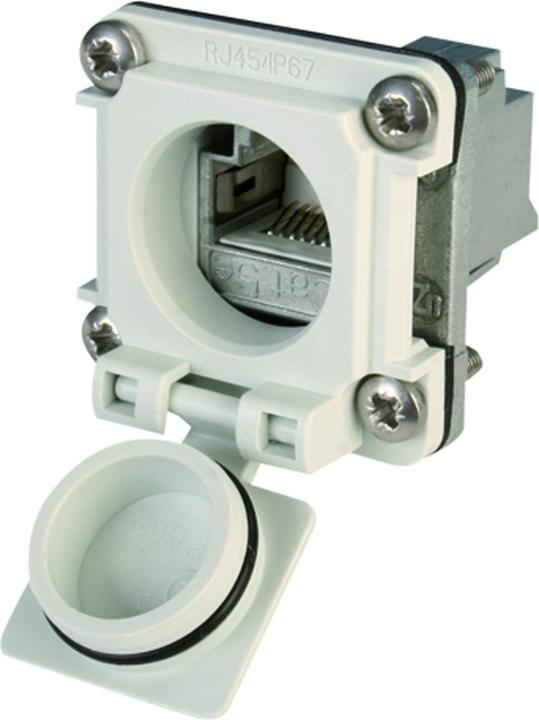

Telegärtner RJ45 connector STX V6 flange set variant 6

The RJ45 connector STX V6 flange set variant 6 from Telegärtner is a highly advanced solution for the reliable connection of network cables. This product meets the requirements of Category 6A according to ISO/IEC and is designed for use in modern Ethernet networks. With compliance to 10 Gigabit Ethernet (IEEE 802.3an), this connector offers a high data transfer rate, making it ideal for applications that require a fast and stable connection. The RJ45 connector is equipped with a contact over-bending protection that ensures a lifespan of up to 750 mating cycles. Additionally, it is suitable for Power over Ethernet (PoE+), making it a versatile choice for various installations. The integrated cable retention allows for the use of cables with a diameter of up to 9 mm, while the universal mounting dimensions enable easy installation in standard cutouts. The flange set is also combinable with a design-capable module holder, providing additional flexibility during installation.

• Cat.6A compliant according to IEC 60603-7-51
• 10 Gigabit Ethernet compliant (IEEE 802.3an)
• Suitable for PoE+ according to IEEE 802.3at
• Contact over-bending protection for up to 750 mating cycles
• Integrated cable retention for cable diameters up to 9 mm.
