Telegärtner Patch cable

S/UTP, CAT6, 2 m, Minimum order 2
CHF11.23/1m
Ratings
BrandMore from Telegärtner
Delivered Wed, 3.9.
Only 2 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

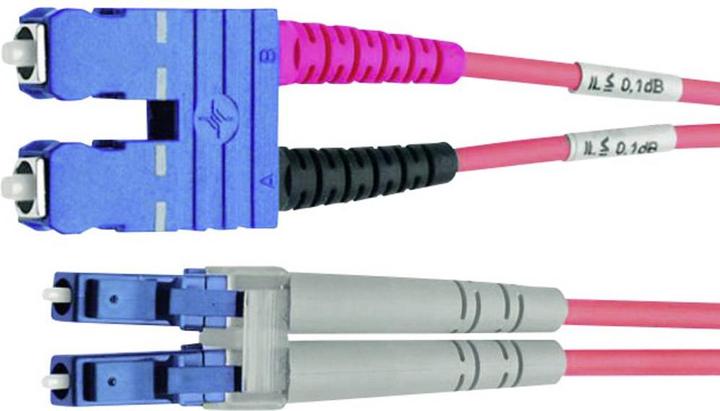

The LC-Duplex - SC-Duplex fiber optic adapter cables from Telegärtner are suitable for use within structured cabling (ISO/IEC 11801), for example in data centers, office buildings, telecommunications rooms, and any other locations where fiber optic patch cables are needed. Patch cables are subjected to the highest loads and the greatest wear. That’s why many users rely on patch cables from Telegärtner: optimally coordinated components, the highest quality standards, a fully controlled manufacturing process, and 100% attenuation measurement ensure safe and reliable network operation. The patch cables in categories OM3-OM5 and OS2 also feature bend-optimized fibers to enable optimal transmission even in tight spaces. Patch cables in standard lengths of 1, 2, 3, 5, and 10 meters are available from stock, and additional variants can be easily and quickly configured.

Features:

  • Standard lengths: 1, 2, 3, 5, and 10 m, additional variants configurable
  • Cable type: Duplex Zipcord 2.8 x 5.7, LSZH
  • Connector S.1: SC-Duplex, Connector S.2: LC-Duplex
  • OS2, crossed (according to ISO/IEC 11801): Yes
  • Design: PC
  • IL typical < 0.25 dB
  • RL typical > 40 dB
  • Plug cycles: > 1000
  • Fire protection class: Not relevant
  • Burning drip: Not relevant
  • Smoke development: Not relevant
  • Acid development: Not relevant
  • Fiber type: E9/125 OS2
  • Housing color: blue
  • Cable color: yellow
  • Connector design: 1st side SC Duplex, 2nd side LC Duplex
  • Length: 2 m
  • Cable dimensions mm: 2.8 x 5.7.

Key specifications

Patch cable type
Fibre optic cable
Contact assignment
straight
Fibre type
Single Mode
LWL plug connectors
Duplex
Item number
14200272

General information

Manufacturer
Telegärtner
Category
Network cables
Manufacturer no.
L00891A0017
Release date
13.11.2020
Minimum order
2

Colour

Cable colour
Yellow

Material

Material
Fiber optic

Cable properties

Connection A
LC
Connection B
sc
Cable Application
Lwl
Cable design
Round
Plug type
Flat
Cable connection
Connection (m/m)
Temperature range
-5° - 55° C

Patch cable properties

Patch cable type
Fibre optic cable

Twisted-pair cable properties

Cable category
CAT6
Contact assignment
straight
Shield
S/UTP

Fibre-optic cable properties

Fibre type
Single Mode
LWL plug connectors
Duplex
Fibre category
OS2
Number of fibres
1 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
125 µ Singlemode OS2 2 m, Fibre optic cable Duplex SC connector LC connector 9

Product dimensions

Diameter
15 mm
Length
2 m
Width
15 mm
Depth
230 mm
Weight
41.82 g
