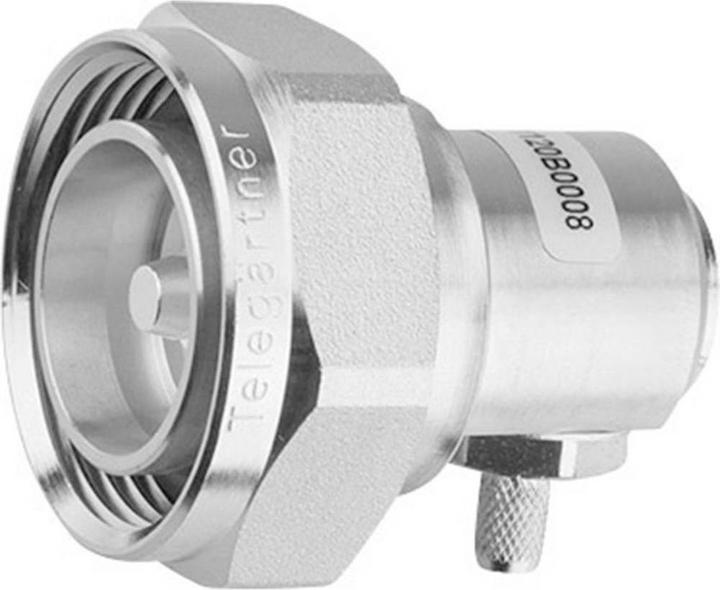

Telegärtner 7-16 DIN connector plug, angled 50 Ohm J01120C0010 1 pc.

Minimum order 2
was CHF24.45
Ratings
Delivered between Wed, 21.5. and Thu, 22.5.
Only 2 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

The 7-16 DIN connector from Telegärtner is a high-quality, angled plug specifically designed for use in mobile communication devices. With an impedance of 50 ohms and the capability to transmit frequencies of up to 7.5 GHz, this connector provides a reliable solution for demanding applications. The construction from tinned brass ensures high corrosion resistance and durability, while the weatherproof design offers additional protection against environmental influences. The connector is suitable for various cable types, including flexible, conformable, semi-rigid, and braided cables, and allows for different connection methods such as soldering, clamping, or crimping. These features make the 7-16 DIN connector ideal for use in radio base stations and testing equipment, where both vibration resistance and environmental protection are required.

  • High-frequency transmission up to 7.5 GHz
  • Weatherproof construction for environmental protection
  • Suitable for various cable types
  • High corrosion resistance due to tinned brass
  • Various connection methods: soldering, clamping, or crimping.

Key specifications

Plug type
DC connector
Cable + connector type
Male
Item number
22768296

General information

Manufacturer
Telegärtner
Category
Cables + Plugs
Manufacturer no.
J01120C0010
Release date
21.10.2022
External links
Manufacturer's site (de)
Minimum order
2
Minimum order
2

Material

Material group
Metal
Material
Tin-plated brass

Cable + Connector Features

Cable + connector type
Male
Plug type
DC connector
Max. temperature
155 °C
Min. temperature
-55 °C
Manufacturer Type
J01120c0010
Connectors Design
Plug, angled

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
7-16 DIN connector Plug, angled 50 Ohm J01120C0010 1 pc.
