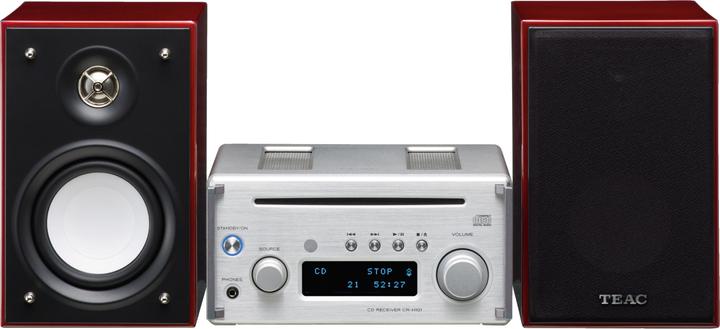

The HR-X101 is a high-resolution micro-component system designed according to a novel concept: It combines CD receiver components with desktop audio technologies from TEAC, which we have refined and optimized
over many years.
The receiver has a USB-DA converter that supports playback of high-resolution audio files and can handle a variety of audio sources such as CDs, Bluetooth® and USB. The housing is made of elegant turned aluminium plates. The top and side panels are approximately 3 mm thick, and the front panel is approximately 5 mm thick. This makes the case extremely robust and resistant to external interference. The case, which fits effortlessly on two palms, has a ventilation grille and side protection strips like those of a high-end power amplifier.
The design gives a first impression of the power and precision of the device. The volume and audio source selection controls on the front of the unit are also made of machined aluminium, giving an impression of coolness and precision typical of solid metal. The result is a very pleasant feel to the controls. The DA converter, a core component of digital audio equipment, is a Burr Brown PCM1795, which offers a wide dynamic range and low distortion potential and has long been used in high-end digital-to-analog converters. This allows playback from a variety of sources and allows the musical expression to be fully appreciated.

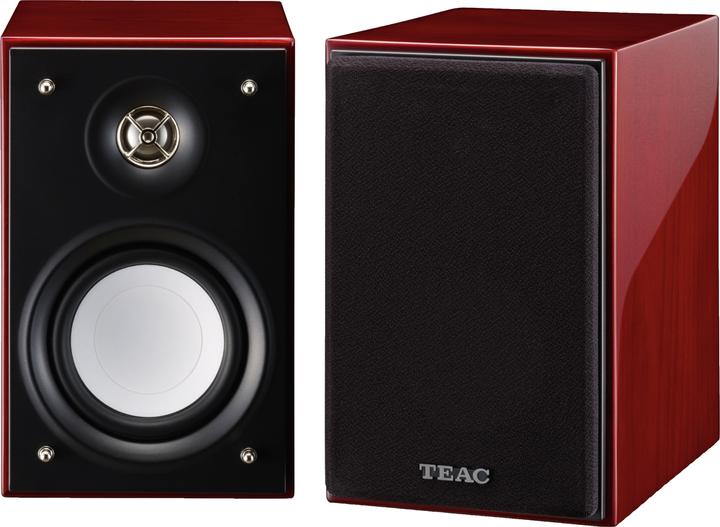

The speaker cabinets are made of red cherrywood panels and are finished with piano lacquer to give them a particularly elegant look. The contrast between metal housing and receiver makes the system a real eye-catcher. The two-way speaker units are equipped with PEI tweeter domes that reproduce high-resolution audio sources with outstanding high-frequency signal reproduction and breathtaking clarity. The rubber edges are characterised by maximum elasticity and allow a wider range of movement. The cone woofers also achieve an excellent f0 value (minimum resonance frequency). Despite their size, the woofers produce a surprisingly detailed and natural low-frequency sound.
The receiver has a USB-DA converter that supports playback of high-resolution audio files and can handle a variety of audio sources such as CDs, Bluetooth® and USB. The housing is made of elegant turned aluminium plates. The top and side panels are approximately 3 mm thick, and the front panel is approximately 5 mm thick. This makes the case extremely robust and resistant to external interference. The case, which fits effortlessly on two palms, has a ventilation grille and side protection strips like those of a high-end power amplifier.
The design gives a first impression of the power and precision of the device. The volume and audio source selection controls on the front of the unit are also made of machined aluminium, giving an impression of coolness and precision typical of solid metal. The result is a very pleasant feel to the controls. The DA converter, a core component of digital audio equipment, is a Burr Brown PCM1795, which offers a wide dynamic range and low distortion potential and has long been used in high-end digital-to-analog converters. This allows playback from a variety of sources and allows the musical expression to be fully appreciated.
The speaker cabinets are made of red cherrywood panels and are finished with piano lacquer to give them a particularly elegant look. The contrast between metal housing and receiver makes the system a real eye-catcher. The two-way speaker units are equipped with PEI tweeter domes that reproduce high-resolution audio sources with outstanding high-frequency signal reproduction and breathtaking clarity. The rubber edges are characterised by maximum elasticity and allow a wider range of movement. The cone woofers also achieve an excellent f0 value (minimum resonance frequency). Despite their size, the woofers produce a surprisingly detailed and natural low-frequency sound.
| Tuner | DAB+, FM |
| Documents | |
| Item number | 5974866 |
| Manufacturer | |
| Category | |
| Manufacturer no. | TE09HX1DSC50 |
| Release date | 10/31/2016 |
| Colour group | Brown, Silver |
| Exact colour description | Silver |
| Hi-fi system design | Main unit with speakers |
| Music power (RMS) | 2x 26 W |
| Tuner modulation type | DAB+, FM |
| Audio inputs | Optical TOSLINK (1x), Stereo Cinch RCA (1x) |
| Audio outputs | Headphone jack 3.5mm (1x), Subwoofer (1x) |
| USB features | USB-D/A converter |
| Scope of delivery | Cable antenna, Power cord, Remote control incl. batteries, Speaker cables |
| Weight | 6.20 kg |
| Weight | 3 kg |
Specifications may include unverified machine translations.
