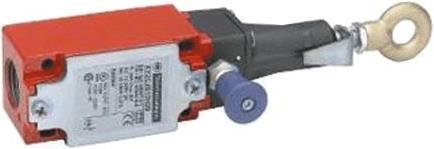

TE Sensors Rope Pull Switch, RH/LH, Pg13.5, 2NC 1NO

Area: Safety Switch
Series: XY2CJ
Reset Button: Yes
Contact Configuration: 3P
Contact Configuration: Normally Closed/2 Normally Open
Mounting Position: Right, Left
Maximum Cable Span: 20 m
Maximum Current: 1.5 A @ 240 V AC, 100 mA @ 250 V DC
Maximum AC Voltage: 240 V
Maximum DC Voltage: 250 V
Housing Material: Zamak
Number of Cable Entries: 1
Cable Entry Size: PG13.5
Length: 200.9 mm

IEC 60947-5-5. CE, UL, cULus, NiDS, CCC. The emergency pull cord switch XY2CJ from Telemecanique is designed to prevent harm to people and machines when a standard emergency stop function is not available. It is easy to install and provides quick visual confirmation of the switch status for machine restart. Typical applications include woodworking machines, scissors, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, painting shops, and surface treatment operations. Certified according to UL with NiSD per IEC 60947-5-5 and UL NiSD object category. An integrated spring ensures functionality is maintained in the event of a spring failure. Quick mounting and adjustment with tensioning accessories. Color-coded sections (green and yellow) on the pull release switch provide easy visual confirmation of the switch status for a rapid machine restart. Up to 20 m cable length with XY2CJS and up to 30 m cable length with XY2CJL; XY2CJR rotary head with four positions, rotatable by 90°. Various electrical connection options available. Protection class IP66/IP67.
