TE Sensors Reader Osisense Xg Hf Panel Mounting Pnp

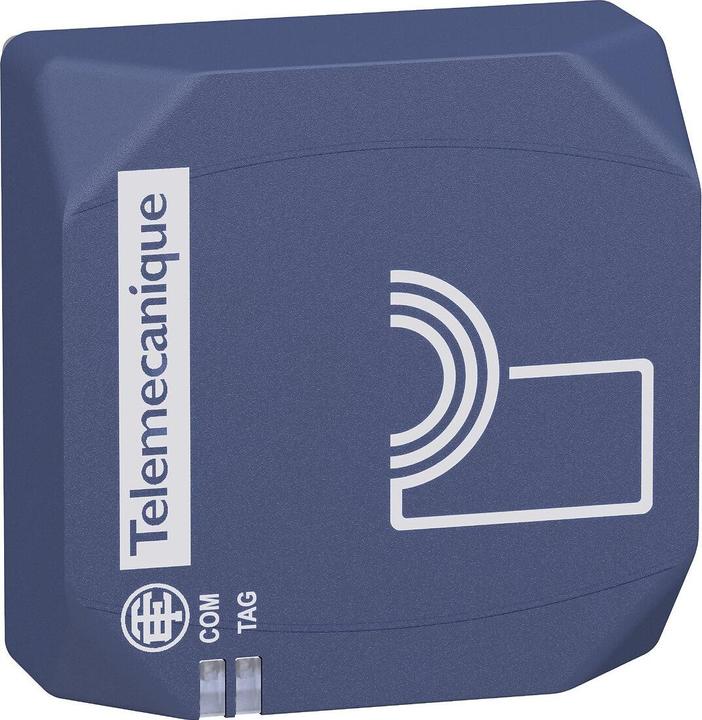

STHU RFID Station XGCS491B201

Manufacturer: STHU
Designation: RFID station with switching output 22 mm M12
Type: XGCS491B201
Frequency: 0 to 13.56 MHz
Radio protocol: ISO 15693
Max. Range: 70 mm
Memory type: other
Housing material: other
Width: 40 mm
Height: 40 mm
Depth: 40 mm
Diameter: 22 mm
Weight: 57 g
Protection class (IP): IP65/IP67
Color: blue

This standalone intelligent antenna is part of the XG series, a range of RFID readers and tags. RFID, or Radio Frequency Identification, refers to radio frequency identification systems operating at 13.56 MHz. It is mounted using a 22 mm standard hole on a control panel and tightened by hand with a single locking nut. The locking nut is supplied with the smart antenna. This intelligent antenna with a discrete PNP output directly controls a relay or contactor. Depending on the associated tags, its detection range is between 20 mm and 70 mm. Its protection class is IP65. This antenna operates in an ambient temperature range of -40 °C to +70 °C. It has a compact size of 40 mm x 40 mm x 40 mm and an M12 connector for power supply. This intelligent antenna, with its sleek, clean design and no screws on the front, is intended for use in industrial environments, particularly for cleaning applications in the medical, food, and beverage industries. It meets the standards EN 301489-1, EN 301489-3, EN 300330-1, and EN 300330-2, as well as certifications CE, cULus, IC, FCC Part 15. Dedicated electronic tags and separately orderable accessories such as network T-connectors and M12 cables are available to facilitate daisy-chain connections. Designed for quick and efficient access control. Easy to install and configure. Robust and compact products that are globally compatible.
