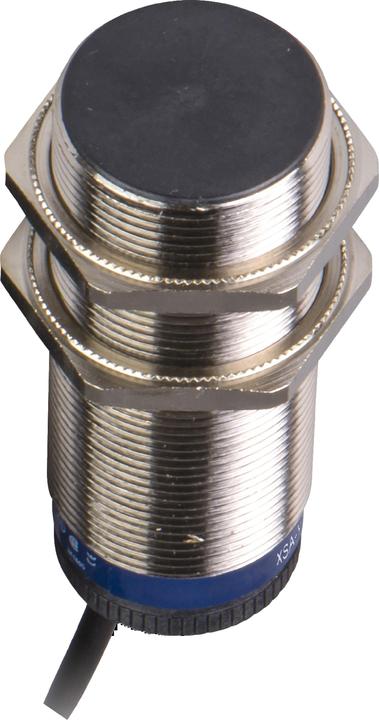

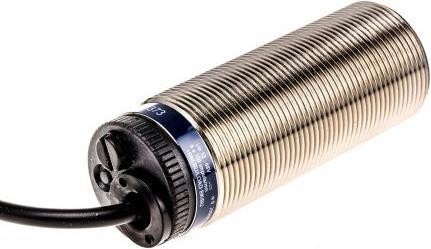

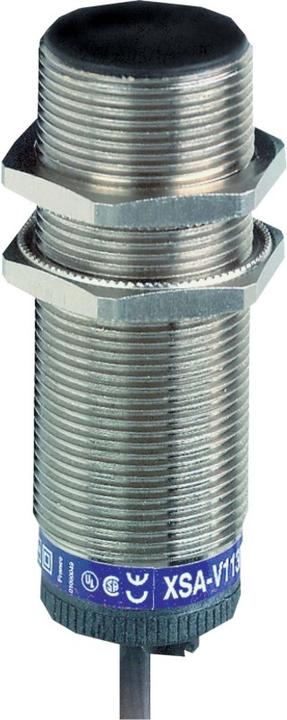

TE Sensors Inductive Sensor, M30, Sr 10mm PNP, 2m

Housing design: cylindrical
Thread size: M30 x 1.5
Output type: PNP-NC
Detection range: 10 mm
Connection type: cable
Supply voltage: 12 to 48 Vdc
Length: 81 mm
Max. DC voltage: 58 V
Mounting type: flush mounting
Switching current: 200 mA
Housing material: metal
Short-circuit and overload protection: yes

M30 rotation monitoring. The cylindrical inductive proximity sensors of the OsiSense XS series from Telemecanique Sensors are designed for non-contact detection of metal objects up to 60 mm. Features and benefits include speed limit adjustment via a potentiometer (120 to 3000 pulses/minute for high-speed variants and 6 to 150 pulses/minute for low-speed variants), LED status indicator, brass housing for flush mounting, pre-assembled with 2 m cable, reverse polarity protection, short-circuit protection (only for DC versions), and environmental rating up to IP67.

Typical applications: The inductive proximity sensors of the OsiSense XS series are ideal for use in the food and beverage industry.
