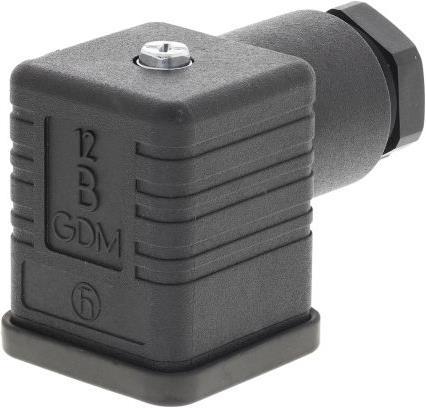

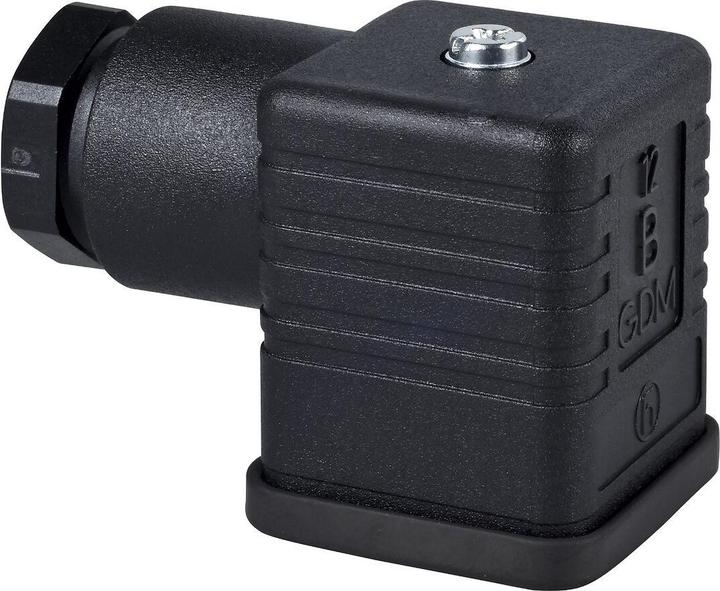

TE Sensors Connect fem DIN 43650A, 4 pin, elbow

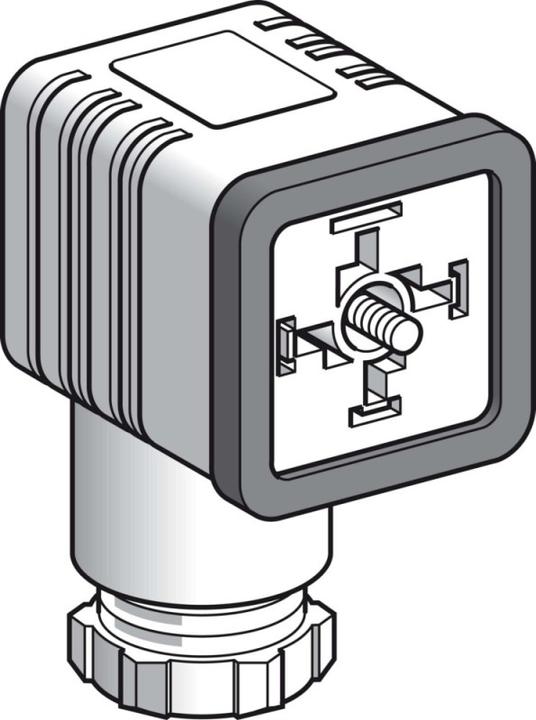

Telemechanique Sensors Connection Box XZCC43FCP40B

Manufacturer: Telemechanique Sensors
Designation: Connection Box
Type: XZCC43FCP40B
Contact Design: Pin
Width: 30 mm
Height: 30 mm
Depth: 36 mm
Number of Poles: 4
Rated Current In: 16 A
Ambient Temperature: -40 to 125 °C
Rated Voltage: 250 V
Connectable Wire Cross-Section Fine-Wire Without Ferrule: 0 to 1.5 mm²
Connectable Wire Cross-Section Fine-Wire With Ferrule: 0 to 1.5 mm²
Connectable Wire Cross-Section Solid: 0 to 1.5 mm²
Connectable Wire Cross-Section Multi-Stranded: 0 to 1.5 mm²
Type of Electrical Connection: Screw Connection
Contact Coating Material: Other
Contact Material: Other
Insulation Body Material: Other
Housing Material: Plastic
Housing Coating: Uncoated
Type of Locking: None
Mounting Type: Screwed
Flammability Class of Insulation Material according to UL 94: Other
With Protective Conductor: No
Operating Temperature: -40 to 125 °C
Protection Class (IP), Mounted: IP65
EMC Version: No
With Seal: No

Telemechanique Sensors Connection Box XZCC43FCP40B: Additional Details
This product is part of the XZ series, a range of machine wiring accessories. This curved socket is equipped with a PG11 cable gland. It features a securing screw for attachment. It is a DIN 43650 A connector with a rated operating voltage of 250 V AC and a rated current of 16 A. It is equipped with screw terminals for cable connection. This is a product with a protection class of IP65. The housing is made of plastic and weighs 0.035 kg. It is suitable for railways, mobile devices, elevators, escalators, lifting equipment, material handling, conveyor technology, logistics, material processing, machine tools, packaging, robotics, as well as the food and beverage industry.
