Product details
Pressure indication type: Differential
Pressure display min: 1.3 bar
Pressure display max: 12 bar
Accuracy: 3.5
Output type: Relay
Medium: Air, fresh water, sea water
Process connection: G1/4
Connection: Screw terminals
Current max: 3 A AC, 100 mA DC
Supply voltage: 120 to 240 V AC, 250 V DC
Housing material: PC
Protection class: IP54
Operating temperature max: +70°C

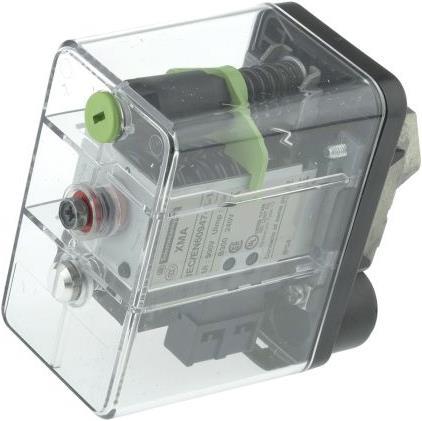

Diaphragm version - double threshold IP54. Adjustable differential pressure for air and water (including sea water). Polycarbonate/fiberglass housing with IP54 protection. Adjustment from outside.
Automation functions | Sensor function, Switch function |
Sensors | Air pressure sensor |
Transmission type | Cable |
Item number | 9944154 |
Manufacturer | TE Sensors |
Category | Home automation |
Manufacturer no. | XMAV12L2135 |
Release date | 22.10.2018 |
Sales rank in Category Home automation | 8 of 7223 |
Automation type | Sensor |
Automation functions | Sensor function, Switch function |
Sensors | Air pressure sensor |
Transmission type | Cable |
Power supply | Electrical connection |
Country of origin | China |
CO₂-Emission | 0 kg |
Climate contribution | CHF 0.11 |
Width | 57 mm |
Height | 113 mm |
Weight | 430 g |
