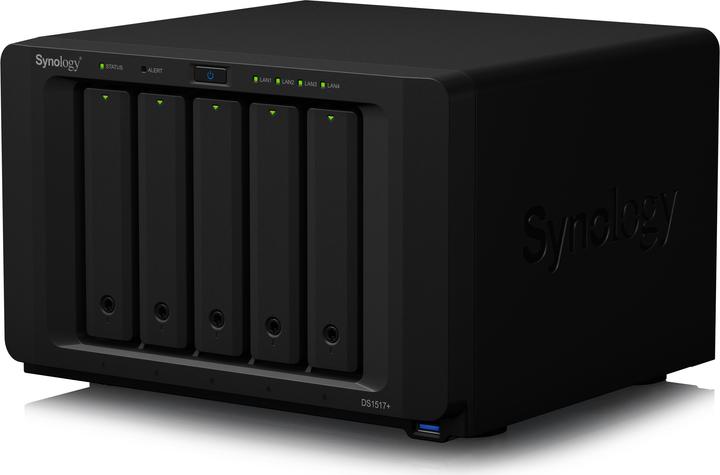

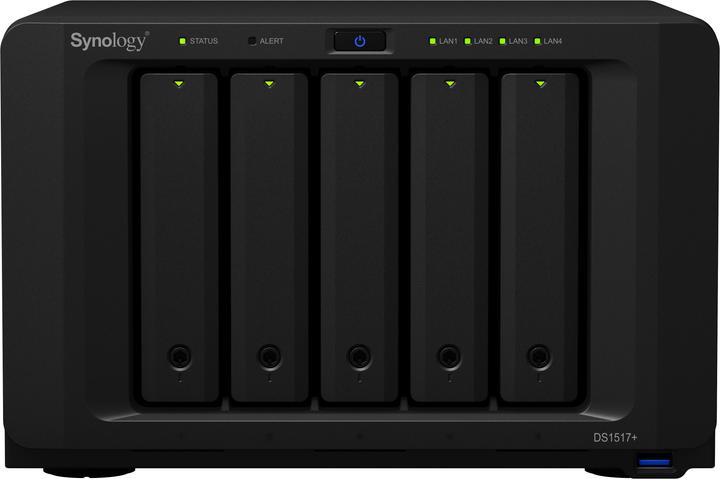

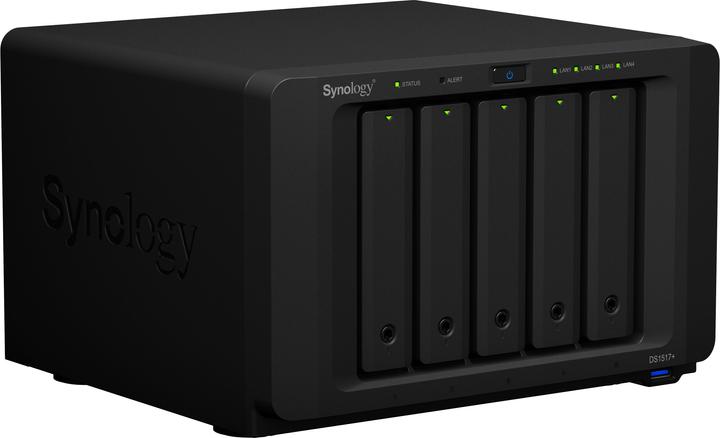

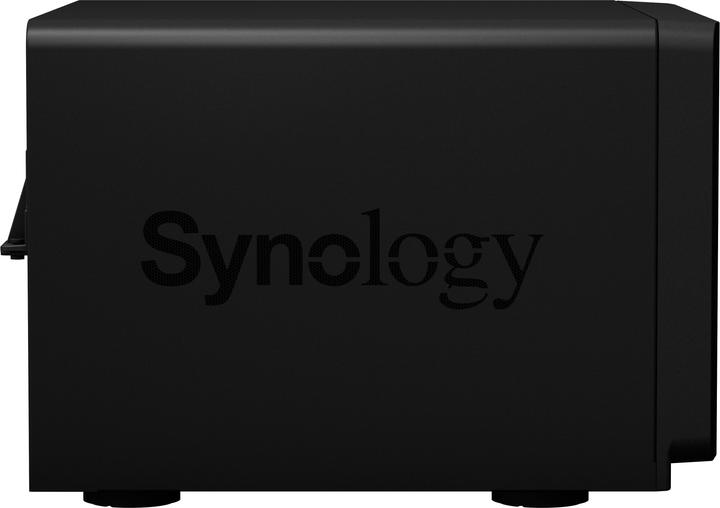

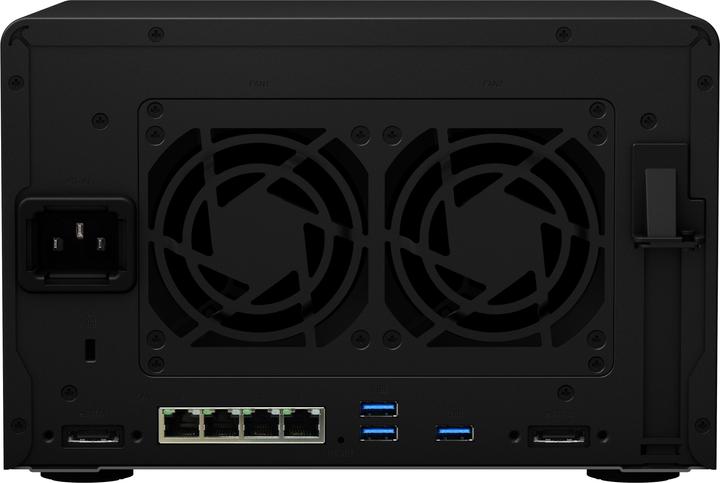

The Synology DiskStation DS1517+ features a quad-core processor with an AES-NI hardware encryption module, delivering excellent performance even with encryption. Enhance your storage further with the optional M.2 SSD adapter card for two SSD cache drives. The DS1517+ is the ideal storage solution for centralized data backup, protecting critical assets, and sharing files across various platforms. The Synology DS1517+ comes with a 3-year limited warranty from Synology.
The DS1517+ can be expanded to up to 15 drives with two Synology DX517 expansion units, allowing you to start small and easily scale your storage solution as your needs grow. The PCIe slot supports the optional PCIe M.2 SSD adapter card M2D17 for two M.2 SATA SSD slots, which can be used as SSD cache for significantly improved storage performance without occupying 3.5" drive bays. Additionally, the PCIe slot allows the DS1517+ to be expanded with 10GbE network interface cards.
Max. number of hard disks | 5 |
Memory | 8 GB |
RAID configuration | 0, 1, 10, 5, 6, JBOD |
Network connections | RJ45 Gigabit Ethernet (4x) |
Exact USB ports | USB-A 3.0 (4x) |
Item number | 6276463 |
Manufacturer | Synology |
Category | NAS |
Manufacturer no. | DS1517+ (8GB) |
Release date | 10.4.2017 |
External links |
Colour | Black |
Exact colour description | Black |
Model | Desktop |
Max. number of hard disks | 5 |
Hard drive form factor | 2.5", 3.5" |
RAID configuration | 0, 1, 10, 5, 6, JBOD |
Memory type | DDR3L-RAM |
Memory | 8 GB |
Maximum possible memory | 16 GB |
Add-on packages | Synology: antivirus, audio station, station of cloud, cloud sync, directory server, DNS server, printer server, DynDNS, download station, iTunes server, mail server, media server, DLNA Certification, photo station, RADIUS server, surveillance station, time backup, UPnP, video station, VPN server |
NAS features – model-specific | Max. number of groups 256, Max. number of user accounts 2048, Maximum concurrent CIFS/AFP/FTP connections 512, Maximum shared folders 512 |
Hard disk additional functions | Hot swapping |
Processor type | Intel Atom C2538 |
Clock frequency | 2.40 GHz |
Number of processor cores | 4 -Core |
Network connections | RJ45 Gigabit Ethernet (4x) |
Connectivity | RJ45, USB |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (4x) |
Internal connection options | PCI Express x8 (1x) |
Data ports | eSATA (2x) |
Number of camera licenses included | 2 x |
Max. number of cameras | 40 x |
Number of fans | 2 x |
Fan diameter | 80 mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2x RJ45 cable, Power cord |
Length | 24.30 cm |
Width | 25 cm |
Height | 16.60 cm |
Weight | 4.46 kg |
Length | 32 cm |
Width | 35.50 cm |
Height | 30 cm |
Weight | 5.62 kg |
