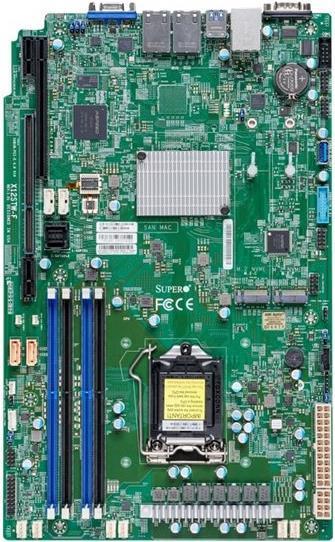

Supermicro X12STW-F INTEL C256 LGA1200 WIO
LGA 1200, Intel C256Product details
The Supermicro X12STW-F is a powerful motherboard designed for the LGA1200 socket and equipped with the Intel C256 chipset. It supports a variety of processors, including the Pentium and Xeon E3-2300 series, and offers a maximum RAM capacity of 128 GB across four DIMM slots. The board is ideal for applications that require high processing power and reliability. With a range of connectivity options, including USB 3.2 Gen 1 and Gen 2, as well as two Gigabit Ethernet ports, it allows for flexible integration into various systems. The onboard graphics are provided by the ASPEED AST2600 chip, offering additional graphics performance for basic applications. The X12STW-F is therefore an excellent choice for server and workstation applications that depend on stability and performance.
- Supports up to 128 GB DDR4 RAM with ECC functionality
- Provides 8 SATA-600 ports for mass storage with RAID support
- Integrated graphics solution with ASPEED AST2600 for basic graphical applications
- Two Gigabit Ethernet ports for reliable network connections
- Expansion options through PCI Express x16 slot (Gen 4).
Processor family | Pentium, Xeon E3 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4x |
Item number | 31466858 |
Manufacturer | Supermicro |
Category | Motherboards |
Manufacturer no. | MBD-X12STW-F-B |
Release date | 7.4.2022 |
Socket | LGA 1200 |
Chipset | Intel C256 |
Processor family | Pentium, Xeon E3 |
Memory form factor | U-DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 |
Supported memory speed | 2666 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |
Network connections | RJ45 Gigabit Ethernet (2x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I210-AT |
Max. port speed | 2 Gbit/s |
RAID configuration | 0, 1, 10, 5 |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (2x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 330.20 mm |
Width | 203.20 mm |
