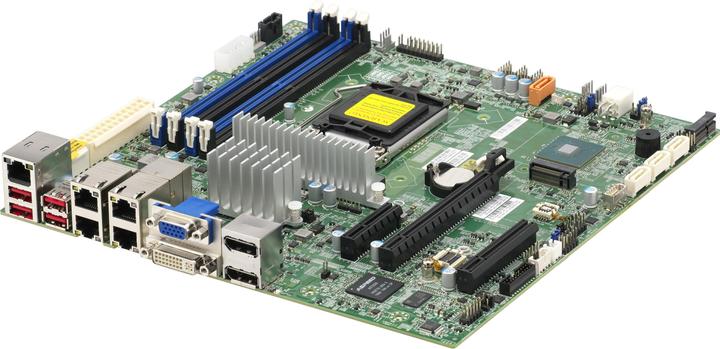

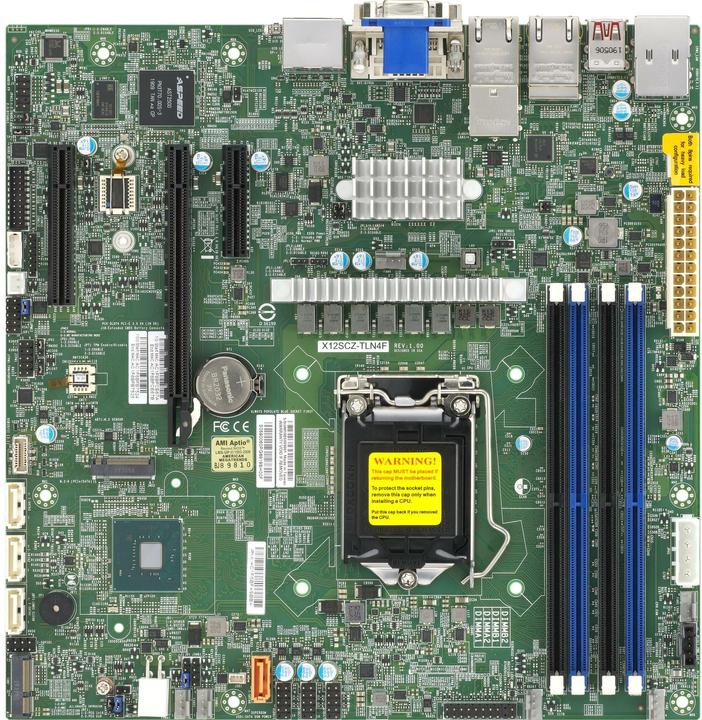

Supermicro X12SCZ-TLN4F

LGA 1200, Intel W480E, mATX
1Ratings
Delivered between Thu, 11.6. and Fri, 17.7.
Supplied by
free shipping

Product details

Supermicro motherboards support Intel and AMD processors and memory and offer the most advanced technologies in the IT sector - NVMe, M.2, 10GbE network connections. Thanks to their high scalability and a wide range of form factors, the boards can fulfil the needs of even the most demanding customers. Supermicro offers the widest range of servers for industrial use, which is reflected in the overall quality of the boards. Supermicro motherboards are manufactured using materials that ensure a long service life, thus minimising the failure rate. Supermicro motherboards undergo a generational change approximately every seven years, which ensures long-term support from the manufacturer. Each Supermicro motherboard also enables the free installation of special software for basic system monitoring.

Key specifications

Mainboard features
Error Correcting Code
Processor family
Celeron, Core i5 13th Gen
Number of memory modules (RAM)
4x
Memory type
DDR4-RAM
Internal connection options
S-ATA III (4x)

General information

Item number
17734164
Manufacturer
Supermicro
Category
Motherboards
Manufacturer no.
MBD-X12SCZ-TLN4F-O
Release date
30.9.2020
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1200
Chipset
Intel W480E
Mainboard features
Error Correcting Code
BIOS type
EFI AMI

Processor

Processor family
Celeron, Core i5 13th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
128 GB
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered

Graphics properties

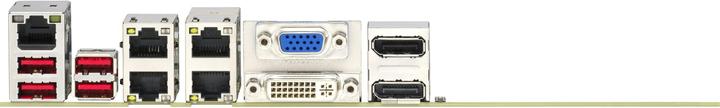

Video connections
DisplayPort (2x), DVI-D (1x)

Network

Network connections
RJ45 10 Gigabit Ethernet (2x), RJ45 Gigabit Ethernet (2x)
Ethernet controller brand
Intel
Ethernet controller
Intel X550
Max. port speed
10 Gbit/s

Audio

Chip
Realtek ALC888S
Audio Connections
Coaxial S/PDIF (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (3x)

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (6x), USB-A 3.2 Gen 2 (4x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
613.23 kg
Climate contribution
CHF 14.58

Scope of delivery

Scope of delivery
4 x Serial ATA cable

Product dimensions

Length
243.80 mm
Width
243.80 mm
Height
243.80 mm
Weight
400 g

Package dimensions

Length
28.80 cm
Width
28.60 cm
Height
6.30 cm
Weight
1.02 kg
