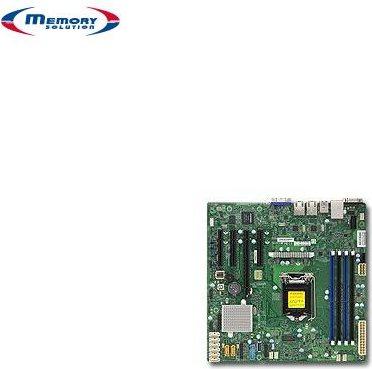

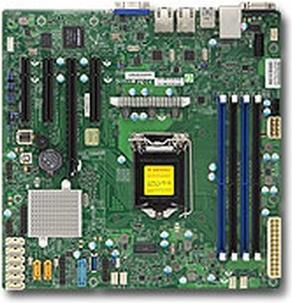

Supermicro X11ssm-F: Lga1151, E5-1200v5
LGA 1151, Intel C236, mATXCurrently out of stock
Product details
Supermicro's single processor Socket H4 designs feature the Intel C236/C232 chipset, which supports the Intel Xeon E3-1200 v5 processor family and Intel 6th Gen Core i7/i5/i3 processor family. Outstanding features include up to 64GB of fast DDR4 DRAM in 4 DIMMs, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. The motherboards support next-generation graphics controllers, 4K HD graphics resolution, and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability, and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation, and embedded applications.
Processor family | Xeon E3 v5 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (8x) |
Mainboard features | Trusted Platform Module |
Item number | 5836019 |
Manufacturer | Supermicro |
Category | Motherboards |
Manufacturer no. | MBD-X11SSM-F-O |
Release date | 10.3.2016 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel C236 |
Mainboard features | Trusted Platform Module |
BIOS type | Ami |
Processor family | Xeon E3 v5 |
Memory form factor | DIMM |
Number of pins | 184 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-1600, DDR4-1866, DDR4-2133, DDR4-2400 |
Max. RAM OC | 2400 MHz |
Supported memory speed | 2400 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |
Video connections | VGA (1x) |
Network connections | RJ45 Gigabit Ethernet (2x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (8x) |
Expansion slot | PCI Express x16 (1x) |
USB ports | USB-A |
CO₂-Emission | |
Climate contribution |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
Length | 30 cm |
Width | 30 cm |
Height | 5 cm |
Weight | 1.05 kg |
Specifications may include unverified machine translations.
