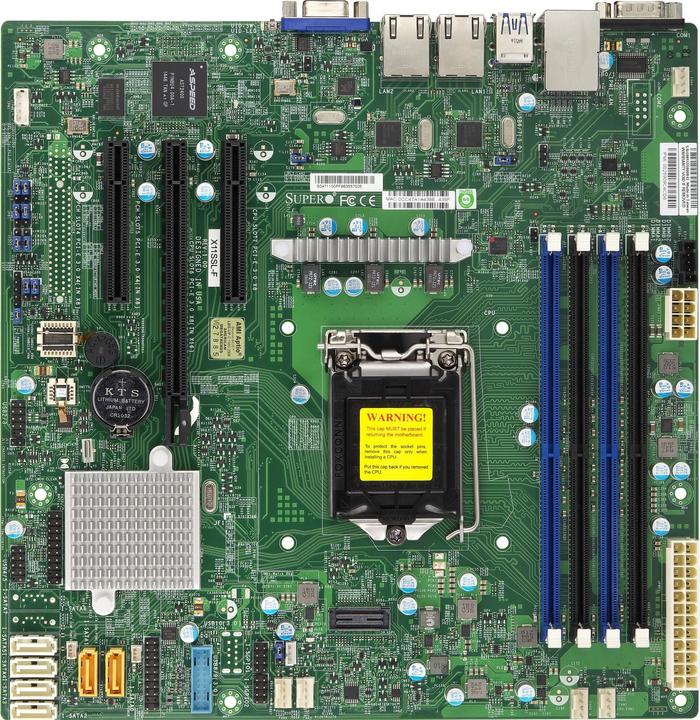

The Super X11SSL(-F) motherboard supports an Intel Xeon E3-1200 v5, 6th generation Core i3, Pentium, or Celeron processor in an LGA 1151 (H4) socket. With support for the Intel C232 chipset, DDR4 memory, SATA 3.0, Intel Node Manager, and Trusted Platform Module (TPM), this motherboard is optimized for entry-level server platforms.
Processor family | Xeon E3 v6 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Error Correcting Code |
Item number | 5834699 |
Manufacturer | Supermicro |
Category | Motherboards |
Manufacturer no. | MBD-X11SSL-F-O |
Release date | 2.7.2016 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel C232 |
Mainboard features | Error Correcting Code |
BIOS type | Ami |
Processor family | Xeon E3 v6 |
Memory form factor | DIMM |
Number of pins | 184 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2400 |
Supported memory speed | 2133 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |

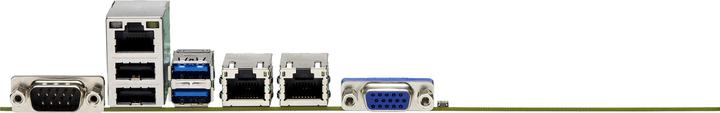

Video connections | VGA (1x) |
Network connections | RJ45 (2x) |
Ethernet controller | Gigabit Ethernet |
RAID configuration | 10 |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x8 (3x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x) |
CO₂-Emission | |
Climate contribution |
Length | 243.80 mm |
Width | 243.80 mm |
Height | 240 mm |
Length | 28.80 cm |
Width | 27.70 cm |
Height | 6.40 cm |
Weight | 945 g |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
The ?X11? in Supermicro's type designation stands for the Skylake generation, the appended ?-F? indicates remote maintenance. The X11SSL-F is equipped with the C232 chipset and the BMC Aspeed AST2400, which is responsible for IPMI 2.0, VGA output and RemoteKVM. The board also fits into flat rack-mounted enclosures: the DIMM slots are upwind, so to speak, and four enclosure fans can be connected...
