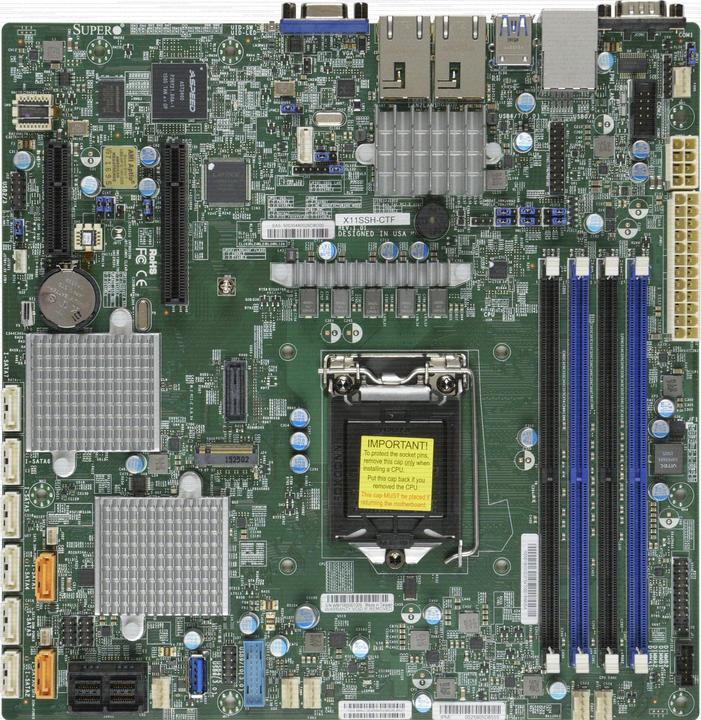

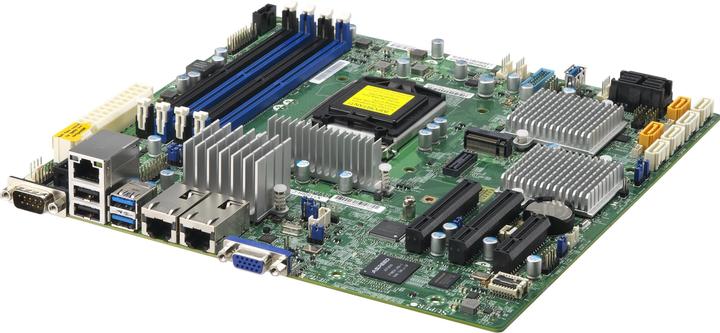

Supermicro X11ssh-Ctf: Lga1151, E5-1200v5
LGA 1151, Intel C236, mATXProduct details
Supermicro's single processor Socket H4 designs feature the Intel C236/C232 chipset, which supports the Intel Xeon E3-1200 v5 processor family and Intel 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMs, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. It supports next generation graphics controllers, 4K HD graphics resolution, and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability, and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation, and embedded applications.
Processor family | Core i3, Xeon E3 v6 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (8x) |
Mainboard features | Trusted Platform Module |
Item number | 5838297 |
Manufacturer | Supermicro |
Category | Motherboards |
Manufacturer no. | MBD-X11SSH-CTF-O |
Release date | 2.7.2016 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel C236 |
Mainboard features | Trusted Platform Module |
BIOS type | Ami |
Processor family | Core i3, Xeon E3 v6 |
Memory form factor | DIMM |
Number of pins | 184 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2400 |
Supported memory speed | 1600 MHz, 1866 MHz, 2133 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |

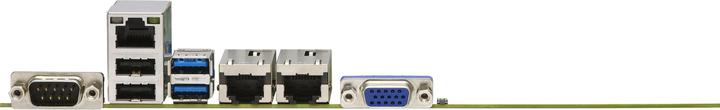

Video connections | D-Sub (1x) |
Network connections | RJ45 (2x) |
Max. port speed | 10 Gbit/s |
RAID configuration | 0, 1, 10 |
Internal connection options | S-ATA III (8x) |
Expansion slot | PCI Express x2 (1x), PCI Express x8 (1x) |
CO₂-Emission | |
Climate contribution |
Length | 243.80 mm |
Width | 244 mm |
Height | 244 mm |
