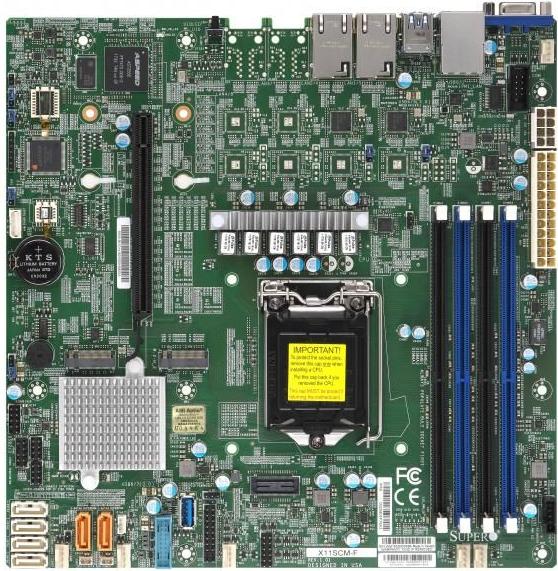

Supermicro Super Micro X11SCM-F

The Super Micro X11SCM-F is a powerful Micro ATX motherboard designed for a variety of applications. It supports a wide range of Intel processors, including the Celeron, Pentium, and Core i3 series, providing high flexibility for different system configurations. With an LGA 1151 socket and the Intel C246 chipset, it allows for a maximum RAM capacity of 128 GB, making it ideal for memory-intensive applications. The motherboard is equipped with four DIMM slots that support DDR4 SDRAM and offers various interfaces for mass storage, including M.2 and SATA. The integrated ASPEED AST2500 graphics card provides basic graphics functions, while the two Gigabit Ethernet ports ensure a reliable network connection. Therefore, the X11SCM-F is an excellent choice for server and workstation applications that require robust performance and expandability.

• Supports Intel processors from the Celeron, Pentium, and Core i3 series, as well as Xeon E-2100 and E-2200 series
• Maximum RAM capacity of 128 GB with ECC-supported DDR4 RAM
• Offers multiple mass storage interfaces, including 6 x SATA-600 and 2 x M.2
• Integrated ASPEED AST2500 graphics card for basic graphics functions
• Two Gigabit Ethernet ports for reliable network connections.
