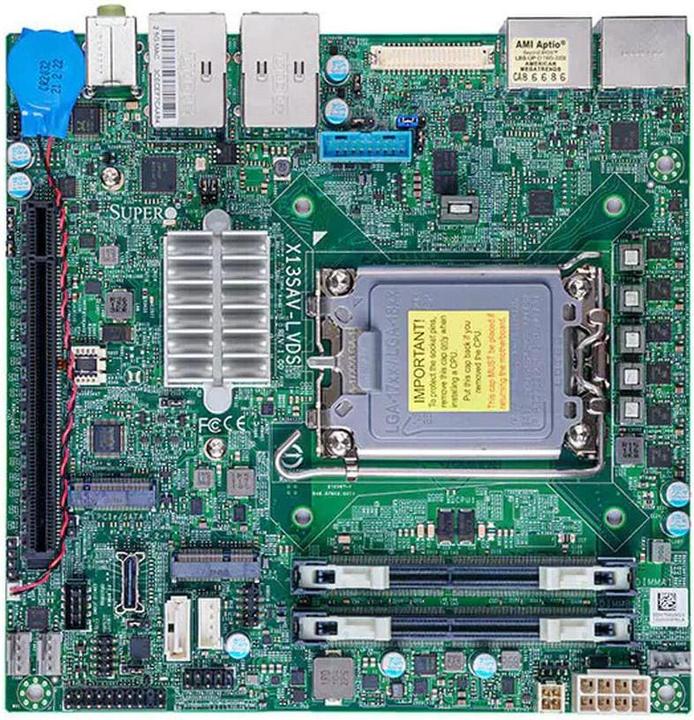

Supermicro Motherboard X13SAV-LVDS (retail pack)

LGA 1700, Mini-ITX
Ratings
Delivered between Fri, 3.10. and Fri, 24.10.
Supplied by
free shipping

Product details

The Supermicro Motherboard X13SAV-LVDS is a powerful Mini-ITX motherboard designed to support the 12th and 13th generation of Intel® Core™ processors. It features an LGA-1700 socket that accommodates a range of processors, including i3, i5, i7, i9, as well as Pentium and Celeron. With two SO-DIMM slots, it allows for the installation of up to 64 GB of DDR4 RAM with speeds of up to 3200 MHz. The motherboard is equipped with an Intel Q670E chipset and offers a variety of connectivity options, including multiple SATA III ports and M.2 slots for fast storage solutions. The integrated 2.5Gbit/s LAN functionality ensures a speedy network connection, while support for RAID configurations allows for flexible data storage. The X13SAV-LVDS is ideal for compact systems that require high performance and expandability.

  • Supports up to 64 GB of DDR4 RAM in two SO-DIMM slots
  • Integrated 2.5Gbit/s LAN ports for fast network connections
  • Offers RAID support for flexible data storage
  • Equipped with multiple video outputs, including DisplayPort and HDMI
  • Compatible with a variety of Intel® processors from the 12th and 13th generation.

Key specifications

Processor family
Core i3, Core i5, Core i7, Core i9
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
M.2 (1x), S-ATA III (5x)
Item number
35529060

General information

Manufacturer
Supermicro
Category
Motherboards
Manufacturer no.
MBD-X13SAV-LVDS-O
Release date
6.6.2023

Motherboard properties

Form factor
Mini-ITX
Socket
LGA 1700

Processor

Processor family
Core i3, Core i5, Core i7, Core i9

Memory

Memory form factor
SO-DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Memory chip
DDR4
Supported memory speed
2666 MHz, 2933 MHz, 3200 MHz
Memory type
DDR4-RAM

Graphics properties

Video connections
DisplayPort (2x), HDMI (2x)
Video connection version
HDMI 2.0

Network

Max. port speed
1 Gbit/s

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (1x), S-ATA III (5x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
5
Number of fan connector
1

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.0 (4x)

Power supply

Power connectors
8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
170.20 mm
Width
170.20 mm
Weight
2000 g

30-day right of return
36 Months Warranty (Bring-in)
