Supermicro Mainboard X13SCW-F proprietary WIO Socket 1700 DDR5-only Single

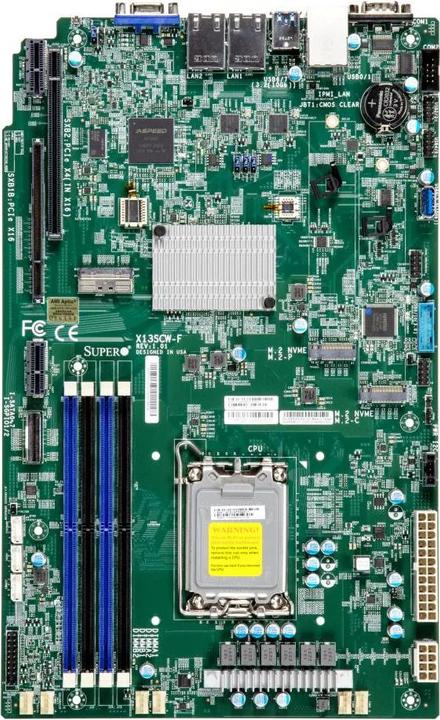

The X13SCW-F motherboard from Super Micro Computer is a powerful and versatile solution for modern server and workstation applications. It supports the Intel® Xeon® E-2400 Series processor as well as Pentium® processors and features a single socket LGA-1700 (Socket V0). With a maximum TDP of 95W, it is suitable for a variety of applications. The motherboard is equipped with the Intel® C266 chipset and offers 8 SATA3 ports that support RAID configurations. It allows for the installation of up to 128GB ECC Unbuffered DIMM DDR5 RAM with speeds of up to 4400 MHz across four DIMM slots. Additionally, it provides multiple expansion options, including PCIe 5.0 and PCIe 4.0 slots, as well as M.2 interfaces for fast storage. The dual LAN functionality with Intel® i210 Gigabit Ethernet ensures reliable network connections, while the USB ports offer flexible connectivity. The proprietary WIO form factor design allows for compact and efficient integration into various systems.

• Supports Intel® Xeon® E-2400 Series and Pentium® processors
• Maximum memory of 128GB ECC Unbuffered DIMM DDR5
• 8 SATA3 ports with RAID support
• Dual LAN with Intel® i210 Gigabit Ethernet controller
• Expansion options via PCIe 5.0 and M.2 interfaces.
