Supermicro A2SDI-2C-HLN4F

FCBGA1310, Mini-ITX
1Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

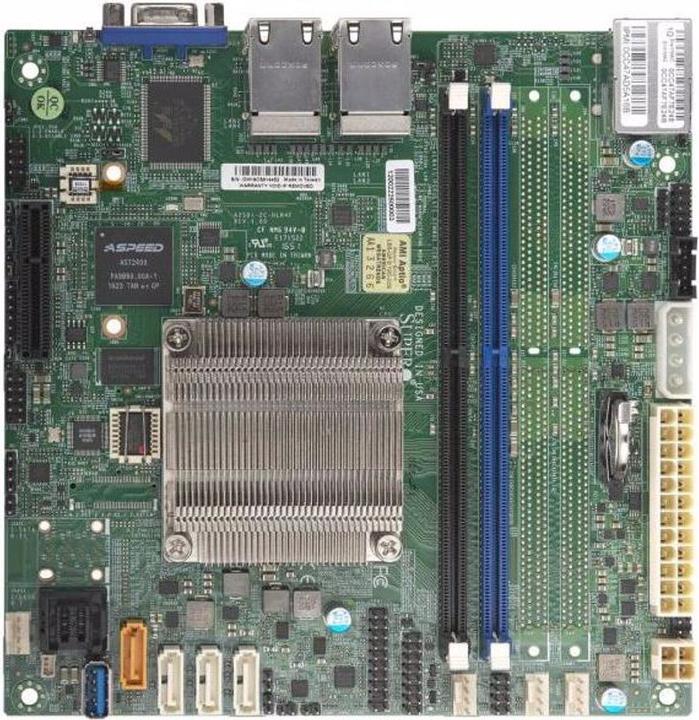

The Supermicro A2SDI-2C-HLN4F is a powerful Mini-ITX motherboard designed for use with the Intel Atom Processor C3338. It supports a maximum RAM capacity of up to 128 GB and offers both registered and unbuffered ECC DDR4 memory options. With two DIMM slots, it allows for flexible memory expansion that meets the demands of modern applications. The motherboard is equipped with a variety of I/O ports, including four Gigabit Ethernet ports that ensure high network speeds. Additionally, it features an integrated graphics solution via the ASPEED AST2400 chip and supports various expansion options through a PCI-E 3.0 slot. Its compact design and support for 12V DC power supply make it an ideal choice for space-saving systems and embedded applications.

  • Supports up to 128 GB DDR4 RAM with ECC and unbuffered options
  • Four Gigabit Ethernet ports for high network speeds
  • Integrated graphics via ASPEED AST2400
  • Expansion options through a PCI-E 3.0 slot
  • Flexible I/O configuration adjustable via BIOS.

Key specifications

Processor family
Atom
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (8x)
Mainboard features
Error Correcting Code
Item number
10255024

General information

Manufacturer
Supermicro
Category
Motherboards
Manufacturer no.
MBD-A2SDI-2C-HLN4F-O
Release date
27.9.2017

Motherboard properties

Form factor
Mini-ITX
Socket
FCBGA1310
Mainboard features
Error Correcting Code
BIOS type
UEFI AMI

Processor

Processor family
Atom

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
2 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-1600
Max. RAM OC
1866 MHz
Supported memory speed
1866 MHz, 2133 MHz, 2400 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered, Unbuffered

Graphics properties

Video connections
VGA (1x)

Network

Network connections
RJ45 (4x)
Max. port speed
1 Gbit/s

Internal interfaces

Internal connection options
S-ATA III (8x)
Expansion slot
PCI Express x4 (1x)
PCI express version (max.)
3
Number of fan connector
4

Further connections

Exact USB ports
USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
I/O backplane

Product dimensions

Length
170.20 mm
Width
170.20 mm
Height
170.20 mm

Package dimensions

Length
26 cm
Width
27 cm
Height
12 cm
Weight
1 kg
