Product details

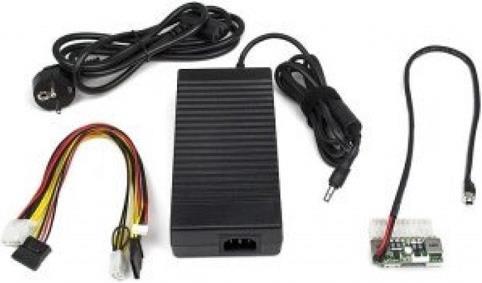

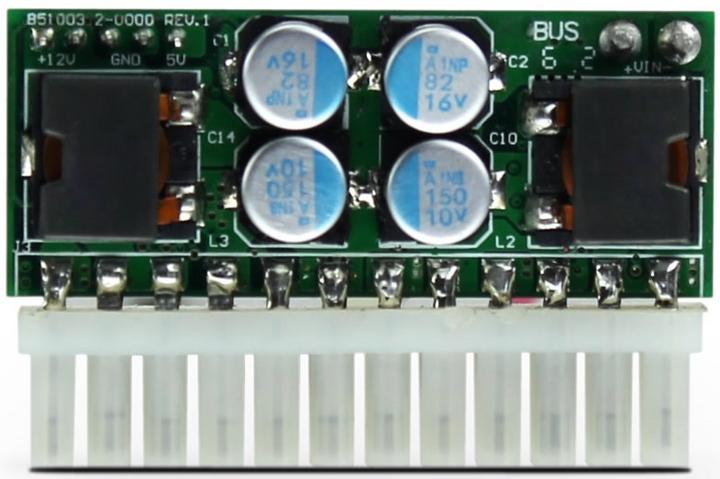

This is a set consisting of an external AC-DC adapter and an internal DC-DC converter board that is directly plugged into the 24-pin connector of the motherboard. Both components are connected using a hollow plug and corresponding socket.
The ST-NANO150 HTPC power supply is ideal for silent systems based on Streacom's innovative passive cases, but it can also be used in other HTPC configurations as long as the maximum total power capacity of 150 watts is not exceeded.
Form factor | HTPC |
Modularity | Modular cable management |
Internal connection options | 15-pin S-ATA (1x), 24-pin ATX power connector (1x), 4-pin CPU (1x), 4-pin Molex (1x) |
Item number | 438558 |
Manufacturer | Streacom |
Category | Power Supply PC |
Manufacturer no. | ST-NANO150 |
Release date | 18.12.2012 |
Form factor | HTPC |
Modularity | Modular cable management |
Internal connection options | 15-pin S-ATA (1x), 24-pin ATX power connector (1x), 4-pin CPU (1x), 4-pin Molex (1x) |
Cooling method | Passive |
Power protection features | OPP, SCP, UPP |
Power | 150 W |
CO₂-Emission | |
Climate contribution |
Length | 1.80 cm |
Width | 5.40 cm |
Height | 3.30 cm |
Specifications may include unverified machine translations.
