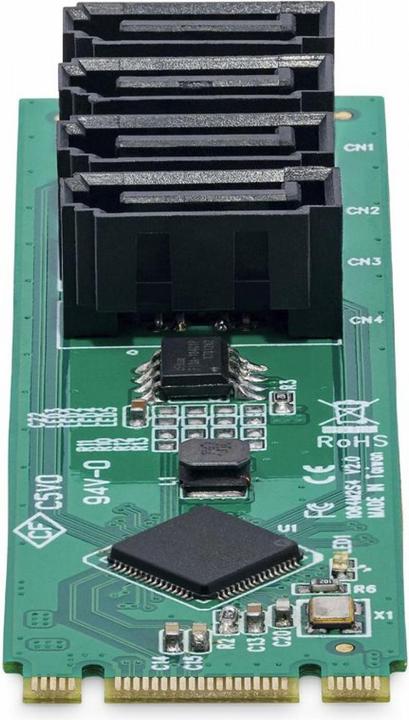

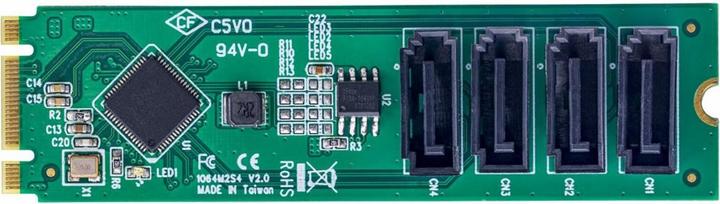

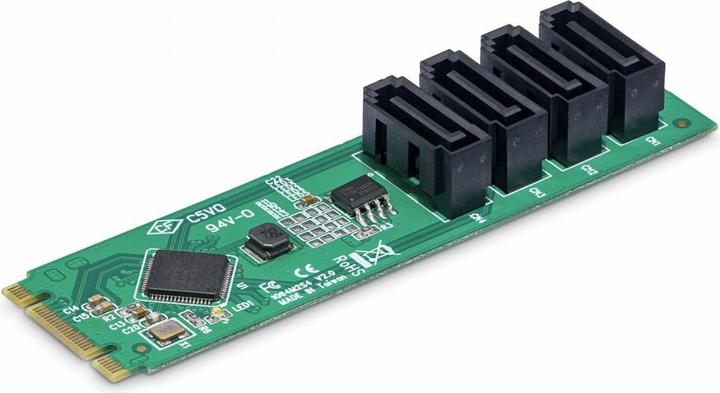

StarTech Adap 4-Port M.2 to SATA Adapter Card

Install four SATA drives via an M.2 slot for a high-density storage solution.

Add up to four independent SATA drives to a desktop through a single 2280 M.2 drive slot, maintaining SATA read/write speeds of 6 Gbit/s per drive.

Cost-effective storage expansion.

This configuration can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a budget-friendly increase in storage capacity. Four 50 cm SATA cables are included to quickly connect the HDDs or SSDs for fast installation.

Compatibility.

Drivers are automatically installed in most common operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces.

Applications.

This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation where large storage capacity and reliability are required.

ASMedia ASM1064 Chipset.

The 4-Port M.2 NVMe to SATA adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0.

Note: Only compatible with PCIe-based B-Key or M-Key M.2 drive slots.

Note: Not compatible with SATA-based M.2 drive slots.
