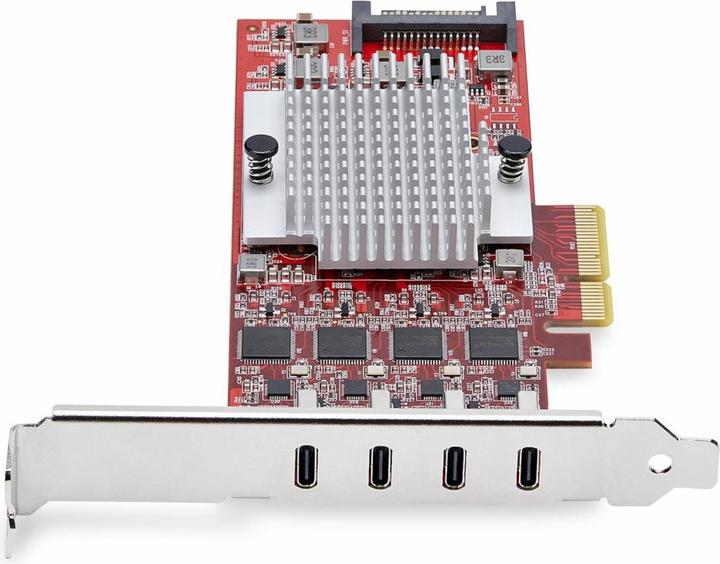

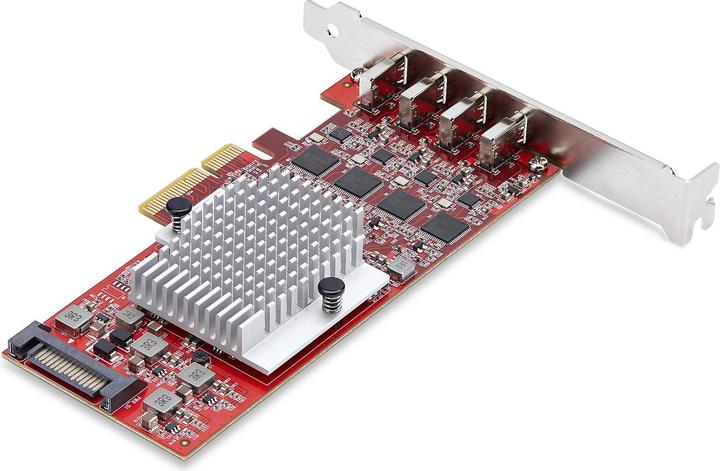

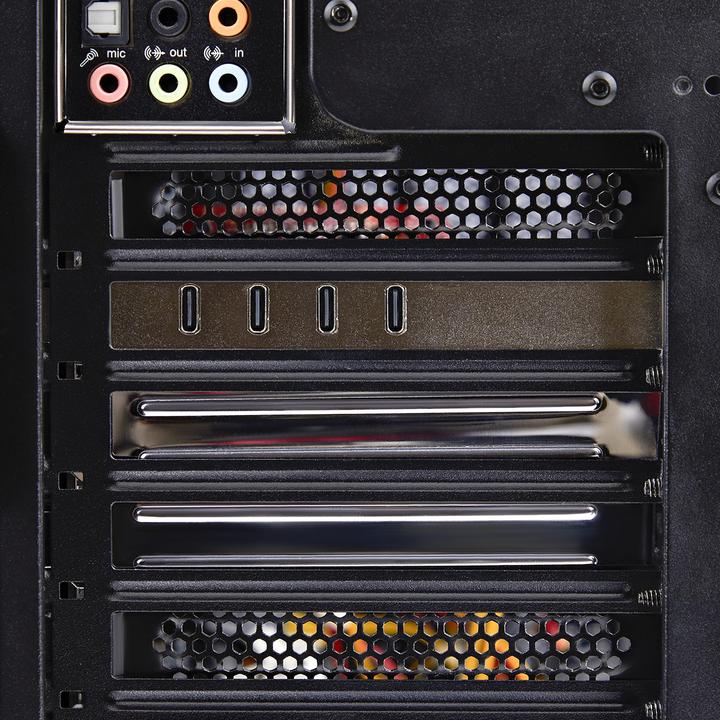

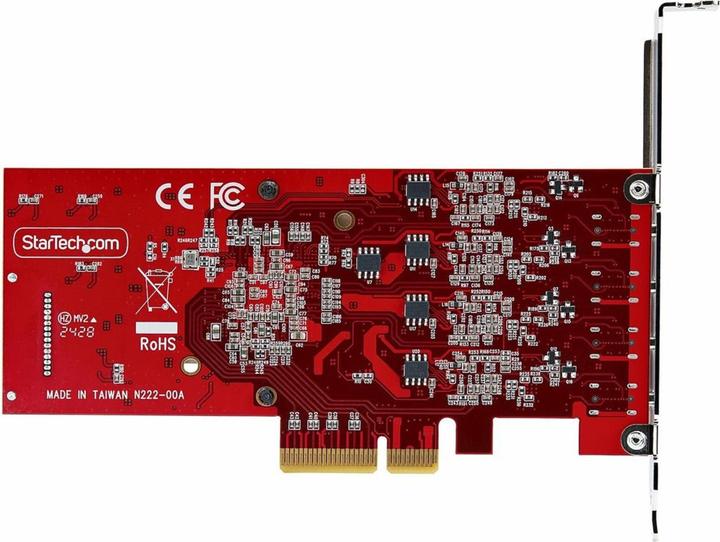

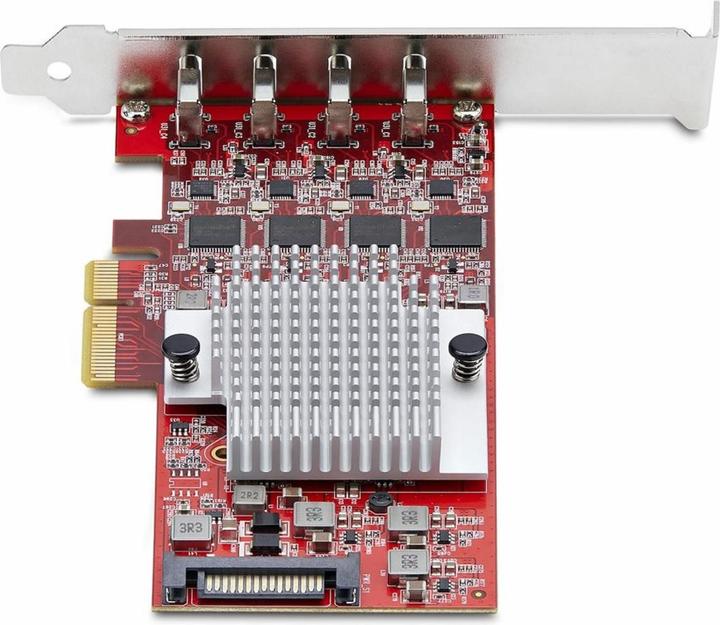

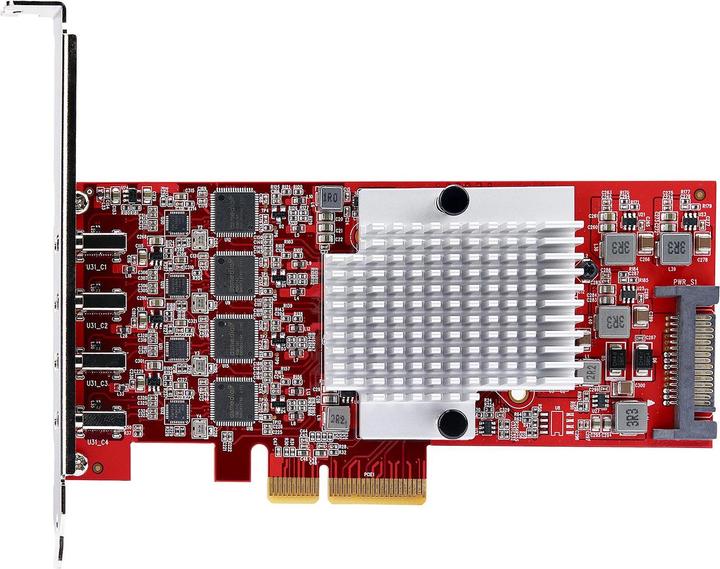

Add four 10Gbps USB Type-C ports to a server or desktop computer via PCI Express.

Expand the USB connectivity of a desktop computer or server with four external USB Type-C 10Gbps ports using this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

Conventional USB cards with a single controller share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card allows each port to achieve up to 10Gbps, avoiding bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, offloading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters such as 10G Ethernet copper or fiber adapters.

Charge and Sync USB Devices

This USB PCI Express card can deliver up to 5V 3A (15W) per USB-C port, allowing for the synchronization and charging of portable devices. If the motherboard cannot provide enough power, a built-in SATA power connector can supply the card with additional power.

Compatibility

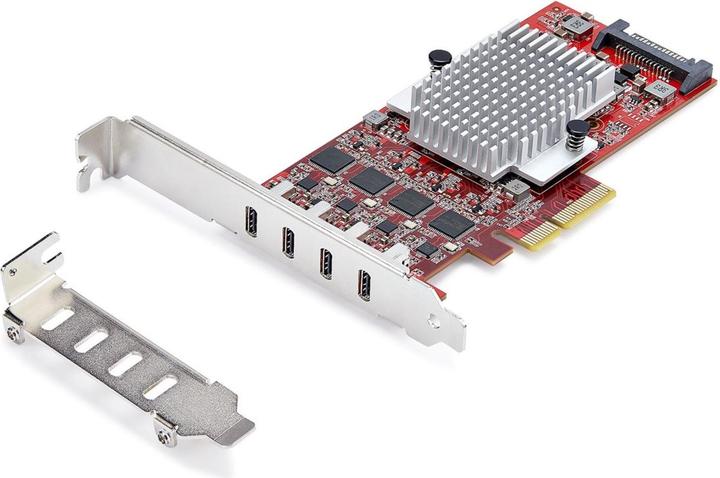

The PCI Express USB card is plug-and-play compatible with most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. Additionally, the USB expansion card comes with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.

Key specifications

Expansion card form factor
Low profile
USB ports
USB-C
Exact USB ports
USB-C 3.2 Gen 2 (4x)
Internal connection options
mSATA (1x)
Expansion slot
PCI Express x4 (1x)
Item number
59209031

General information

Manufacturer
StarTech
Category
Controller cards
Manufacturer no.
P10Q4C-USB-CARD
Release date
10.6.2025
Sales rank in Category Controller cards
65 of 703

Controller properties

Expansion card form factor
Low profile

Peripheral port

USB ports
USB-C
Exact USB ports
USB-C 3.2 Gen 2 (4x)

Internal interfaces

Internal connection options
mSATA (1x)
Expansion slot
PCI Express x4 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
120 g
Width
56.20 mm
Length
140 mm

Package dimensions

Length
17.70 cm
Width
14.60 cm
Height
3.50 cm
Weight
185 g
