StarTech 1 PORT RS232 SERIAL PCIE CARD

Ratings
BrandMore from StarTech
Delivered between Wed, 8.4. and Mon, 13.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

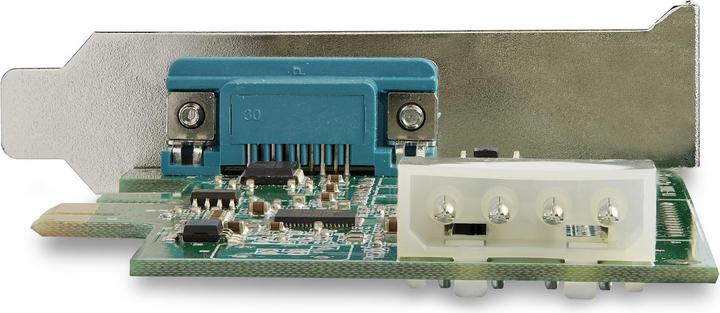

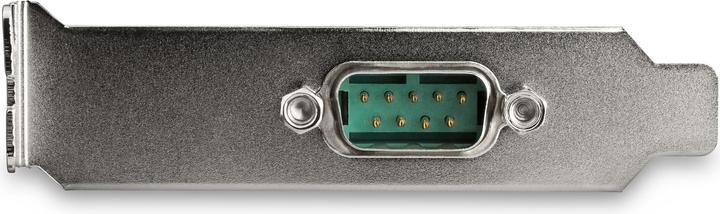

With this serial RS232 adapter card, you can add a serial RS232 DB9 port to your computer via a PCI Express (PCIe) slot. It enables interaction with serial devices such as card readers, printers, PIN pads, and modems at speeds of up to 921.4 Kbit/s.

Maximum Compatibility
Thanks to comprehensive OS support, including Windows and Linux, this interface card can be easily integrated into heterogeneous environments. The card comes pre-configured with a low-profile bracket and includes an optional full-profile bracket, allowing installation regardless of the case form factor.

Experience Optimal Technology
This PCI Express to serial adapter supports the following features:

  • Compatible with the industry standard 16950 UART
  • Supports a maximum baud rate of up to 921.4 Kbit/s
  • Provides an output voltage of 5/12 V on pin 9 when an external power supply is connected
  • 128-byte FIFO depth per transmitter and receiver
  • Supports 9, 8, 7, 6, or 5 data bits
  • Asix AX99100 chipset
  • PCI Express 1.1 compliant.

Key specifications

Expansion card form factor
Low profile
Data ports
RS-232 (1x)
Expansion slot
PCI Express x1 (1x)

General information

Item number
12504998
Manufacturer
StarTech
Category
Controller cards
Manufacturer no.
PEX1S953LP
Release date
9.12.2022
Sales rank in Category Controller cards
29 of 718
External links
Manufacturer's site (de), Manufacturer's site (de), Manufacturer's site (de)

Controller properties

Expansion card form factor
Low profile

Peripheral port

Data ports
RS-232 (1x)

Internal interfaces

Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
47.91 kg
Climate contribution
CHF 1.15

Product dimensions

Weight
44 g
Width
67 mm
Length
98 mm

Package dimensions

Length
17.30 cm
Width
14 cm
Height
3 cm
Weight
114 g
