Stahl Sicherheitsbarrieren 9001/01280085#158351

Stahl safety barriers 9001/01280085 Manufacturer: Stahl Designation: Safety barriers 1-channel Type: 9001/01280085 Type of power supply: Passive Rated supply voltage at AC: 0 V Rated operating frequency: 0 Hz Rated supply voltage at DC: 0 V Switching voltage: 0 V Switching current: 0 A Switching capacity: 0 VA Switching frequency: 0 Hz Number of channels: 1 Fault signal output: No Intrinsically safe according to EN 60947-5-6 NAMUR: No Galvanic isolation between inputs: No Galvanic isolation between input and output: No Galvanic isolation between output to output: No Galvanic isolation between supply voltage and all other circuits: No Suitable for safety functions: No SIL according to IEC 61508: Without Performance Level according to EN ISO 13849-1: Without Width: 12 mm Height: 103 mm Input voltage tolerance: 0 % Power consumption: 0 W Operating temperature: -20 to 60 °C Type of device: Built-in device Type of electrical connection: Screw connection Type of mounting: Snap-on mounting Mounting rail depth: 72 mm Protection class (IP): IP20

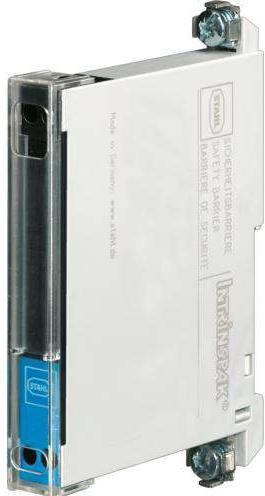

The single-channel INTRINSPAK safety barriers of the 9001 series enable intrinsically safe operation of almost all field devices. The extensive portfolio and combination of safety barriers cover a wide range of signals. The devices are characterised by high robustness and low space requirements. A convenient feature is the standardised back-up fuse for all variants. Single-channel safety barriers, explosion-protected, Type: 9001/01-280-085-101, Max. voltage Uo: 28 V, Max. fuse rating Voltage Uo: 28 V, Max. Current Io: 85 mA, Max. Power Po: 595 mW, Number of channels: 1, Potential: Positive potential, Application area (zones): 2, Gas explosion protection: II 3 (1) G Ex nA [ia Ga], Dust explosion protection: II (1) D [Ex ia Da] IIIC, Rated operating voltage DC: 24 V, Max. output current Imax: 64 mA. EAN: 4046827025006.
