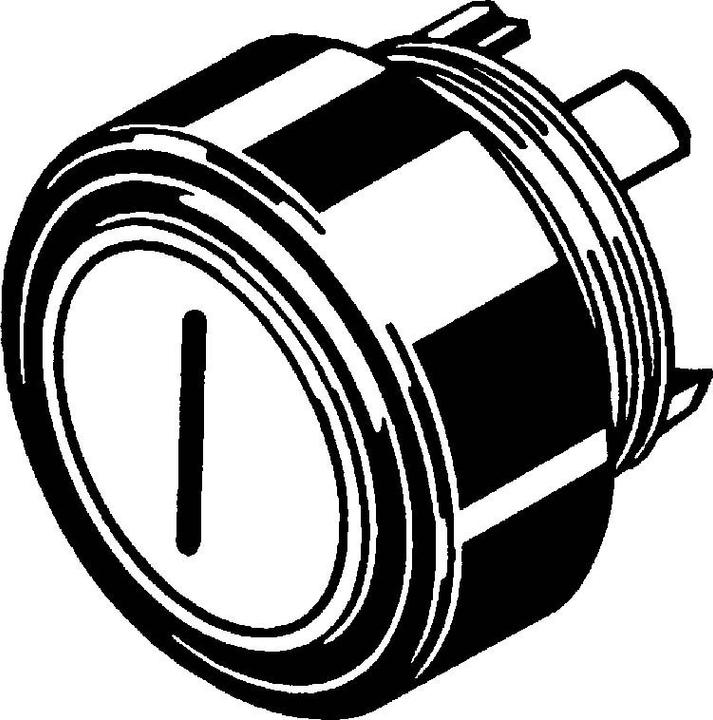

Stahl Ex push button pres.

Steel Ex pushbutton pres. 8602A0001-2 Manufacturer :Steel Designation :Ex pushbutton pres. 8003 Type :8602A0001-2 Colour of button :black Lens design :round Hole diameter :30.5 mm Width of opening :38 mm Height of opening :8.3 mm Design of button :high Suitable for lighting :no With protective cover :no Switching function latching :no Push-button :yes With front ring :yes Material of front ring :plastic Colour of front ring :black Protection class (IP), front :IP66 Protection class (NEMA), front :4X steel Ex push-button prefix. 8602A0001-2: further details Pushbutton -, explosion-proof, Type: 8602A0001-2, Housing material: Polyamide, Gasket: Standard, Mounting: with snap-in hook, Application area (zones): 1 , 2 , 21 , 22, Gas explosion protection: II 2 G Ex eb IIC Gb, Dust explosion protection: II 2 D Ex tb IIIC Db, Ambient temperature min.: -20 °C, Ambient temperature max.: +70 °C, Protection class (IP): IP66, For further info see: r-stahl.com Webcode 8602B , EAN: 4046827023279.
