Stahl 128248 8008/2-002 Control switch
Delivered between Thu, 11.6. and Thu, 25.6.
free shipping
Product details

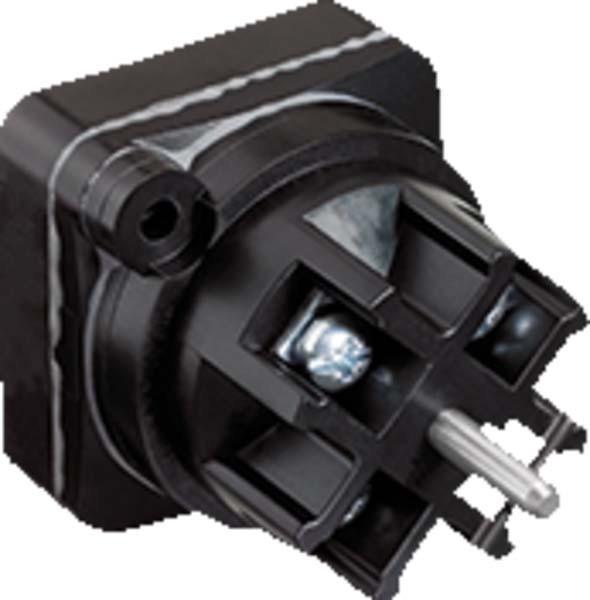

The 128248 8008/2-002 control switch from Stahl is an explosion-proof push button and switch designed for use in demanding environments. With a rated operating voltage of up to 690 V and a rated operating current of 16 A, this control switch delivers reliable performance across various applications. The epoxy resin housing provides high resistance to environmental influences, while the silver-nickel contact material ensures excellent conductivity. The control switch is suitable for use in Zones 1 and 2 and meets the requirements for gas explosion protection according to II 2 G Ex db eb IIC T6. With a wide temperature range of -50 °C to +60 °C, it is versatile and offers high operational safety.
- Explosion-proof for Zones 1 and 2
- High-quality epoxy resin housing
- Silver-nickel contact material for optimal conductivity
- Operating temperature range of -50 °C to +60 °C
- Suitable for single and multi-stranded connection cross-sections.
Switch + button type | Load switch |
Mounting type | Built-in installation |
Item number | 32103508 |
Manufacturer | Stahl |
Category | Buttons + Switches |
Manufacturer no. | 128248 |
Release date | 16.11.2022 |
Material group | Plastic |
Material | Epoxy resin, Silver-nickel |
Switch + button type | Load switch |
Number of actuation levels | 2x |
Mounting type | Built-in installation |
Number of poles | 2x |
Nominal voltage | 690 V |
Nominal current | 16 A |
Protection type (IP code) | IP00 |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
