Ssupd Riser ribbon cable - PCIe 4.0, 430mm, black

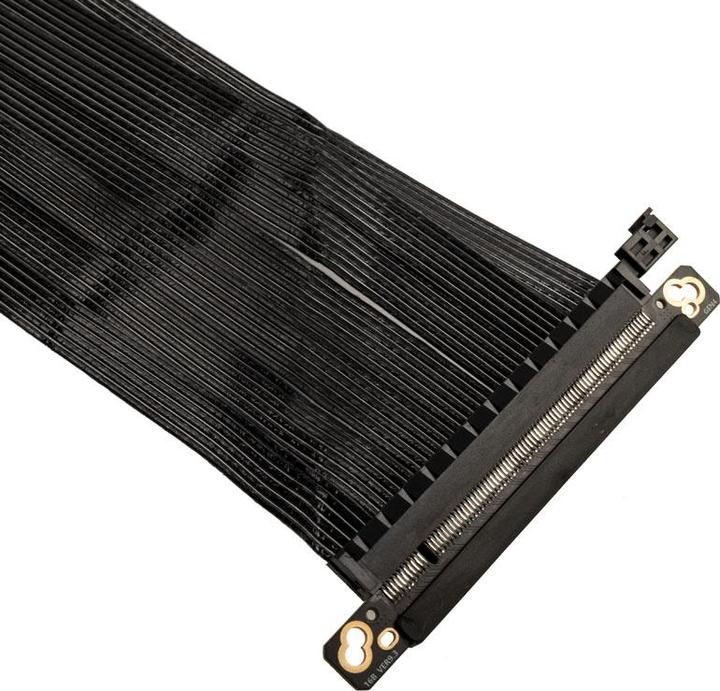

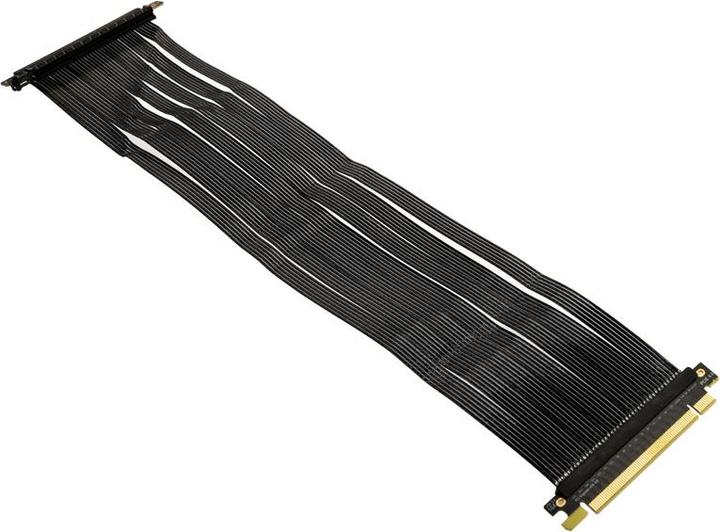

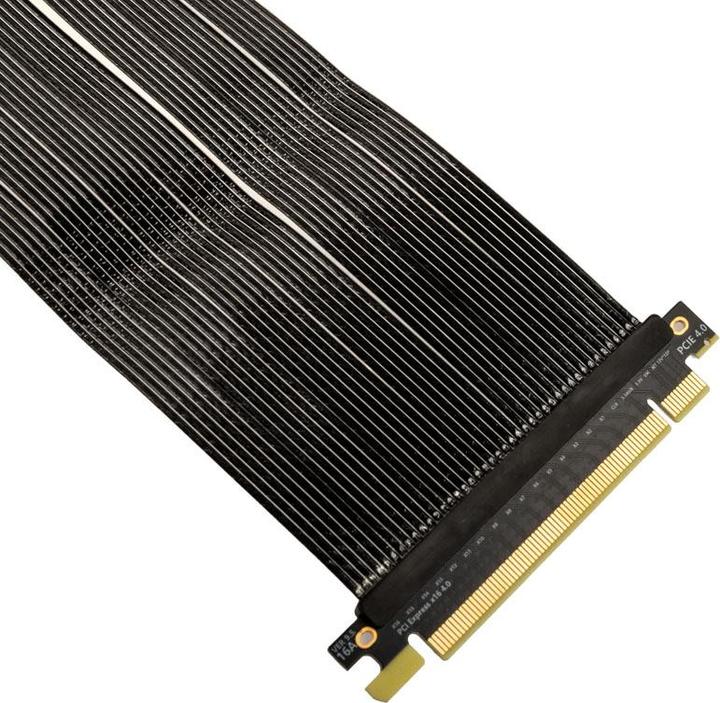

With this riser card and cable, you can strategically position the PCI Express x16 slot available on a motherboard with PCIe 4.0 standard elsewhere inside or outside the case. This is particularly useful if you frequently want to install and remove different graphics cards without damaging the board slot or if you desire more space when installing expansion cards.

In modding projects or in cases that deviate from the standard ATX format, it may be necessary or beneficial to place PCI Express expansion cards in unconventional locations. A significant advantage of a riser card is the ability to position graphics cards individually and even mount them parallel to the motherboard. This riser card from Ssupd is especially suitable for installing a graphics card in the Meshroom case series from Ssupd. It is approximately 430 mm long.

Technical details:

• Length: approx. 430 mm
• Connections:
• Connector: PCIe with 16 lanes
• Socket: PCIe with 16 lanes
• Supported PCI Express standards: 1.x, 2.x, 3.0, 4.0.
